implement
Implement setup is used to establish the various settings
associated with straight mode, spreader mode or staggered mode.
For detailed setup instructions, refer to the Implement chapter in
this manual.
Settings will vary depending on if a SmartCable or Section Driver
Module (SDM) is present.
Implement type
Implement type selects the type of application pattern that most
closely represents your system.
● In Straight mode – the boom sections have no length and
are on a line a fixed distance from antenna
● In Spreader mode – a virtual line is created in line with the
delivery disks from which the application section or sections
can vary in length and can be at different distances from the
line
● In Staggered mode – a virtual line is created in line with
Section 1 from which the application section or sections
have no length and can be at different distances from
antenna

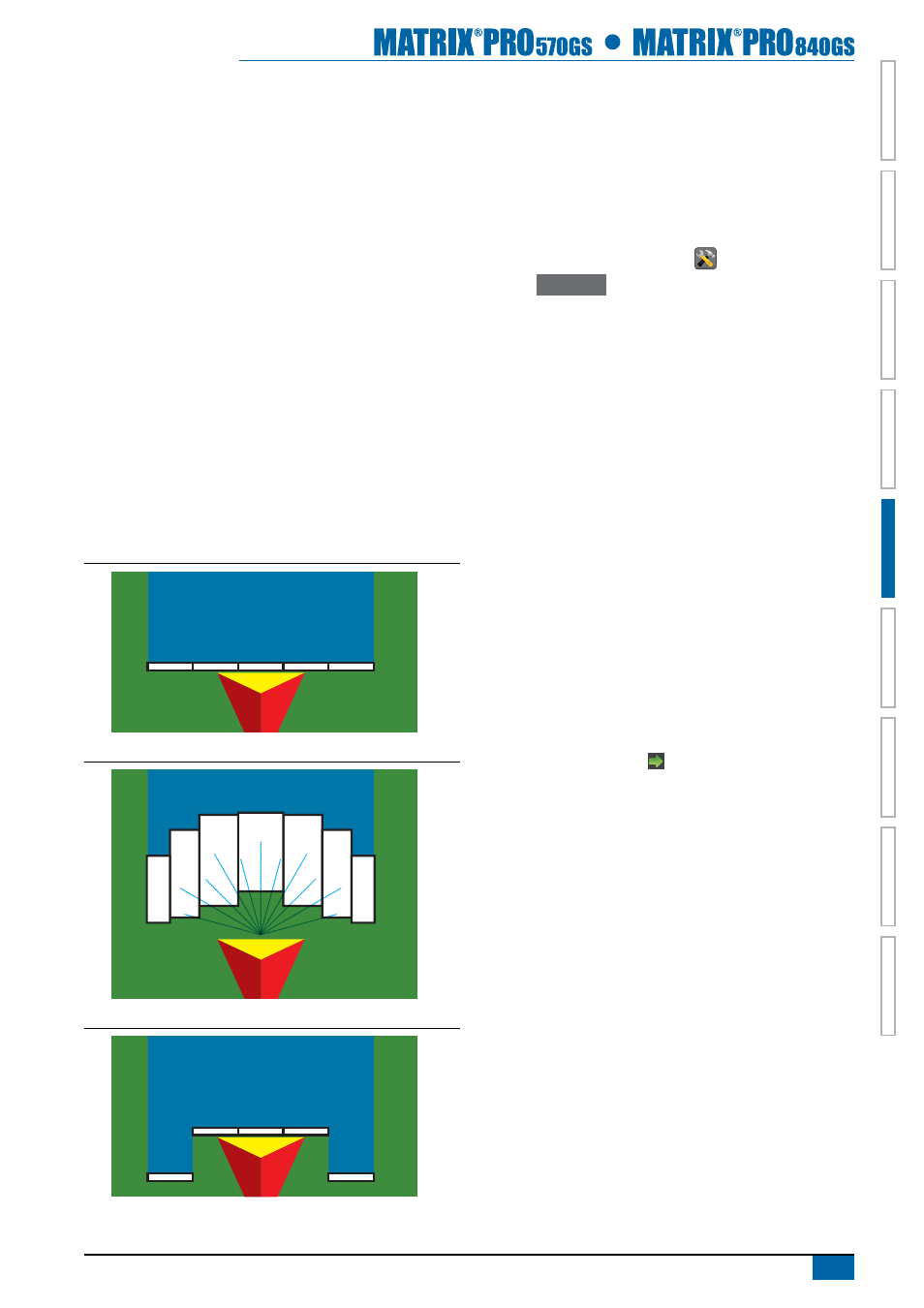

Figure 5-4: Implement type - Straight
Figure 5-5: Implement type - Spreader
Figure 5-6: Implement type - Staggered
Single section setup
Single section setup is used when a SmartCable or Section Driver
Module (SDM) is not on the system. The entire boom or delivery
area is considered to be one section.
NOTE: If a SmartCable or Section Driver Module (SDM) is
present, refer to "SmartCable or Section Driver Module
setup" to view setup steps.
1. Press CONFIGURATION side tab .
2. Press
Implement
.
3. Select from:
►Machine type – used to select the type of machine that
most closely represents your machine.
►GPS antenna height – used to measure the height of the
antenna from the ground
►Implement type – used to select the layout of the sections
for the applied product location.
►Implement offset distance – used to enter the distance from
the centreline of the machine to the centre of the implement
►Implement offset direction – direction from the centreline of
the machine to the centre of the implement while facing in
the machine's forward direction
►Guidance width – used to enter the distance between the
guidelines
►Application width [Straight implement type] – used to enter
the total width of the implement
►Working width [Spreader implement type] – used to enter
the total width of the implement
►Applied area alarm – used to establish an alert to signal
when exiting or entering an applied area
4. Press NEXT PAGE arrow to set up the selected specific
implement type's options.
