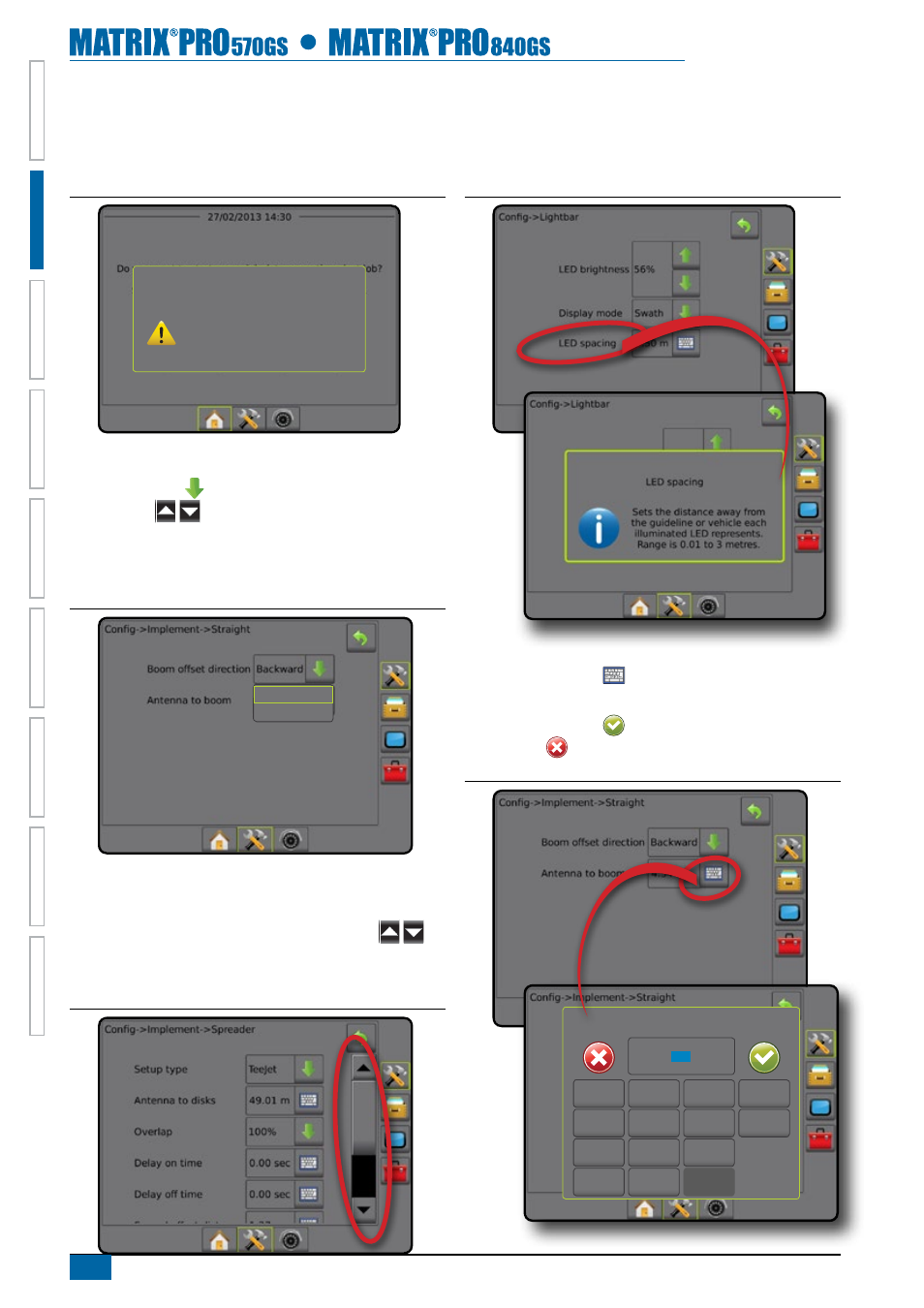

Warnings and information pop-ups
A pop-up warning or information box will be displayed for
approximately five (5) seconds. To remove the information box, tap
anywhere on the screen.
Figure 2-6: Information screens
dimming backlight brightness to
reduce heat. Previous backlight
brightness will be restored when
unit reaches a safe temperature.
Overheat Protection
Drop-down menu selections
Press DOWN arrow to access the options. Use the UP/
DOWN arrows or slide bar if necessary to scroll through
the extended list. Select the appropriate option. To close the list
without selecting an option, tap anywhere on the screen outside
the drop-down menu.
Figure 2-7: Example of drop-down menu
Backward
forward
Scrolling screens
Some screens have more information or options that are visible
beyond the current screen. Use the UP/DOWN arrows or
slide bar to access additional options or information not currently
visible on the screen.
Figure 2-8: Example of scrolling screen
Setup option information
Press the option’s icon or option’s name of any menu item to
display a definition and range values of that item. To remove the
information box, press anywhere on the screen.
Figure 2-9: Example of information text box
Keyboard entry screen
Press the KEYPAD icon . Use the numeric keypad to
enter a value.
Press the ACCEPT icon
to save the settings or the
CANCEL icon to leave the keypad without saving.
Figure 2-10: Example of keyboard
antenna to boom (m)
1 2 3
4.30
Clear
4 5 6 <--
7 8 9
0 . +/-
