Straight implement type
1. Select Straight implement type on implement screen.
2. Press NEXT PAGE arrow .
3. Select from:
►Boom offset direction – used to select whether the boom is
located in front of or behind the GPS antenna as the vehicle
moves in a forward direction
►Antenna to boom distance  – used to enter the distance
from the GPS antenna to the boom. Range is 0.0 to
50.0 metres.
4. Press RETURN arrow to return to the implement screen
or CONFIGURATION side tab to return to the main
configuration screen.

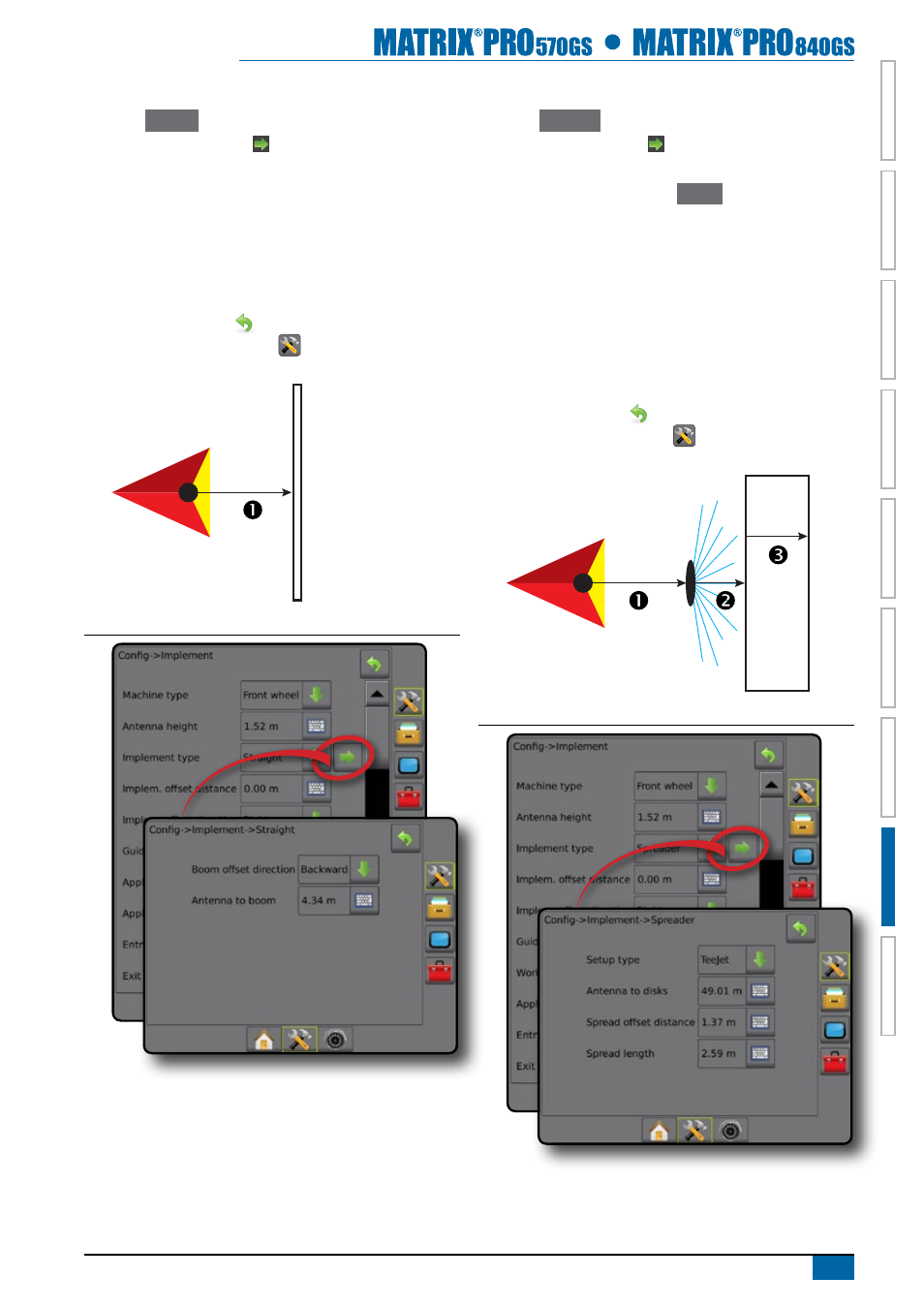

Figure 8-10: Implement setup options in straight mode
TeeJet spreader implement type
1. Select Spreader implement type on implement screen.
2. Press NEXT PAGE arrow .
3. Select from:
►Setup type – used to select
TeeJet
spreader type
►Antenna to disks  – used to enter the distance from the
GPS antenna to the delivery disks or dispersal mechanism.
Range is 0.0 to 50.0 metres.
►Spread offset distance  – used to enter the offset
distance from the disks, or dispersal mechanism, to
where product initially hits the ground. Range is 0.0 to
75.0 metres.
►Spread length  – used to enter the length of application
for the section. Range is 0.0 to 75.0 metres.
4. Press RETURN arrow to return to the implement screen
or CONFIGURATION side tab to return to the main
configuration screen.
Figure 8-11: Implement setup options in TeeJet spreader mode
