Programming

151274-L8

7-2

7.2.1

Edit Modules

The features that can be edited when this option is selected are, module name, and class of wiring (Class A or
Class B).

To edit an existing module, follow these steps:

Enter the installer code.

Select 7 for Program Menu.

Press 1 to enter module menu.

Press 1 to edit a module.

Use the

arrow to select the module you wish to edit.

7.2.1.1

Naming Modules

You can assign an English name to a system hardware module to make it easier to recognize on a display.

If you wish to edit the modules name press the

arrow to select each character for the modules

name (or press

to bypass name edit).

Press the

to move to the next character.

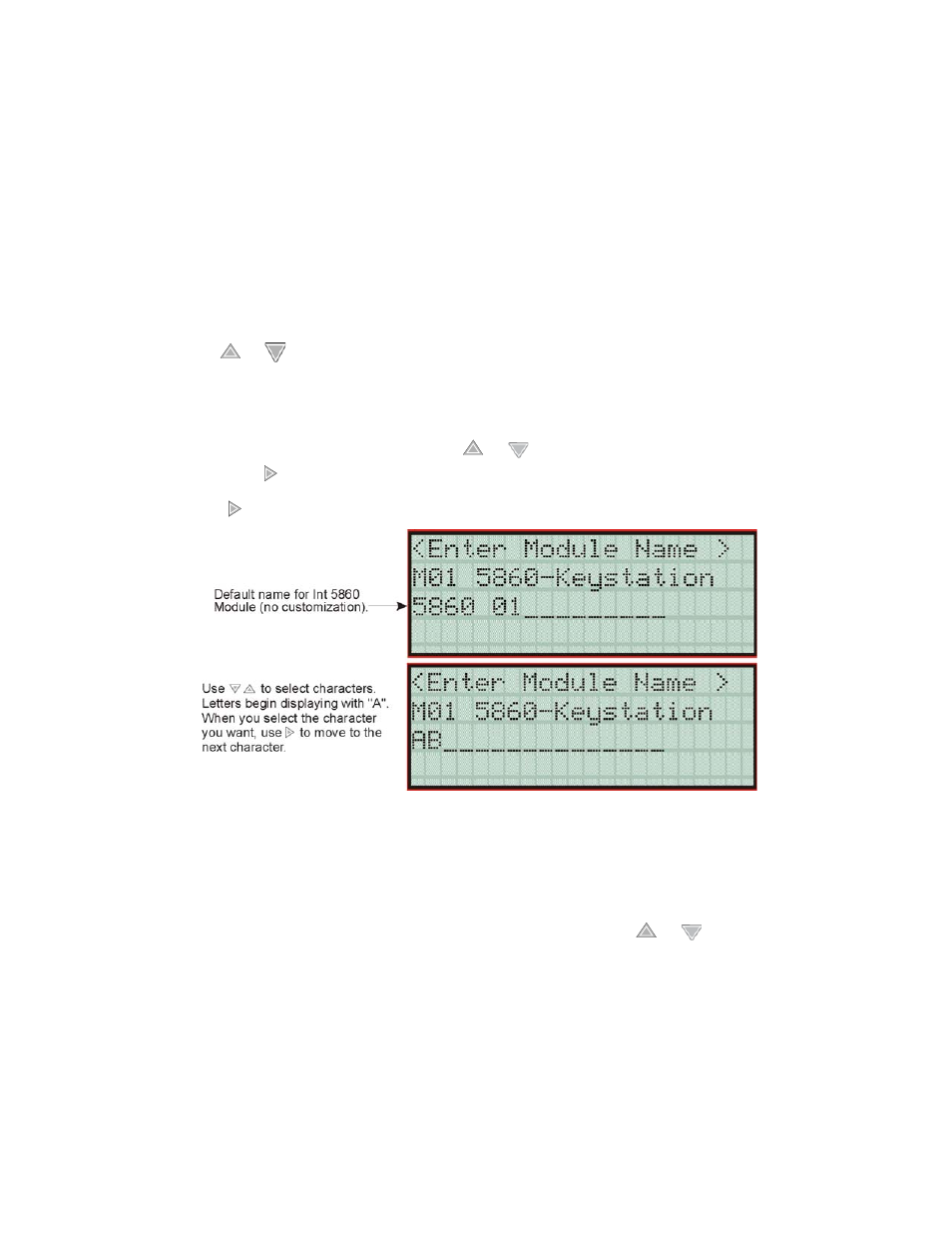

Figure 7-1 Edit module Name Programming Screen Example

7.2.1.2

Module, Wiring Class

This option applies only to the SLC loop. Each module has a unique set of option that specifically applies to the
functionality of the module being edited.

Choose the class of wiring you wish to use for this module by pressing the

arrow, then press

ENTER

7.2.2

Adding a Module

If you need to add a new hardware module to the system, follow these steps.

You must be in the Main Menu to perform this task. If necessary, enter the Installer Code.

Enter the installer code.
