5865-3 / 5865-4 LED Annunciator Installation

The 5865-3 and 5865-4 are LED annunciators. The 5865-4 has 30 mappable LEDs, remote silence and reset key
switches, and a general system trouble LED. The 5865-3 has 30 mappable LEDs only. These are arranged as 15
pairs of red (typically used for alarm) and yellow (typically used for trouble) LEDs.

Installation of the 5865-3 and 5865-4 is identical. The key switches and the trouble LED follow the behavior of
other system annunciators and do not require any installation steps. The following sub-sections describe how to
install the 5865-3 and 5865-4 hardware. Refer to Section 6 for programming information.

Note: This manual uses “5865” when referring to aspects of the 5865-3 and 5865-4 that are common to both

models.

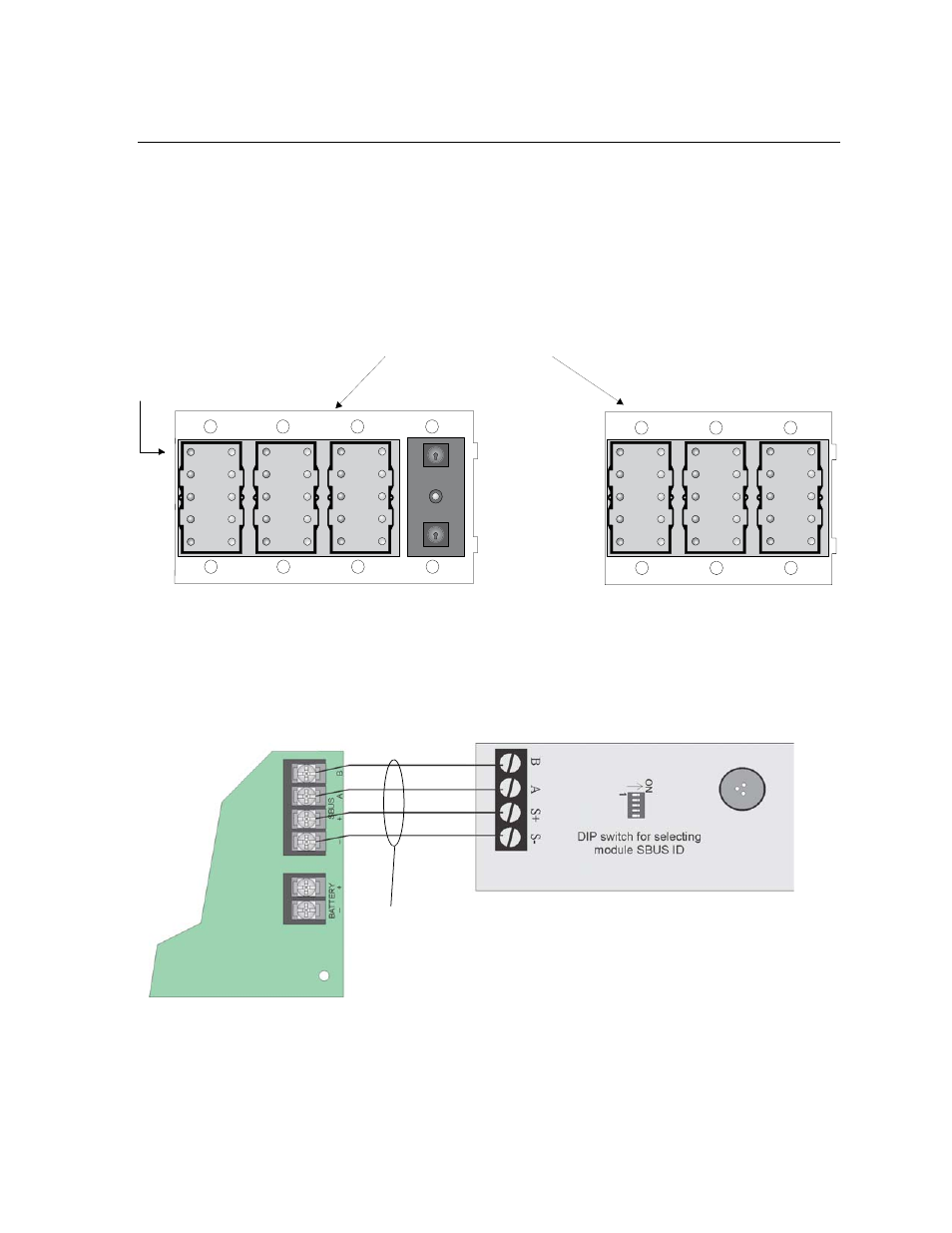

Figure 4-21 5865-3 and 5865-4 Assembly (front view)

4.8.1

FACP Connection

The 5865 connects to the panel via the SBUS. Make connections as shown in Figure 4-22. After the 5865 is
connected to the panel, it must be added to the system. This programming step is described in Section 4.9.

Figure 4-22 5865 Connection to the FACP

SILENCE

TROUBLE

RESET

5865-4 Board Assembly

5865-3 Board Assembly

Plexiglass plate mounted to LED board at factory.

Do not remove.

5865-4 switches
follow main FACP;
no installation
or programming
required.

Numbers indicate
point numbers for
5865. (They do
not appear on board
assembly.)

Supervised
Power Limited
Class B
