IntelliKnight 5808 Installation Manual 151274-L8
4-13
5. Connect a printer to the 5824 as shown in Figure 4-15.

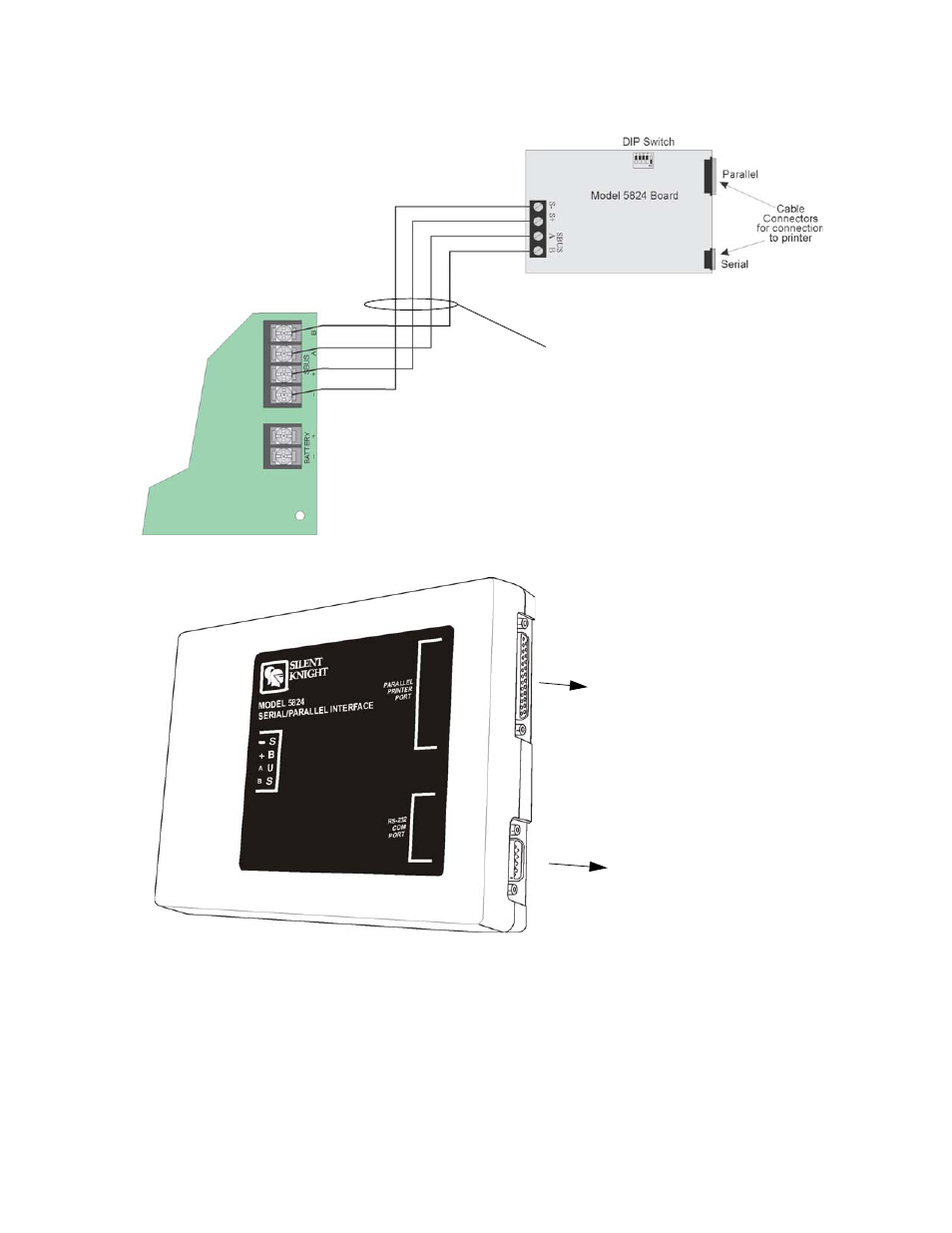

Figure 4-14 5824 Connection to the Panel
Figure 4-15 Printer Connection
4.6.1 Selecting 5824 Options
Configuring the 5824 includes the following steps:
• Add the module to the system. JumpStart will add the module automatically (see Section 6.1). You can also
add it manually (see Section 7.2.2).
Supervised
Power Limited
Class B Wiring
To Serial Printer
To Parallel Printer
