Control Panel Installation

151274-L8

4-20

4.9

Configuring Modules

This section describes how to configure any system hardware modules that have been added to the system.

4.9.1

Assigning Module IDs

When installing a hardware module (such as, 5824, 5860, 5496, 5865-3 or 5865-4), you must use the DIP
switches on the module to assign an ID# to the module.

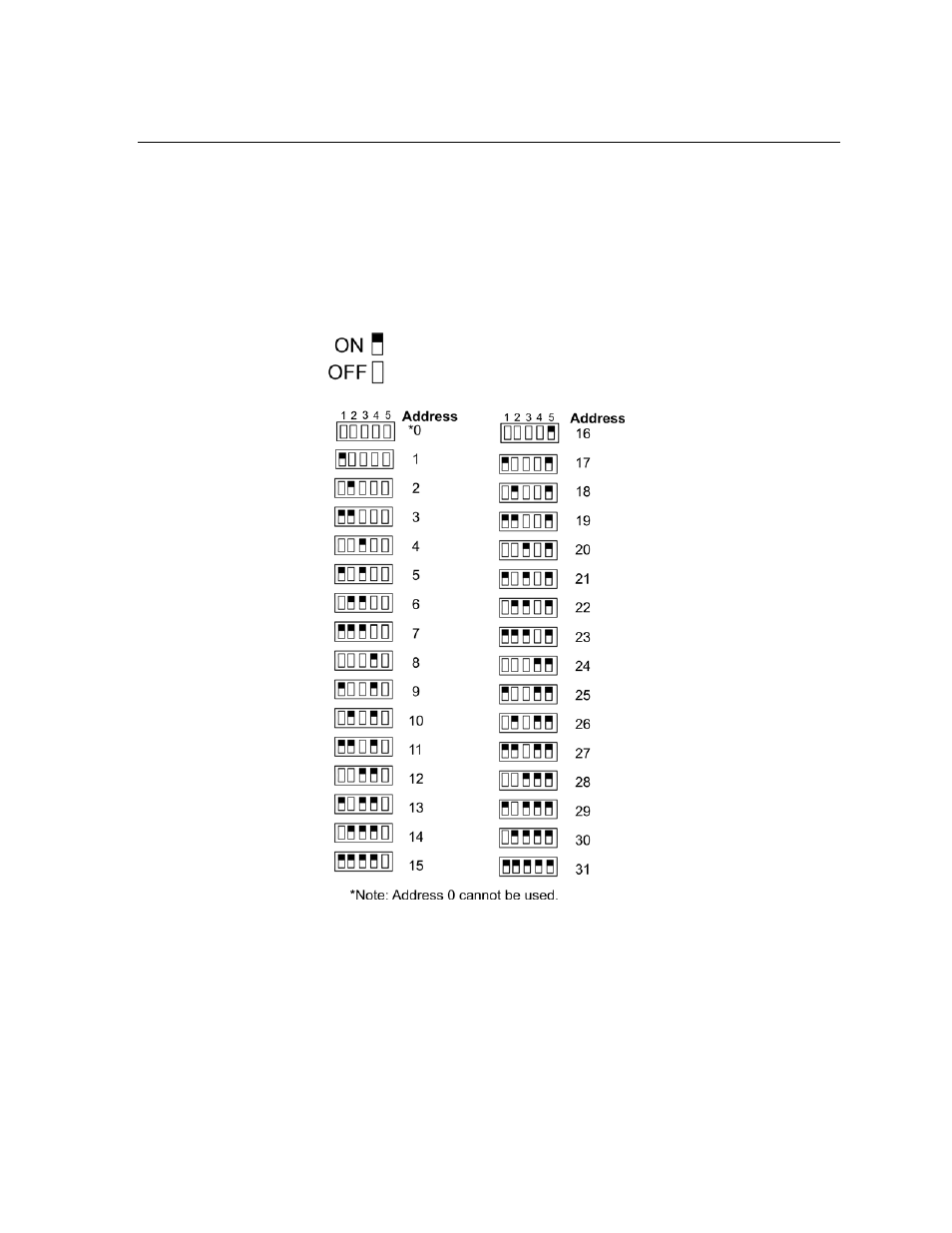

Figure 4-25 shows all possible DIP switch positions and their correlation to a numerical ID. For example, to
select ID 2, place DIP switch 2 in the up position.

Figure 4-25 Possible module addresses
