4.10 Telephone Connection
Connect the telephone lines as shown in Figure 4-26. The Model 7860 phone cord is available from Silent Knight
for this purpose.
A number of programmable options are available for customizing telephone lines. These options are described in
Section 7.6.

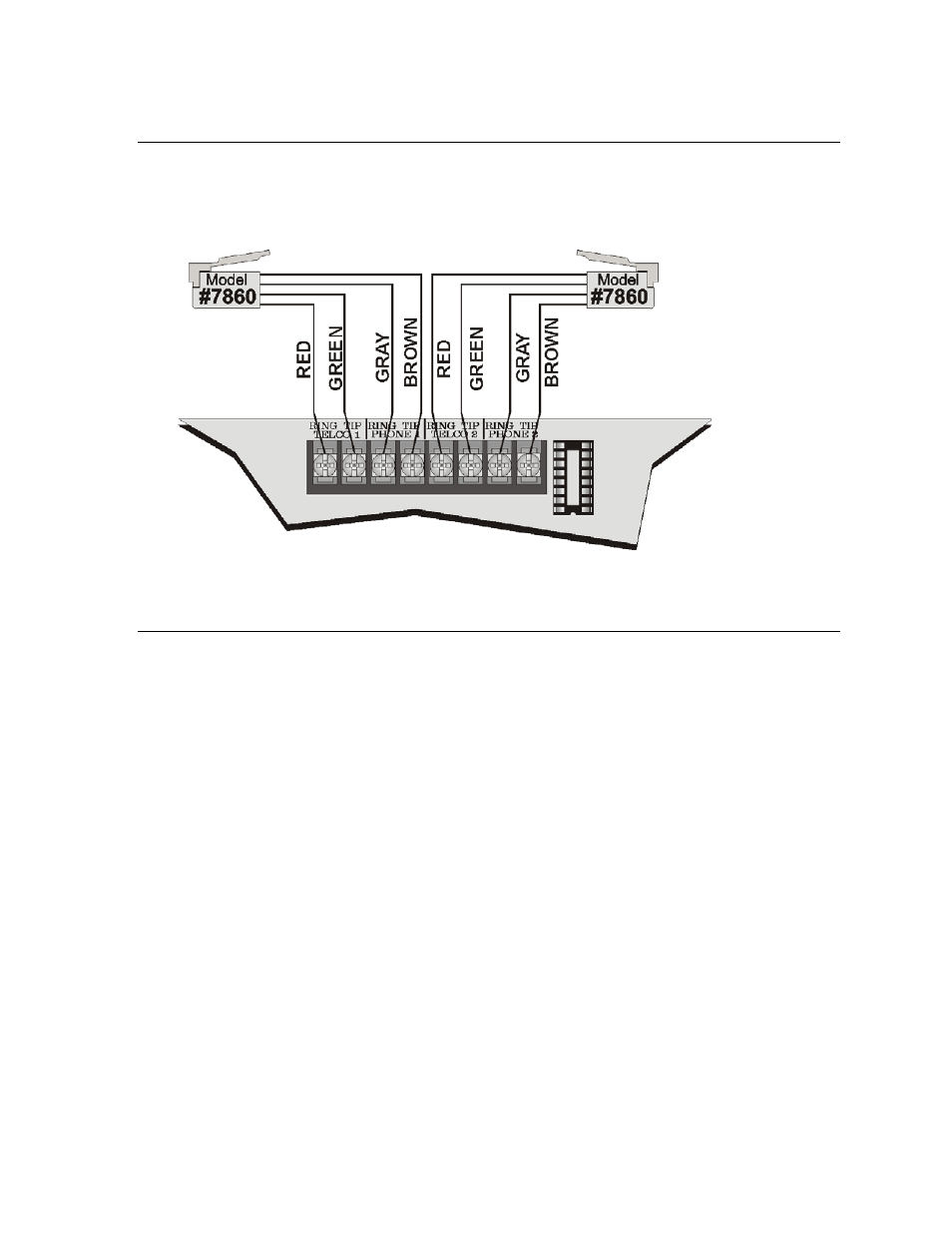

Figure 4-26 Connection of Telephone Lines
4.11 Notification Appliance/Auxiliary Power Circuits
Note: These circuits are considered regulated unless used for releasing type service, in which case they are con-
sidered special applications.
Four outputs are built-in to the 5808 FACP which can be programmed to be used as NACs (Class A or Class B)
or as Aux power.
This section of the manual explains how to install conventional notification appliances and how these terminals
can be used for auxiliary power.
4.11.1 Conventional Notification Appliance
This sub-section of the manual explains how to install conventional notification appliances for Class A (Style Z)
and Class B (Style Y) configurations.
4.11.1.1 Class B Notification Wiring
You must use an appliance from the list of compatible appliances in Appendix A.
To install a Class B notification appliance circuit:
1. Wire Class B Notification appliances as shown in Figure 4-27.
2. Configure the circuit through programming (see Section 7.5).
Supervised
