1 input point mapping, 1 input point mapping -5 – SilentKnight 5808 User Manual
Page 74
IntelliKnight 5808 Installation Manual
151274-L8
6-5
6.2.1
Input Point Mapping
Input points are assigned to input zones. Any input point can be assigned to any input zone. (Input points can be
assigned to one zone only. An input point can be designated as "Unused," which means it has not been assigned
to a zone.)

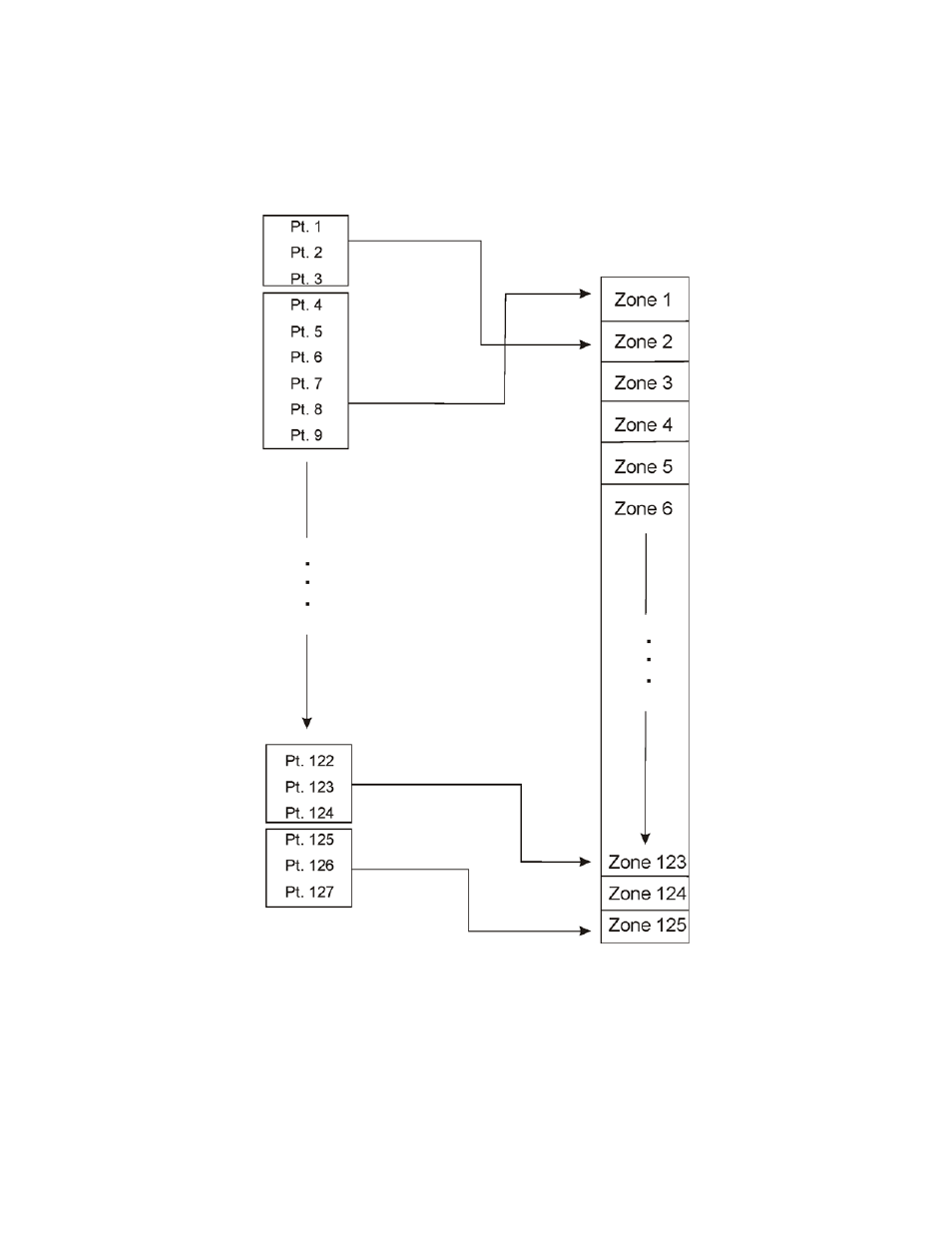

Figure 6-2 Input Point Assignment Example
