Select a name, if desired (see Section 7.2.1.1).
•
Select options for the printer and the output port. See below.
Printer and Output Port Options
The printer is for ancillary use only.
1.
From the Main Menu, select 7 for Program Menu.
2.
Select 1 for Module.
3.
Select 1 for Edit Module.
4.
From the list that displays, select the 5824 module you want to configure.
5.
Press
ENTER
to bypass the next two screens. A screen similar to the one shown in Figure 4-16 will display.

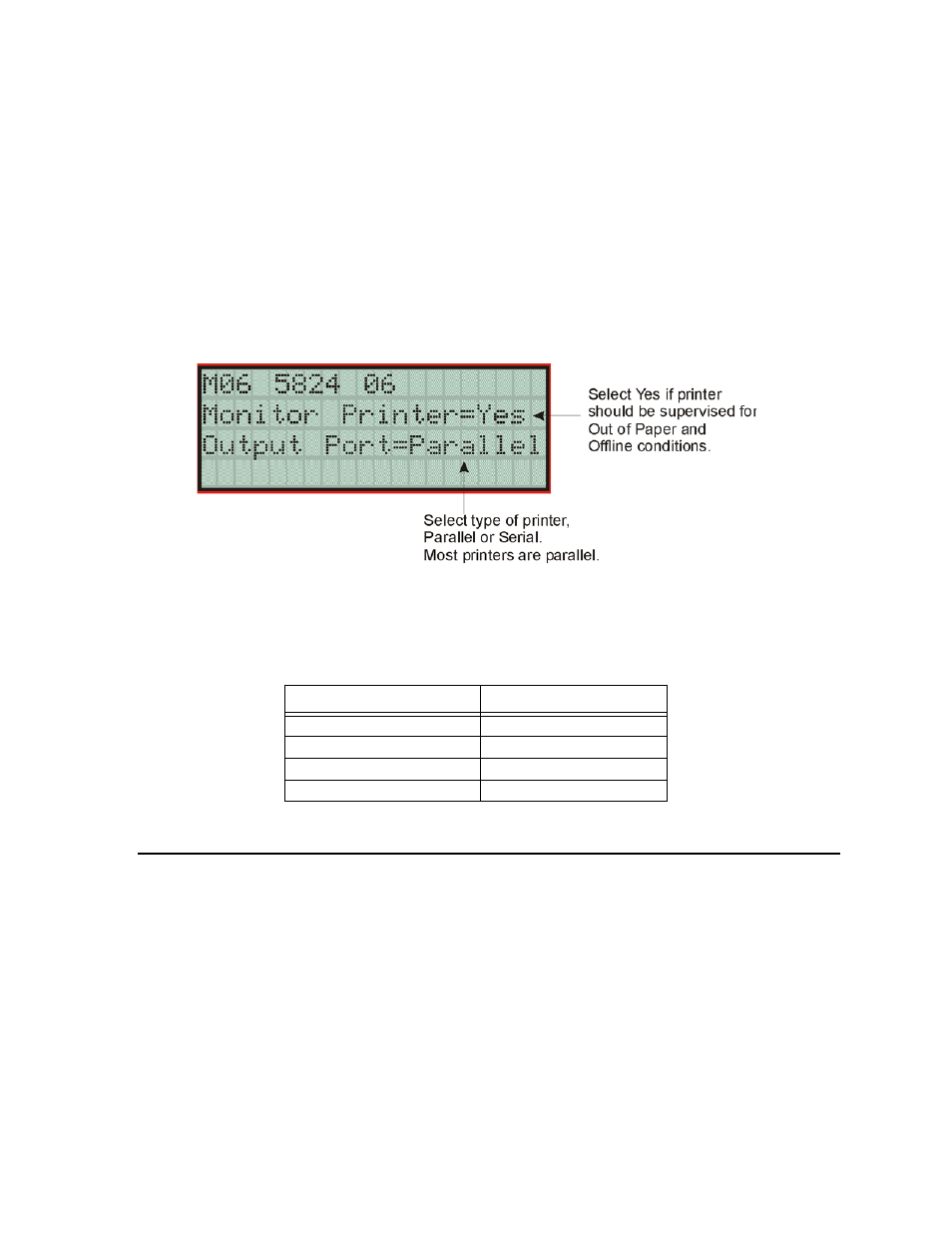

Figure 4-16 Selecting Printer and Output Port Options
6.
Select options for the printer as needed for your installation. Most printers are parallel.
7.
If you are using a serial printer, use the next screen to select serial port options as required for your printer.
Refer to your printer manual if you need more information.
4.7
5880 LED I/O Module
The 5880 is an LED driver board that can be used in a wide variety of applications, including as an interface with
most customized floor plan annunciator boards. The 5880 can drive up to 40 LEDs and has one PZT controller.
The 5880 also has eight inputs for dry contact monitoring. The following sub-sections describe hardware
installation. Refer to Section 6 for programming information.
4.7.1
5880 Board Layout
Figure 4-17 is a picture of the 5880 board showing locations of screw terminals for connection to the panel and
contact monitor wiring; pin connectors for connecting LEDs; and the DIP switch for selecting an SBUS ID
Option
Choices
Baud Rate:
75 - 19200
Data Bits:
5 - 8
Stop Bits:
.5, 1, 2
Parity:
None, Even, Odd
