Page 38
IntelliKnight 5808 Installation Manual
151274-L8
4-9
4.5.1
Mounting the 5860
This section of the manual describes mounting the remote annunciator. The annunciator can be flush- or surface-
mounted.
Figure 4-9 shows the parts of the annunciator. Instructions for disassembling and mounting appear on the
following pages.

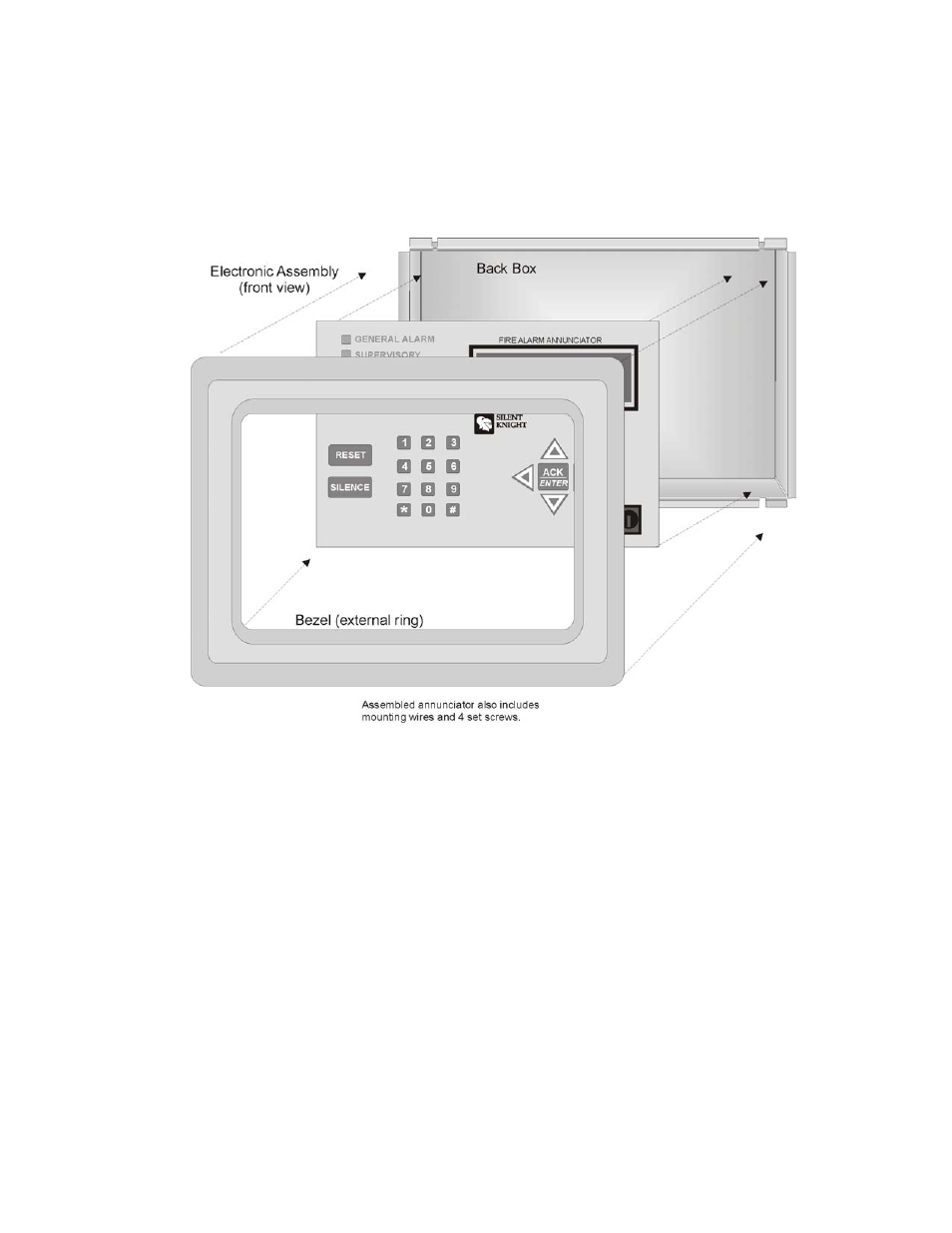

Figure 4-9 Annunciator Parts
The 5860 comes from the factory fully assembled. You must disassemble it for mounting. To disassemble the
annunciator, use a 5/64 hex wrench to remove the set screws, located on the bottom of the annunciator bezel.
