KTD-405 keypad
144
TruVision NVR 50 User Manual

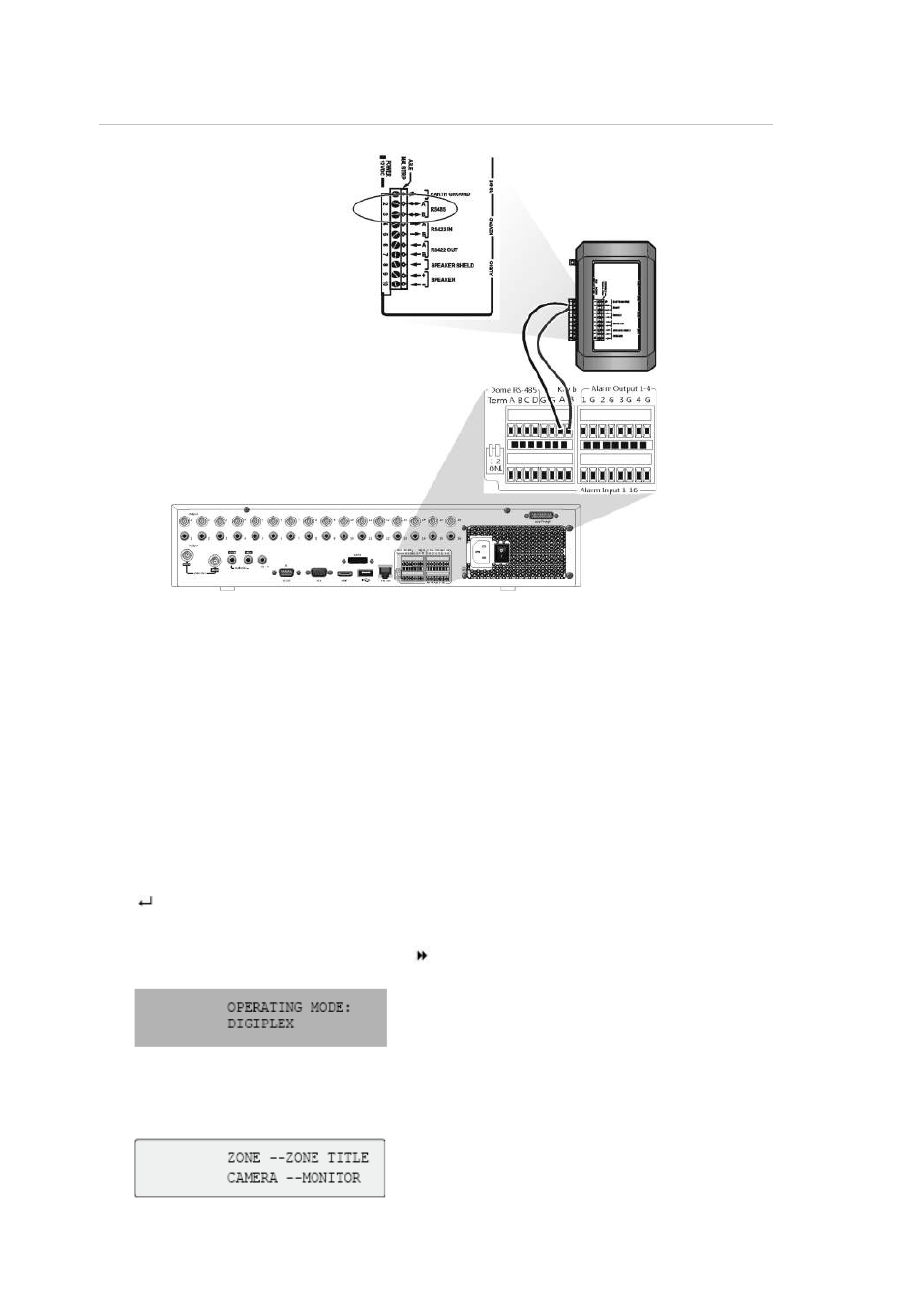

Figure 40: Keypad and NVR connections
I/O box
Back panel of
TVN 50
Setting up the keypad to work with the
TVN 50
The keypad must be in zone mode to connect correctly with the TVN 50.
Further information on connecting and programming the KTD-405 keypad can be
found in the user manual.
To set the keypad in zone mode:
1. Log into the keypad using the Admin password. Hold down the Enter button
(
) until a beep sounds and then enter the following code:
1 4 7 6.
Push
the
seq
button to confirm.
2. Scroll through the menus with the
button until this menu appears:
3. Change Operating Mode to Zone by moving the joystick down.
4. Quit the menu by pressing the
seq
button. The display will show, for example:
