Dakota Ultrasonics
88
transducer in the same location. This will help to eliminate any potential
measurement errors caused by changing the sound path.
16) Press the ENTER key and the Ultrasonic Length of the bolt will be
displayed.
Note: Alternatively, the Auto Set key can be pressed to activate the Auto
Set routine.
17) Calculate the correct velocity using the following equation:
ocity CorrectVel ocity CurrentVel
Length Ultrasonic
ngth PhysicalLe
=
*

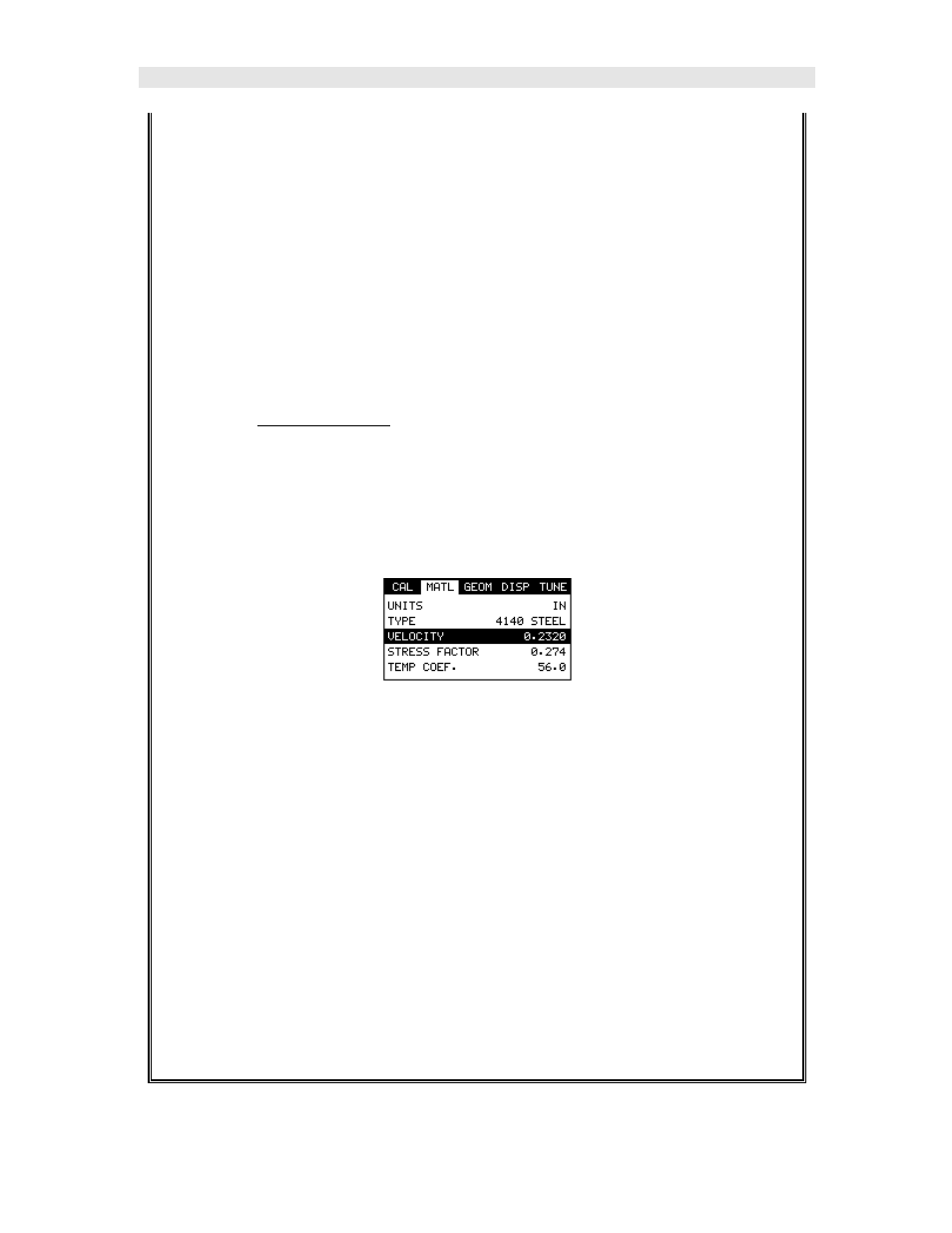

18) Press the MENU key multiple times to tab right, and the ESC key
multiple times to tab left, until the MATL menu is highlighted and
displaying the submenu items.
19) Use the UP and DOWN arrow keys to scroll through the sub menu
items until VELOCITY is highlighted.
20) Press the ENTER key to display the Digits Edit Box.
Note: Enter the Correct Velocity calculated above.
21) Press the UP and DOWN arrow keys to scroll the highlighted value.
22) Press the LEFT and RIGHT arrow keys to scroll the digit locations.
23) Repeat steps 21 & 22 until the VELOCITY value is correctly displayed.
24) Press the OK key to set the Velocity and return to the menu screen, or
ESC to cancel entering the Velocity.
