Starting delay

The starting

DELAY, or starting length, is the value displayed on the bottom

lower left side of the display in both

RF and RECT (Rectified) views. The DELAY

will also be represented in the

DIGITS (Scan Bar) view, as the length. The

starting length is the minimum length that can be viewed on the display.

Note: Once the range is set, it will remain the same for all the views
respectively.

The procedures to adjust the

Delay are outlined below:

Adjusting the Delay using the Hot Menus

1) Press the

MEAS key once to activate measure menu items. Press the

MEAS key multiple times to move right and the ESC key multiple times

to move left, until the

DELAY cell is highlighted.

2) Press the

UP, DOWN, LEFT, and RIGHT arrow keys to scroll the

highlighted value.

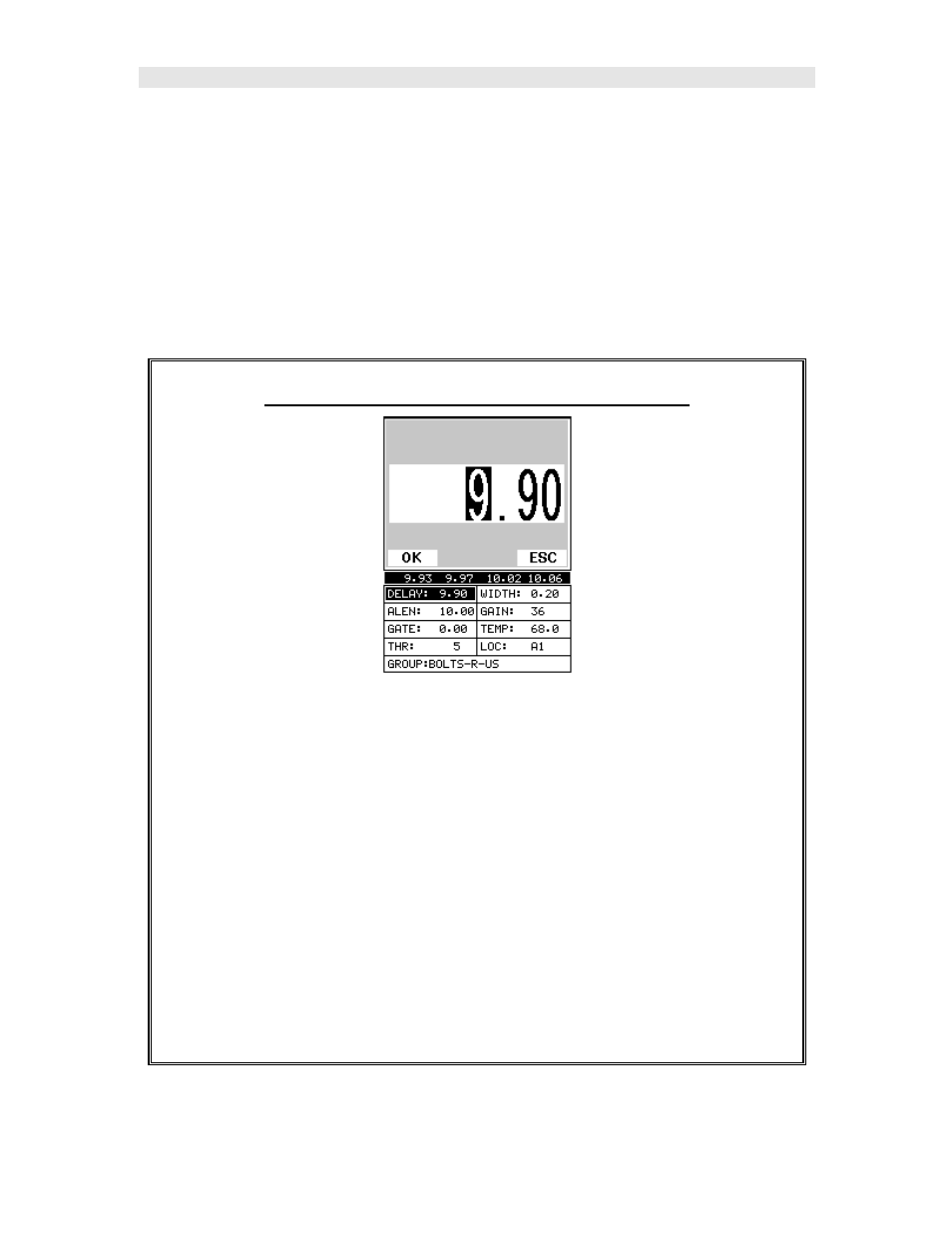

Alternatively , press the ENTER key to display the Digits Edit Box.

4) Press the

UP and DOWN arrow keys to scroll the highlighted va lue.

5) Press the

LEFT and RIGHT arrow keys to scroll the digit locations.

6) Repeat steps

4 & 5 until the DELAY value is correctly displayed.
