Selecting the Number of Readings Per Bolt

Note: A bolt can have up to 51 possible measurements and 1 unloaded

reference length (L-REF). There must be at least one reading per bolt.

Since the group is being created to store probe

Zero Data and verify

linearity on a periodic basis prior to measuring or starting a new application,

consider selecting all 51 readings.

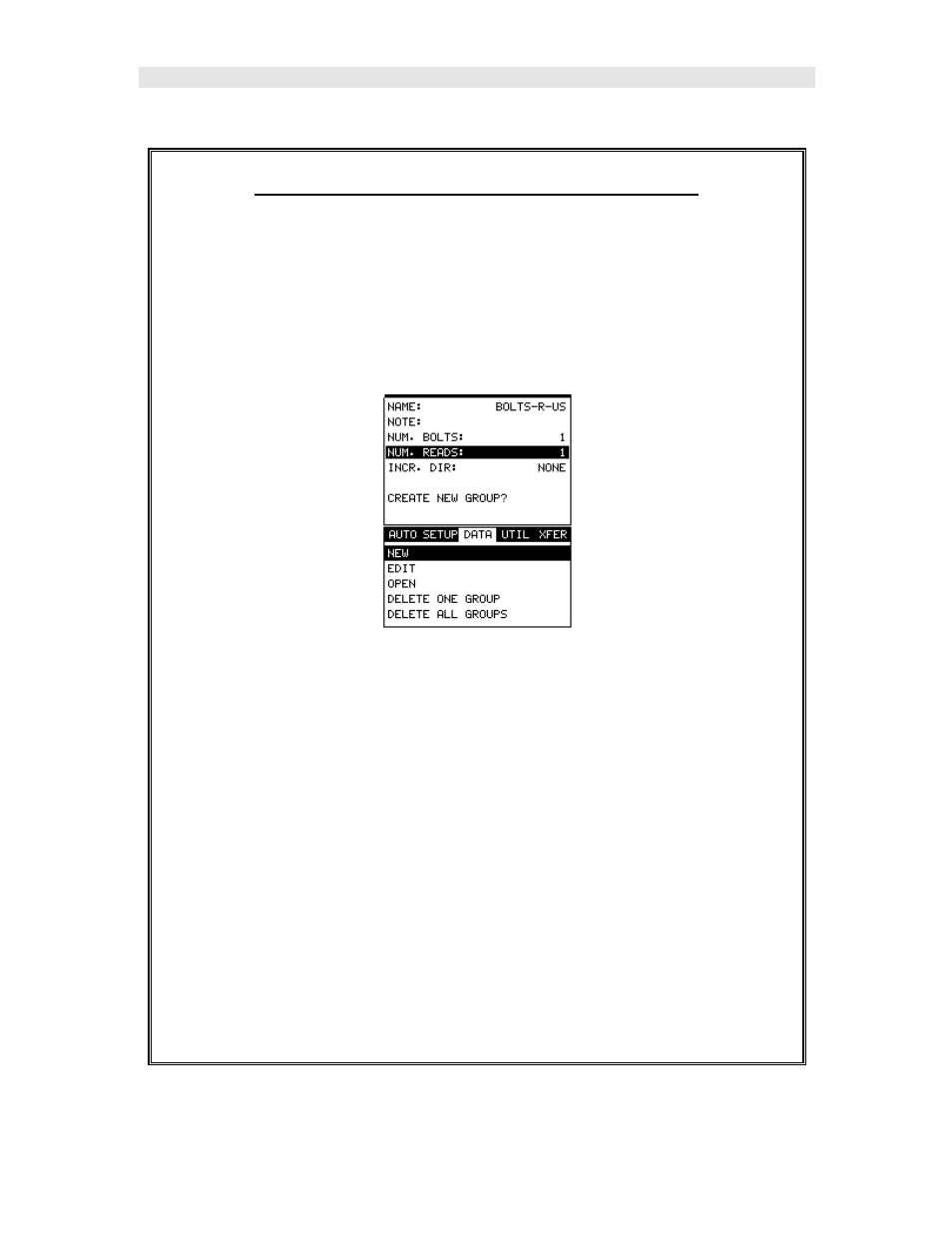

1) Use the

UP and DOWN arrow keys to scroll through the new Group

List Items until NUM READS is highlighted.

2) Press the

ENTER key to display the Digits Edit Box.

3) Press the

UP and DOWN arrow keys to scroll the highlighted value.

4) Press the

LEFT and RIGHT arrow keys to scroll the digit locations.

5) Repeat steps

3 & 4 until the NUM READS value is correctly displayed.

6) Press the

OK key to save the NUM READS and return to the Group

List Items menu, or ESC to cancel entering the NUM READS.

Note: If a number less than 1 or greater than 50 is entered, an error

message box “VALUE IS OUT OF RANGE” will be displayed.
