Checkline TI-MINIMAX - Manual (Page 106)

Dakota Ultrasonics

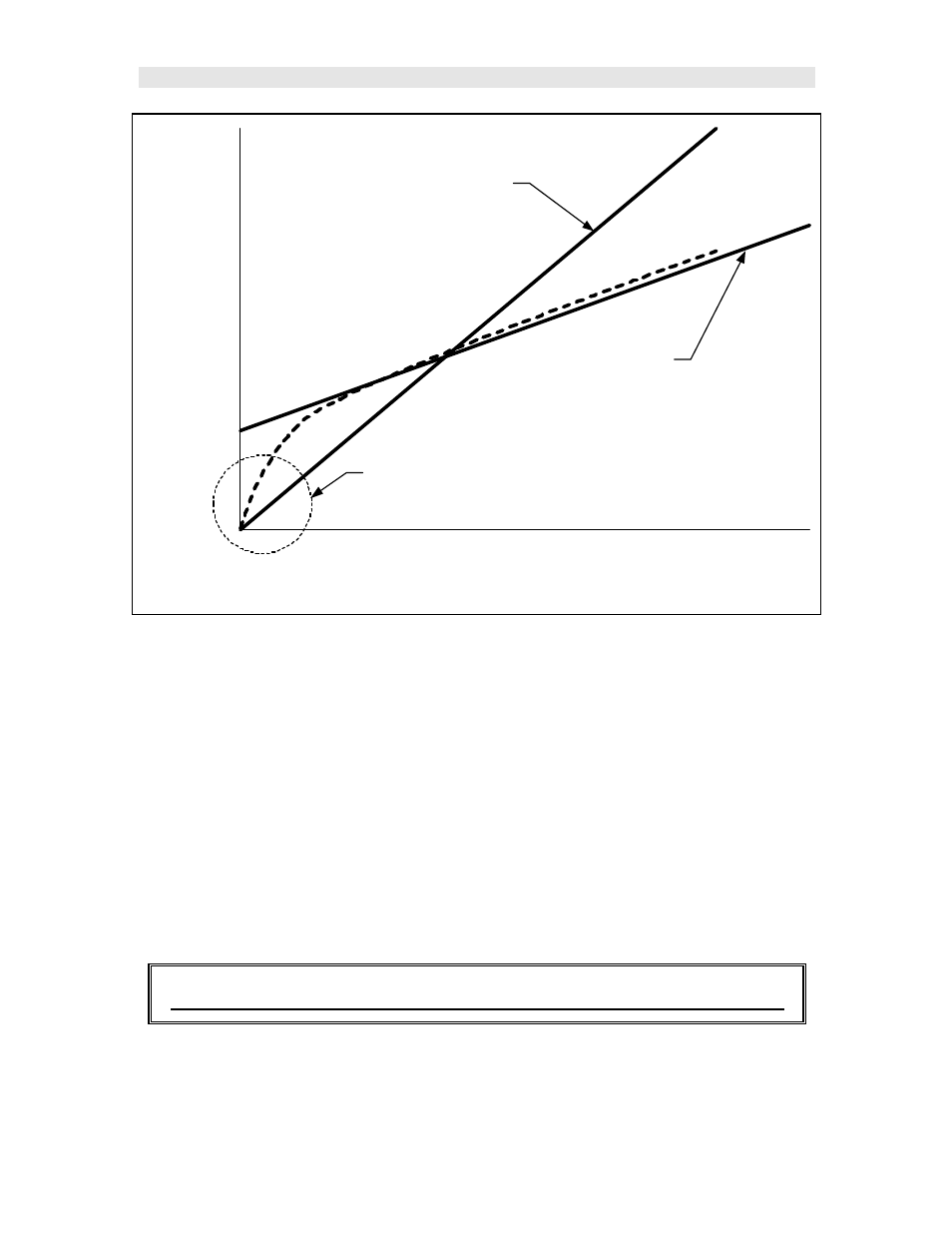

100
Applied
Load
(Measured
by Tensile
Machine)
Elongation (in time as measured by MiniMax)
At low loads, vector
can be more accurate
Vector
Regression
11.3 Performing a Field Calibration
This section outlines the necessary procedures to perform a field calibration to
determine a Load Factor and Offset (in the case of using regression). In the
calibration procedures below, three sample bolts will be used with three loads
applied to each bolt (1/3, 2/3, & Max). This should be considered the minimum
requirement when performing a field calibration. The following procedures also
assume that the user has performed the probe zero operation and the MINI-MAX
is setup and ready for measurement.
Creating a Group Name to Document Field Calibration Data
