Page 16

Dakota Ultrasonics

6) Press the

OK key to save the NUM BOLTS and return to the Group

List Items menu, or ESC to cancel entering the NUM BOLTS.

Note: If a number greater than 250 is entered, an error message box

“VALUE IS OUT OF RANGE” will be displayed.

7) Press the

OK key to display the Digits Edit Box and re-enter the NUM

BOLTS.

8) Press the

OK key to save the NUM BOLTS and return to the Group

List Items menu, or ESC to cancel entering the NUM BOLTS.

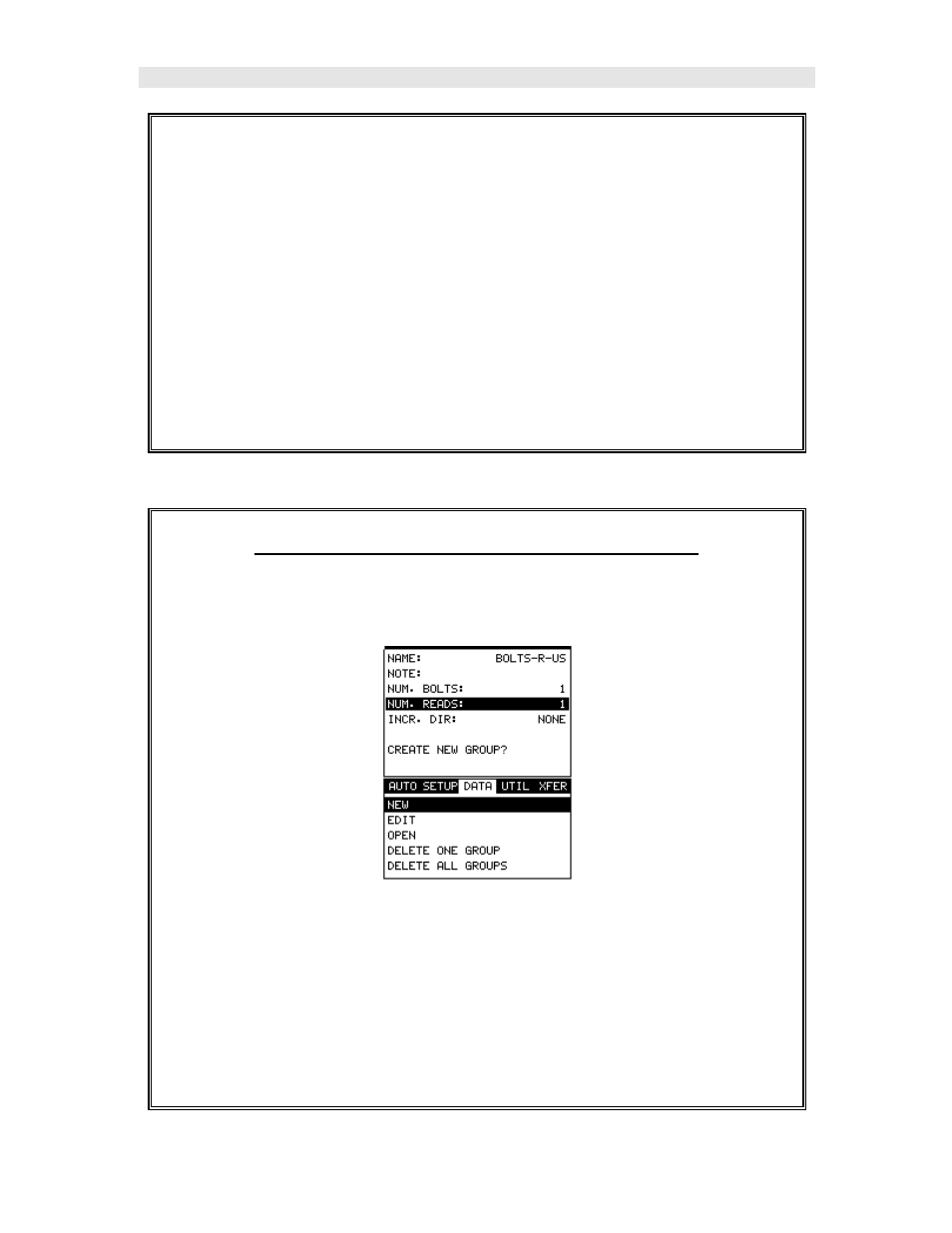

Selecting the Number of Readings Per Bolt

Note: A bolt can have up to 51 possible measurements and 1 initial length

(L-REF). There must be at least one reading per bolt.

1) Use the

UP and DOWN arrow keys to scroll through the new Group

List Items until NUM READS is highlighted.

2) Press the

ENTER key to display the Digits Edit Box.

3) Press the

UP and DOWN arrow keys to scroll the highlighted value.

4) Press the

LEFT and RIGHT arrow keys to scroll the digit locations.
