error caused by moving the transducer to a completely different location on

the bolt, thus causing potentially erroneous measurements. Be consistent

and as methodical in your methods as possible. This will help to avoid

transducer placement errors.

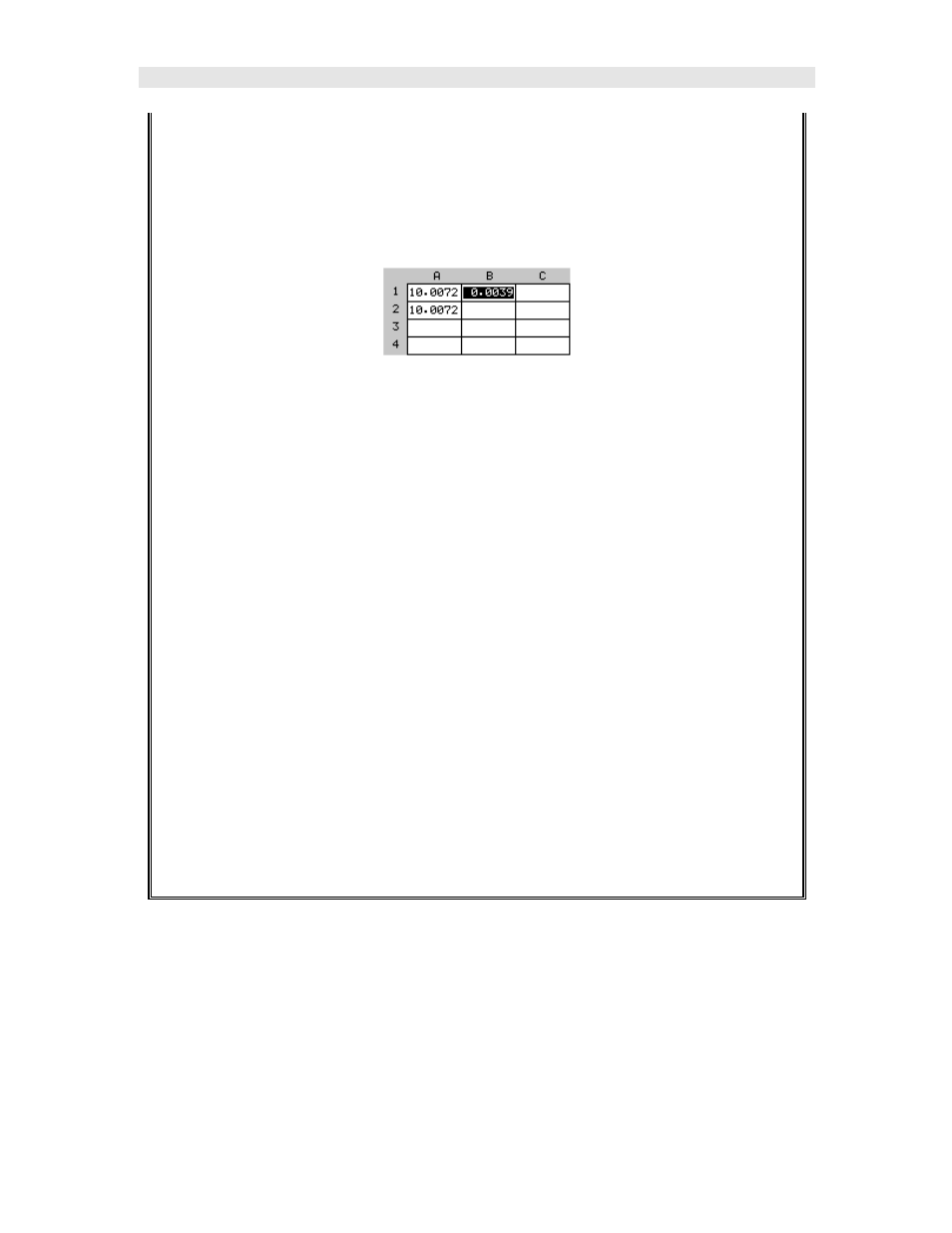

1) Press the

UP, DOWN, LEFT, and RIGHT arrow keys to scroll the target

cell cursor to the desired storage location.

Note: Elongation values must be stored in column B - ZZ.

2) Press the

AUTO SET key, located in the bottom left corner of the

keypad, to locate the detection point, or end of the bolt.

3) Press the

ENTER key to save the current elongation in the highlighted

cell location.

Note: If the measurement was save in error, press the CLR key at anytime

to clear the stored reading and re-measure using the steps

2 & 3 above.

4) Continue to repeat this process until all the elongation measurements

have been completed.

Note: The Group View Box can be aborted at any time by pressing the

MEAS key.
