MINI-MAX Ultrasonic Bolt Tension Monitor

5) Press the

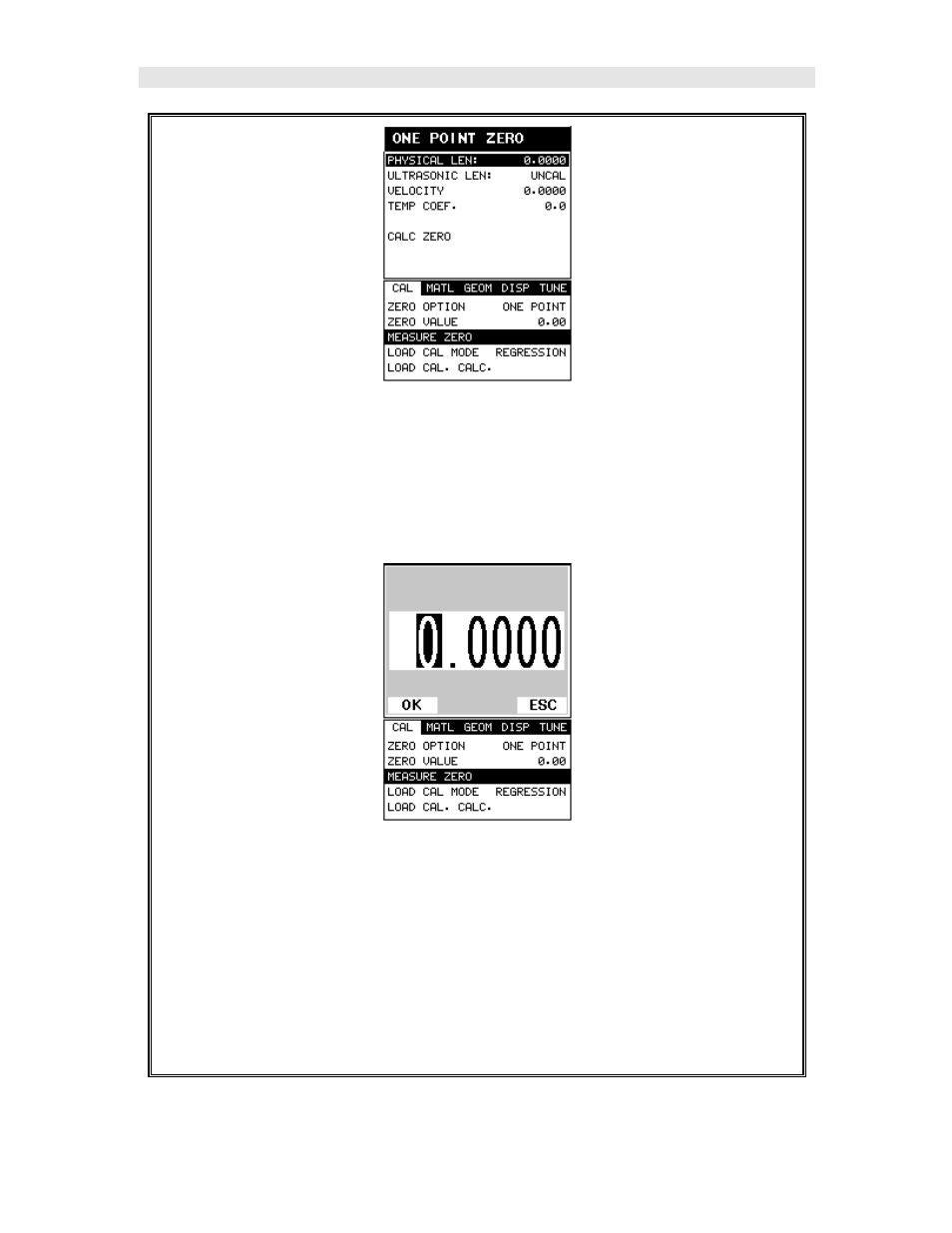

ENTER key to display the One Point Zero Edit Box.

6) Use the

UP and DOWN arrow keys to scroll through the One Point List

Items until PHYSICAL LEN is highlighted.

7) Press the

ENTER key to display the Digits Edit Box.

Note: Enter the known ultrasonic length of the bolt that was documented

and stored in the previous section. We will consider this ultrasonic length to

be the actual physical length from this point forward. Reminder: It was

stored in the first column of the probe zero group.

8) Press the

UP and DOWN arrow keys to scroll the highlighted value.

9) Press the

LEFT and RIGHT arrow keys to scroll the digit locations.
