MINI-MAX Ultrasonic Bolt Tension Monitor

Toggle Rect Wave (filled / Unfilled)

Note: Before toggling the Rect Wave, the MINI-MAX should be set to the

RECT display view option. Please refer to section 12.2 for information on

selecting the

Display Views.

1) Press the

MENU key once to activate the menu items tab. Press the

MENU key multiple times to tab right, and the ESC key multiple times to

tab left, until the

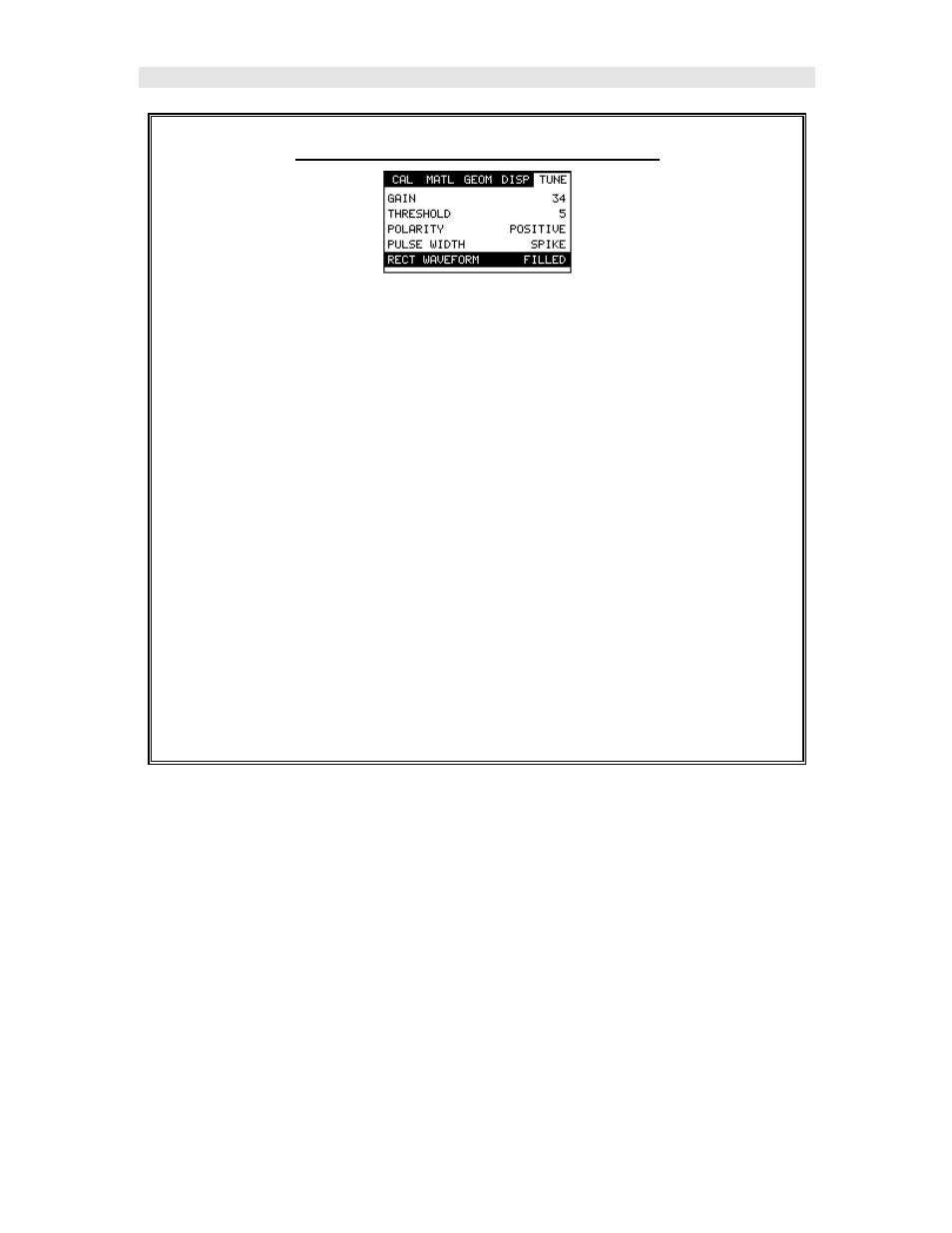

TUNE menu is highlighted and displaying the submenu

items.

Use the

UP and DOWN arrow keys to scroll through the sub menu items

until

RECT WAVEFORM is highlighted.

Use the

LEFT and RIGHT arrow keys to toggle the RECT WAVEFORM

filled or unfilled.

Press the

MEAS key to return to the measurement screen.
