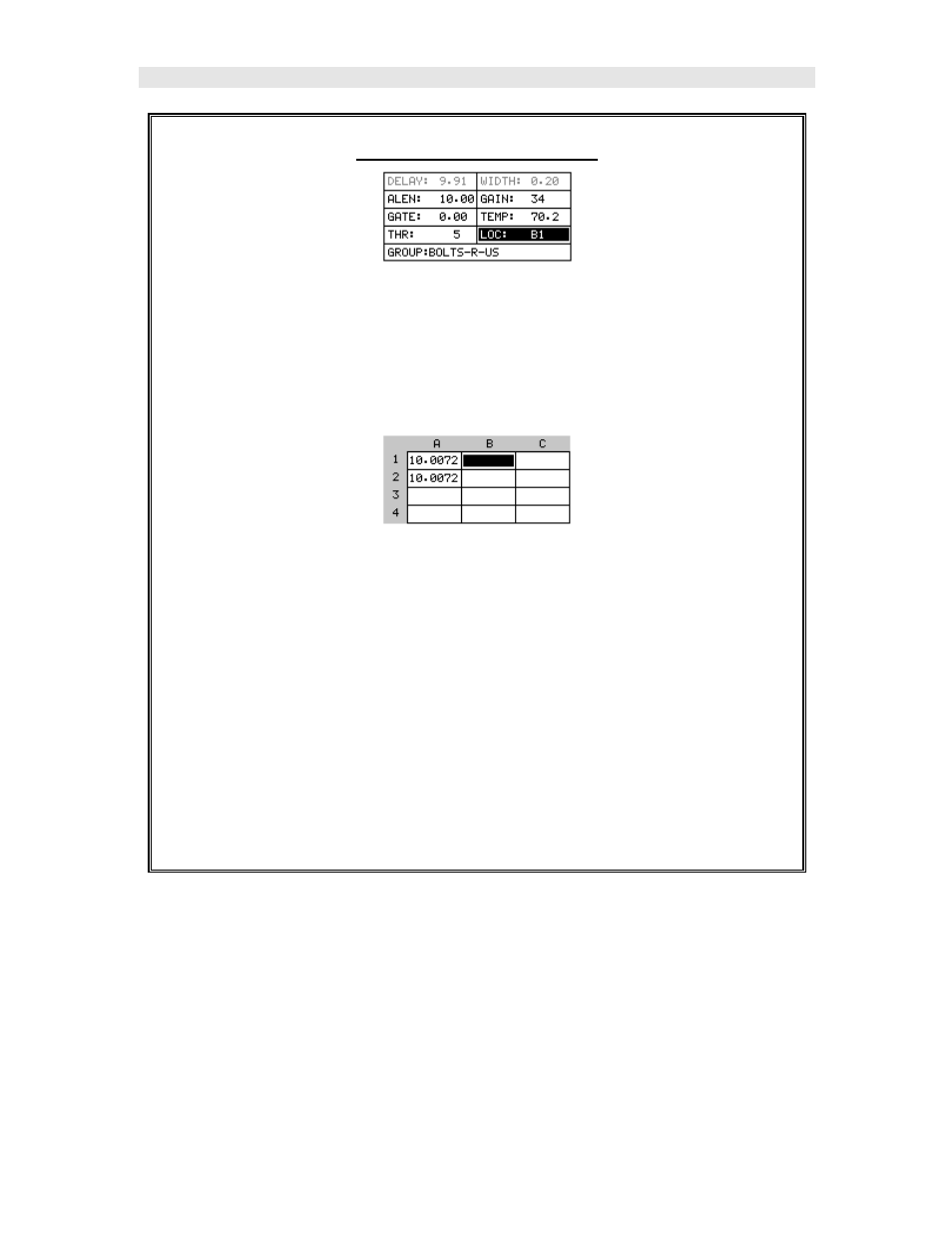

Storing a Measurement

1) Press the

MEAS key once to activate measure menu items. Press the

MEAS key multiple times to move right and the ESC key multiple times

to move left until the

LOC cell is highlighted.

2) Press the

ENTER key to display the Group View Box.

3) Press the

UP, DOWN, LEFT, and RIGHT arrow keys to scroll the target

cell cursor to the desired storage location.

1) Press the

ENTER key to save the current reading in the highlighted cell

location.

2) Abort the

Group View Box by pressing the MEAS key at any time.

Note: Every time a reading is saved to memory, the waveform data is

automatically saved with the reading.

14.4 Viewing stored measurements and waveforms

It is sometimes necessary to go back and view, or toggle, the stored readings
and waveforms using the MINI-MAX without a PC. The following procedures
outline this process:
