Timer and concur setpoints – Rice Lake 320IS Plus Intrinsically Safe Digital Weight Indicator - Installation Manual User Manual
Page 40

34
320IS Plus Installation Manual

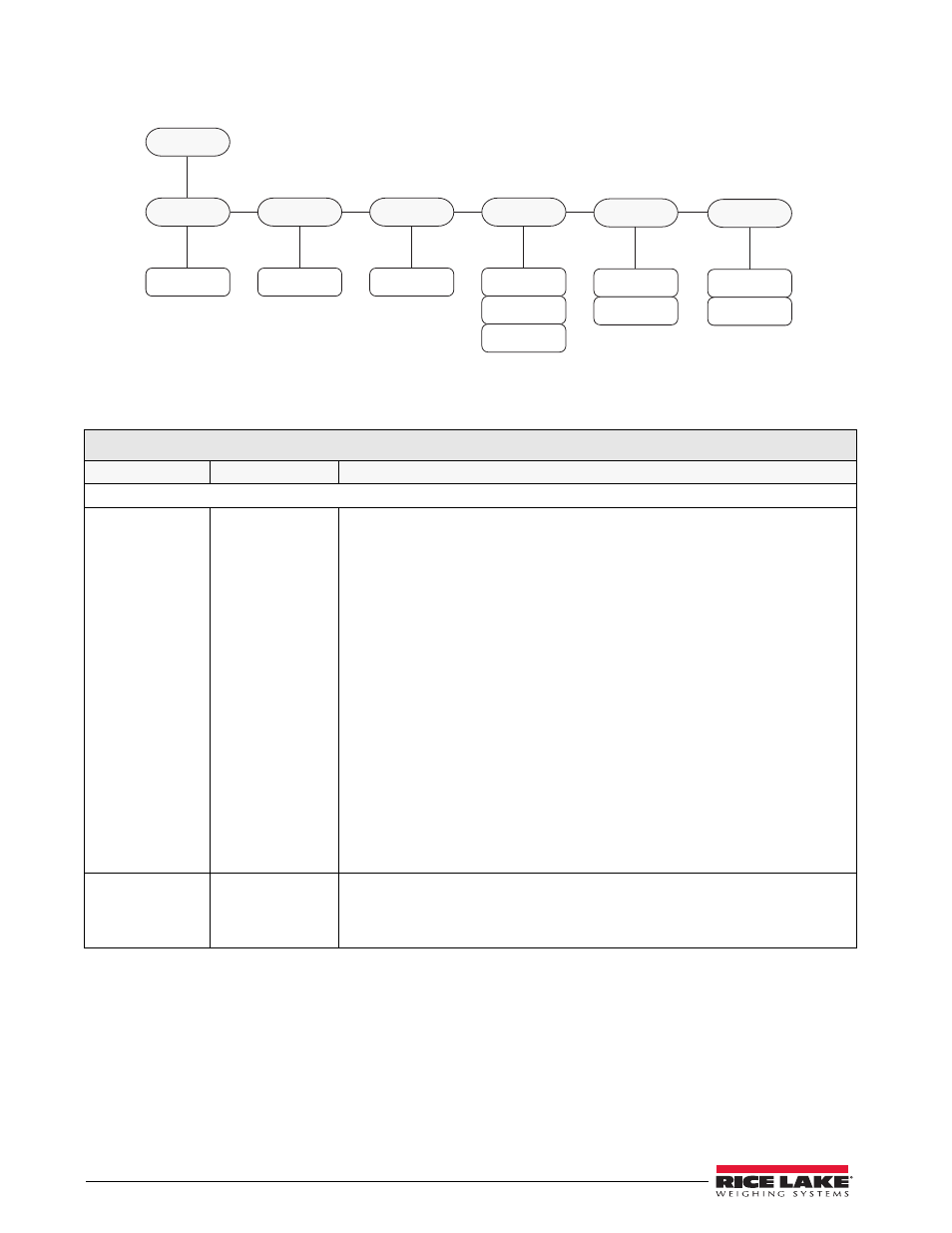

Figure 3-11. Submenu for TIMER and CONCUR Setpoints
SETPTS Menu
Parameter
Choices
Description
Level 2 submenus
SETPT1–SETPT8
OFF
GROSSP
NETSP
-GROSS
-NET
ACCUM
+RELSP
–RELSP
%RELSP
RESREL
PAUSE
DELAY
WAITSS
COUNTR
AUTJOG
COZ
NMOTON
NRANGE
BATPRO
TIMER
CONCUR
Specifies the setpoint kind.
GROSSP, NETSP, +RELSP, –RELSP, and %RELSP setpoint kinds can be used as
either batch or continuous setpoints.
PAUSE, DELAY, WAITSS, COUNTR, and AUTJOG setpoint kinds can only be used in
batch sequences.
COZ, NMOTON, NRANGE, –GROSS, –NET, BATPRO, TIMER, and CONCUR
setpoint kinds can only be used as continuous setpoints.
See Table 7-1 on page 57 for more information about setpoint kinds.
BATCHN
OFF
AUTO
MANUAL
Batching enable — Set to AUTO or MANUAL to allow a batch sequence to run.
MANUAL and AUTO require a BATSTA digital input or a BATSTART EDP command
before the batch sequence can run. AUTO also allows batch sequences to repeat
continuously.
D
V ALUE
number
1–8
1–8
ACCESS
OFF
ON
HIDE
NAME
NONE
1–8
TIMER and CONCUR Setpoints
START
END
DIGOUT
NONE
1–4
