320IS Plus Installation Manual - Introduction
5
1.5
Front Panel Configuration

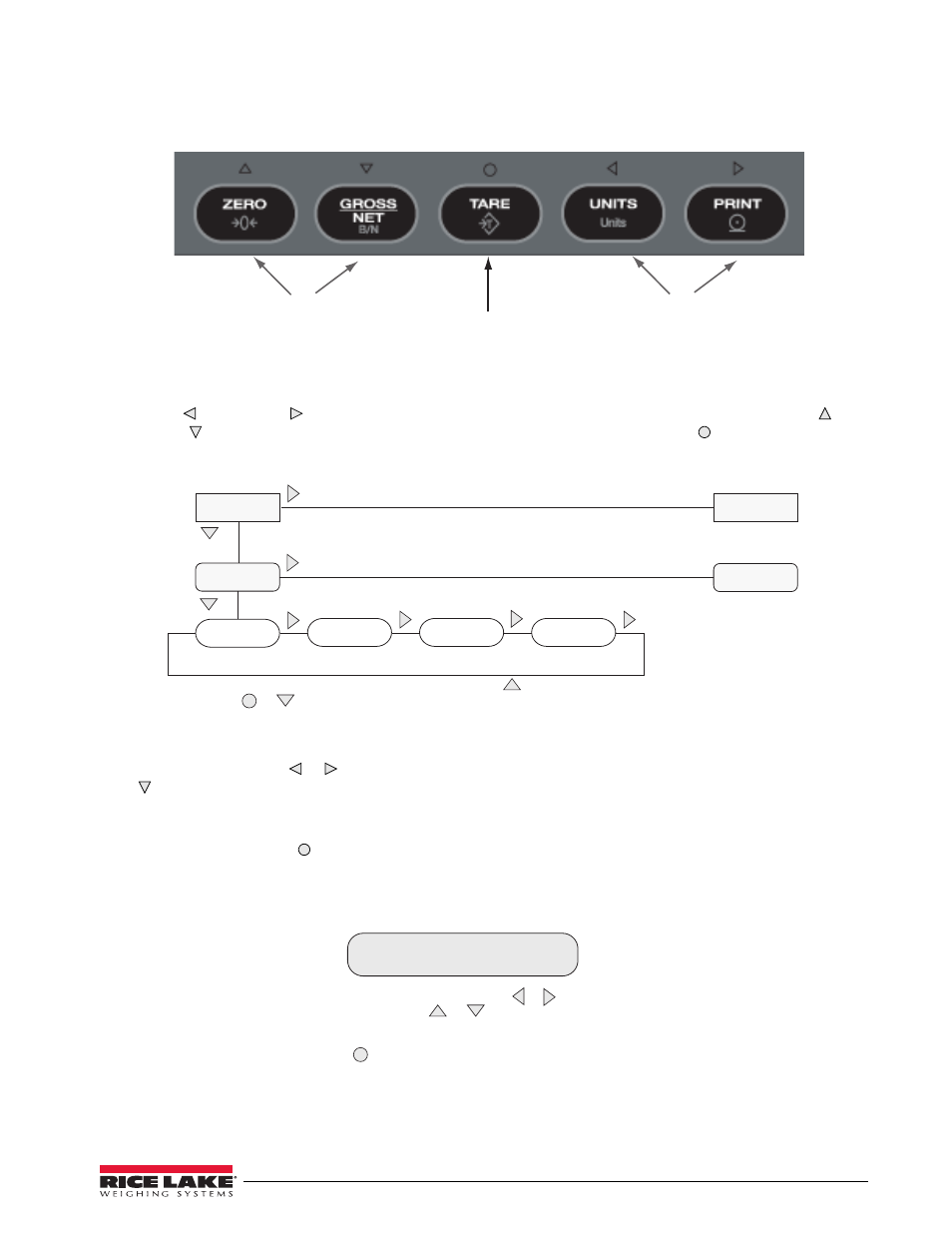

Figure 1-2. Front Panel Key Functions in Setup Mode
Four front panel keys are used as directional keys to navigate through the menus in setup mode (see Figure 1-2).
The
UNITS
( ) and
( ) keys scroll left and right (horizontally) on the same menu level;
ZERO
( ) and
GROSS/NET
( ) move up and down (vertically) to different menu levels. The
TARE
key ( ) serves as an enter key
for selecting parameter values within the menus. A label above each of these keys identifies the direction
provided by the key when navigating through the setup menus.
Figure 1-3. Setup Mode Menu Navigation
To select a parameter, press or to scroll left or right until the desired menu group appears on the display, then
press to move down to the submenu or parameter you want. When moving through the menu parameters, the
default or previously selected value appears first on the display.
To change a parameter value, scroll left or right to view the values for that parameter. When the desired value
appears on the display, press to select the value and move back up one level. To edit numerical values, use the
navigation keys to select the digit and to increment or decrement the value or use the numeric keypad (see
Figure 1-4. Editing Procedure for Numeric Values
Move Up and
Down (vertically)
Enter
Move Left and
Right (horizontally)
1
st
Level
Parameter
Default value
2
nd
Level
Parameter
Value
Value
1
st
Level
Parameter
2
nd
Level
Parameter
When moving thr ough values below the first menu level, press
to r etur n to the level
above. Pr
ess or
to move to the
next parameter on the level above.
Value
When editing numeric values, press
or
to change th e
digit selected. Press
or
to incr ement or decrement the
value of t he selected digit, or use t he numeric keypad.
Pr ess
to save the value entered and return to the level above.
