Dynojet 250i: Pit Installation Guide User Manual
Page 91
A C C E S S O R I E S
Air Brake
Version 4
In Ground Model 200iP/250iP Motorcycle Dynamometer Installation Guide
3-13
10 Push the bottom clevis pin towards the back of the assembly (drum side). You do
not need to remove the pin completely.
11 Remove the hairpin cotter from the top clevis pin located on the drum side of the
air brake assembly.

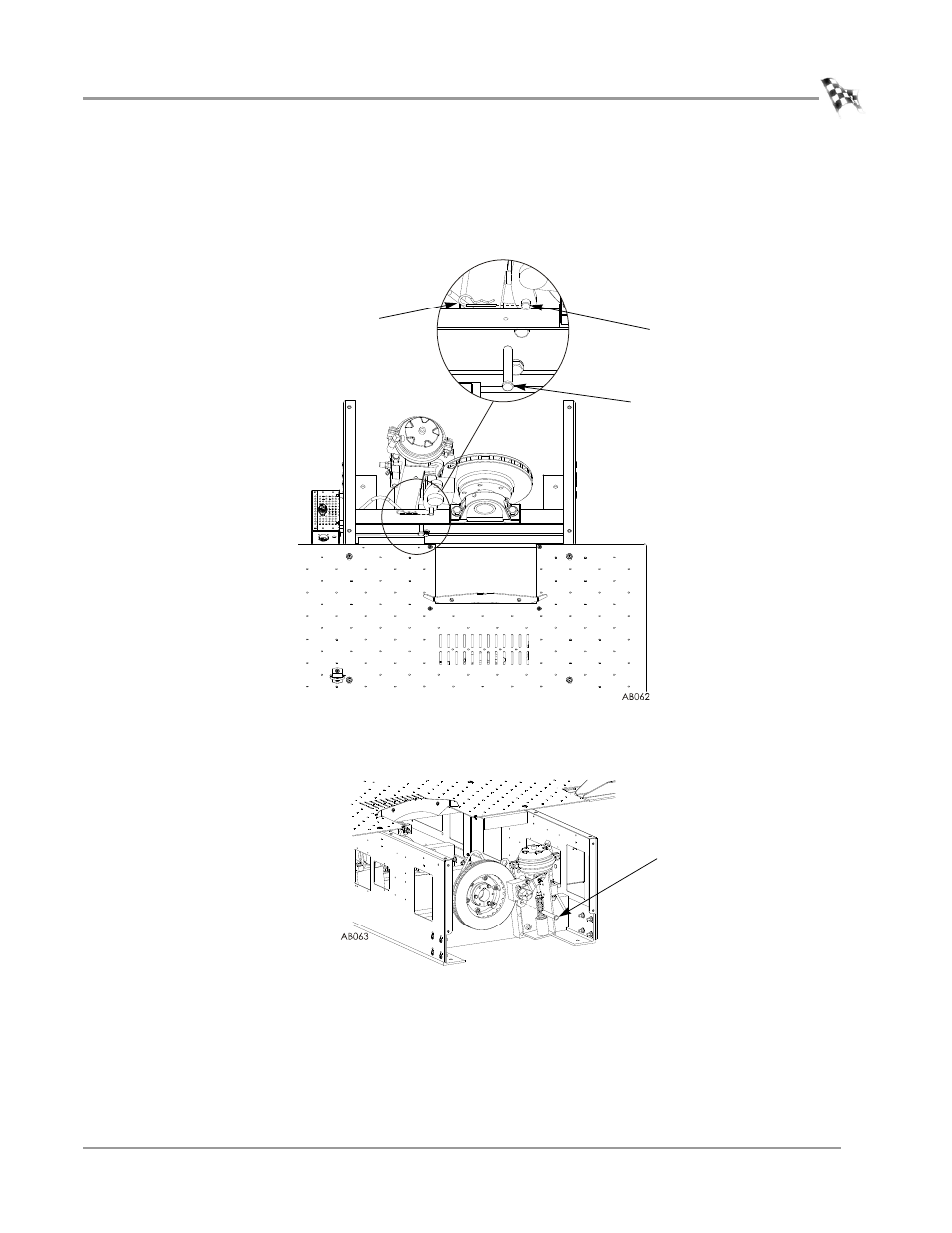

Figure 3-15: Remove Bottom Pin and Top Hairpin Cotter
12 Remove the top clevis pin.
Figure 3-16: Remove the Top Clevis Pin
bottom clevis pin
top hairpin cotter
top clevis pin
top clevis pin
