In Ground Model 200iP/250iP Motorcycle Dynamometer Installation Guide
A P P E N D I X C
EEC Finger Guards
C-2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
EEC FINGER GUARDS
The European model 200iP/250iP dynamometers require guards mounted on the
front and back of the drum guard bracket. The EEC finger guards provide extra
protection from the drum by regulating the distance between the drum and the
chassis. The placement of the finger guards can be manually adjusted.
Do not operate the dynamometer without the EEC finger guards properly
installed. The gap between the finger guards and the drum must be less than
0.64 centimeters (0.25 inches). Refer to page C-3 for instructions on adjusting
the gap.
I
NSTALLING
THE
EEC F
INGER
G
UARDS
1
Secure each EEC finger guard to the drum guard mount using two
1/4-20 x 5/8-inch pan head screws.
2
Continue with installing the pit covers on page 2-48.

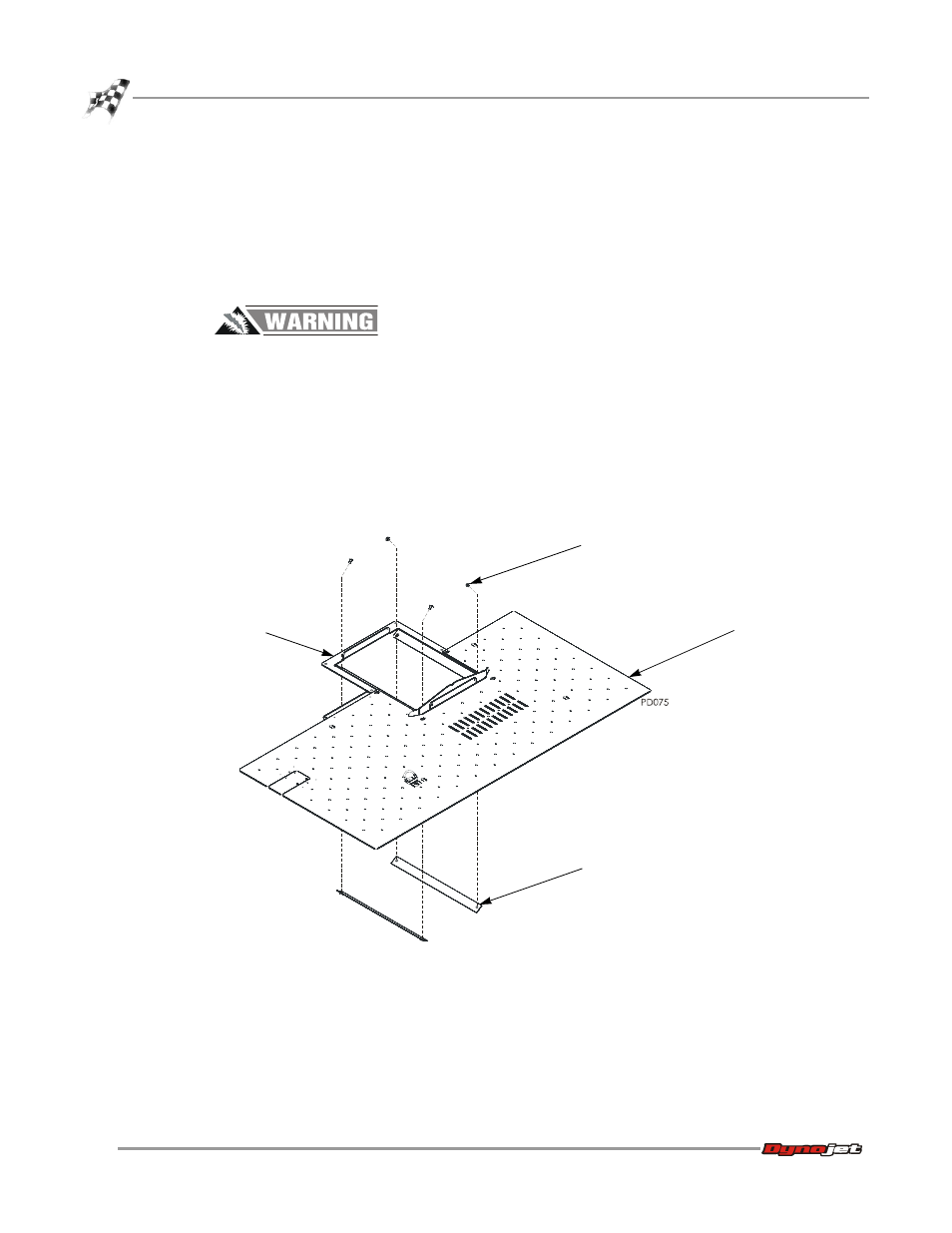

Figure C-1: Install the EEC Finger Guards
screw
left pit cover plate
finger guard
drum guard mount
