In Ground Model 200iP/250iP Motorcycle Dynamometer Installation Guide
C H A P T E R 2
Pit Covers
2-54
12 Install each drum guard to the drum guard mounting bracket using two
1/4-20 x 5/8-inch pan-head torx screws and two 1/4-20-inch crush nuts.
Note: Verify the drum guards do not contact the drum.
Note: If you installed the EEC finger guards, you will need to adjust them now.
Refer to“Adjusting the EEC Finger Guards” on page C-3 for detailed instructions.

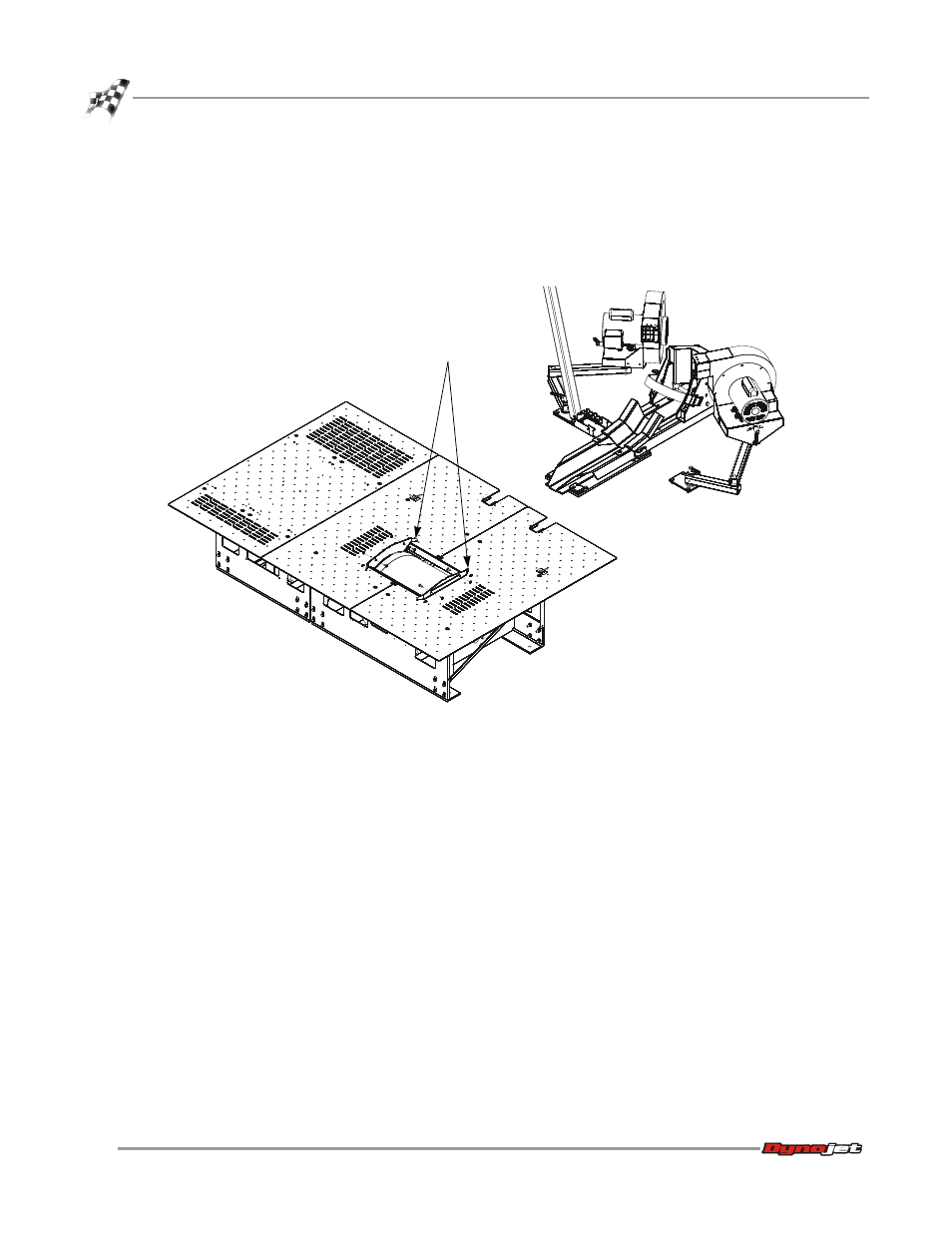

Figure 2-48: Install the Drum Guards
PD177
drum guards
