Tire Stop Installation
Version 4 In Ground Model 200iP/250iP Motorcycle Dynamometer Installation Guide
2-45
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
TIRE STOP INSTALLATION
If you ordered the optional wheel clamp, refer to “Wheel Clamp” on page 3-17 for
instructions on securing the cable track and connecting the wheel clamp cable. If you
did not order the wheel clamp, the wheel clamp cable will hang from the cable track.
You will need the following parts:
• 21626218 Cable Track Adapter Bracket
• 36561045 Screw, 1/4-20 x 5/8", Pan-Head, Torx
• 63310902 Tire Stop includes
36580434 Bolt, 3/8-16 x 1/2", Button-Head Flange, Allen (4)
1 Secure the tire stop to the carriage using three 3/8-16 x 1/2-inch button-head
flange bolts.
2 Secure the cable track adapter bracket to the tire stop and carriage using the
remaining 3/8-16 x 1-2-inch button-head flange bolt.
3 Secure the cable track to the adapter bracket using one 1/4-20 x 5/8-inch pan-head
torx screw.

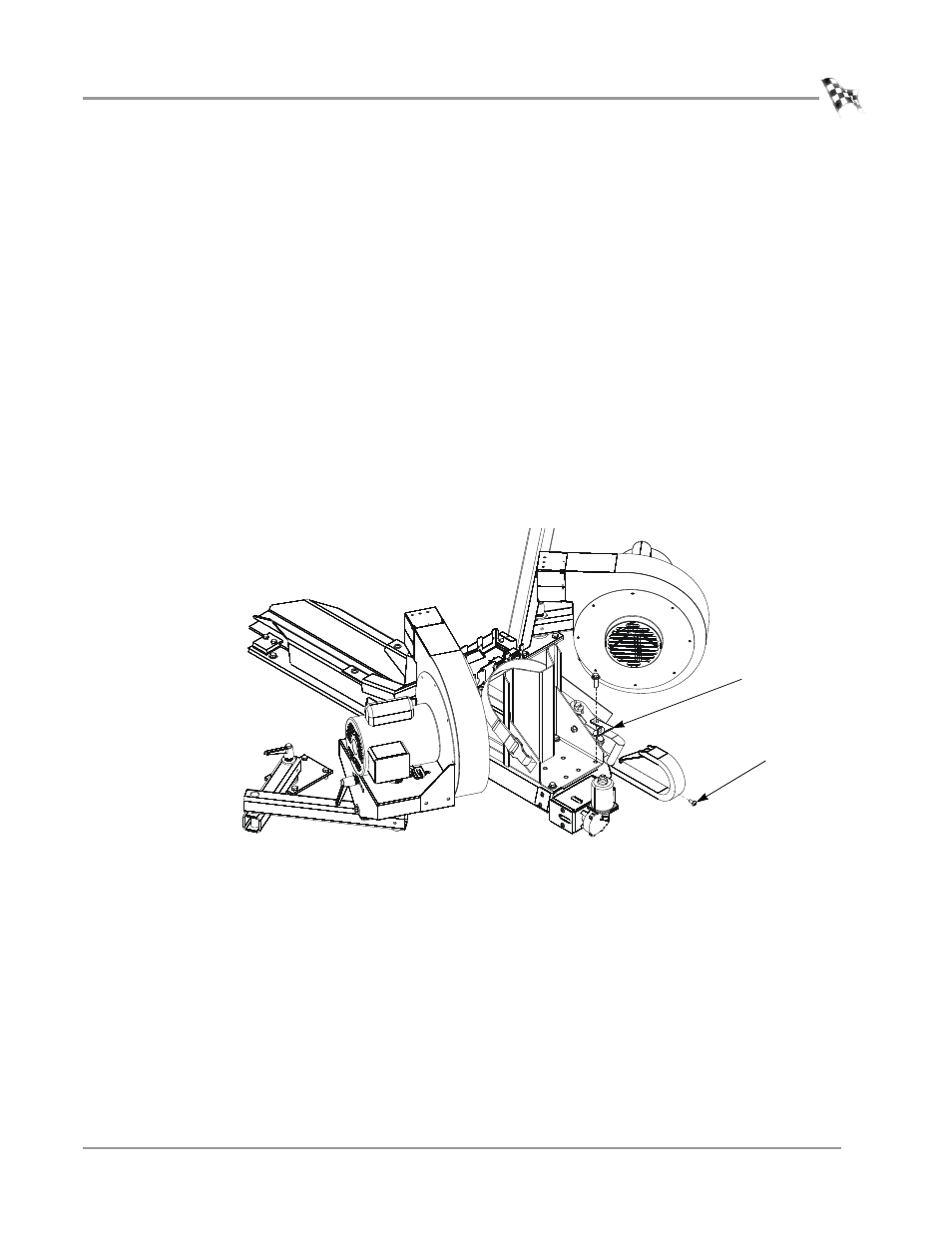

Figure 2-39: Install the Cable Track Adapter Bracket
PD173
cable track
adapter bracket
torx screw
