Routing Cables
Version 4 In Ground Model 200iP/250iP Motorcycle Dynamometer Installation Guide
2-35
13 Using the provided cable clamps and 8-32-inch screws, attach the cable bundle to
the arms and the support arm. Adjust the service loops to allow for easy
movement of the monitor arms without pulling on the cables.

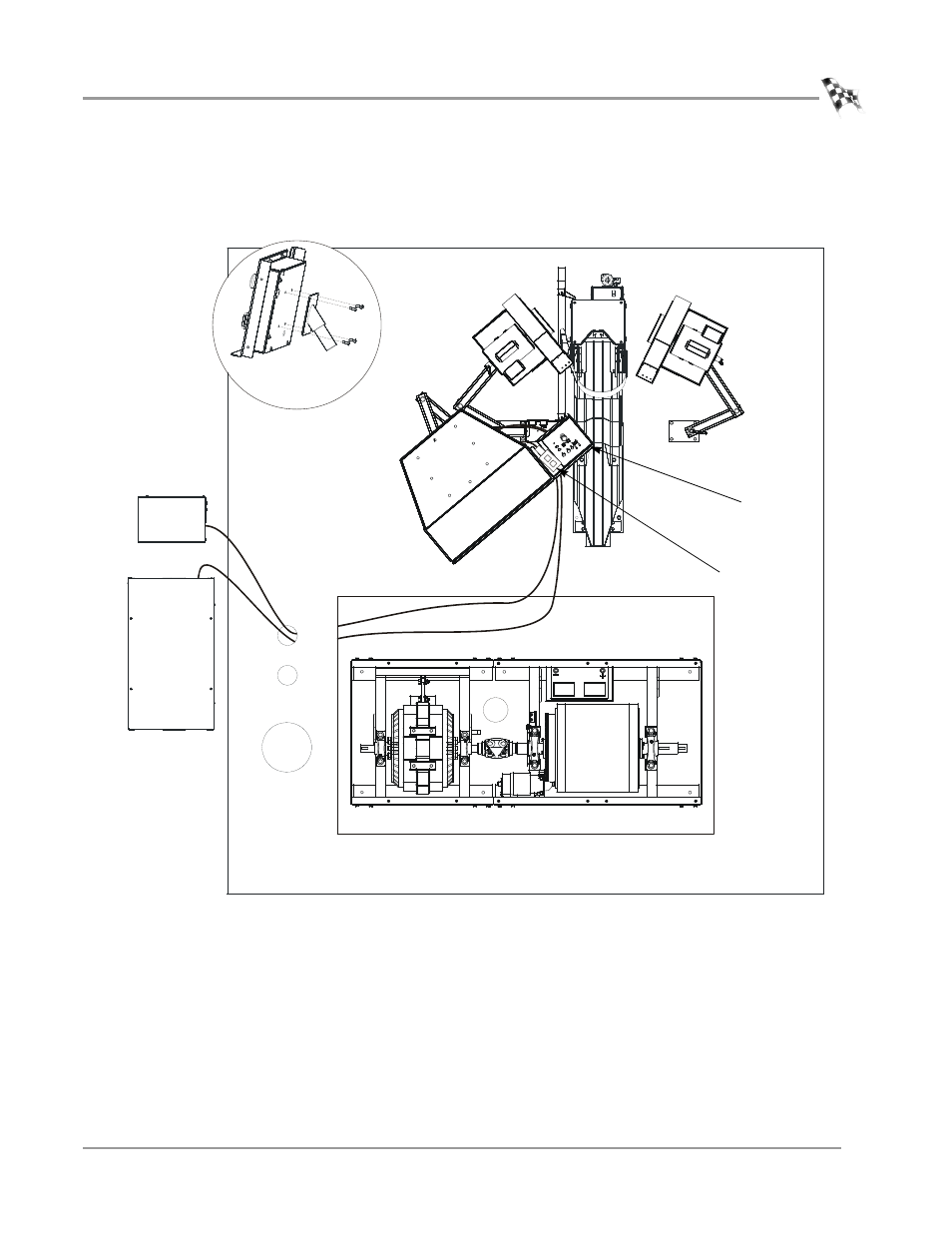

Figure 2-30: Install the Control Panel
PD166
control panel
place pendant
here
CPI
dyno
electronics
install control pod
spindle if you did not
purchase the monitor
tray
