In Ground Model 200iP/250iP Motorcycle Dynamometer Installation Guide
C H A P T E R 2
Power Carriage Installation
2-44
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
POWER CARRIAGE INSTALLATION
You will need the following part:
• 82943001
Power Carriage
1
Remove the four screws securing the power carriage cover and set aside.
2
Bring the power carriage cable (two-pin connector) from the cable track over to
the motor mount.
3
Secure the strain relief to the side of the power carriage motor mounts.
4
Place the power carriage motor assembly near the motor mount and plug the
motor connector into the power carriage cable.
5
Secure the power carriage cover using the four screws removed earlier.
6
Verify the carriage moves without binding. Refer to “Final Adjustments and Tests”
on page 2-46.

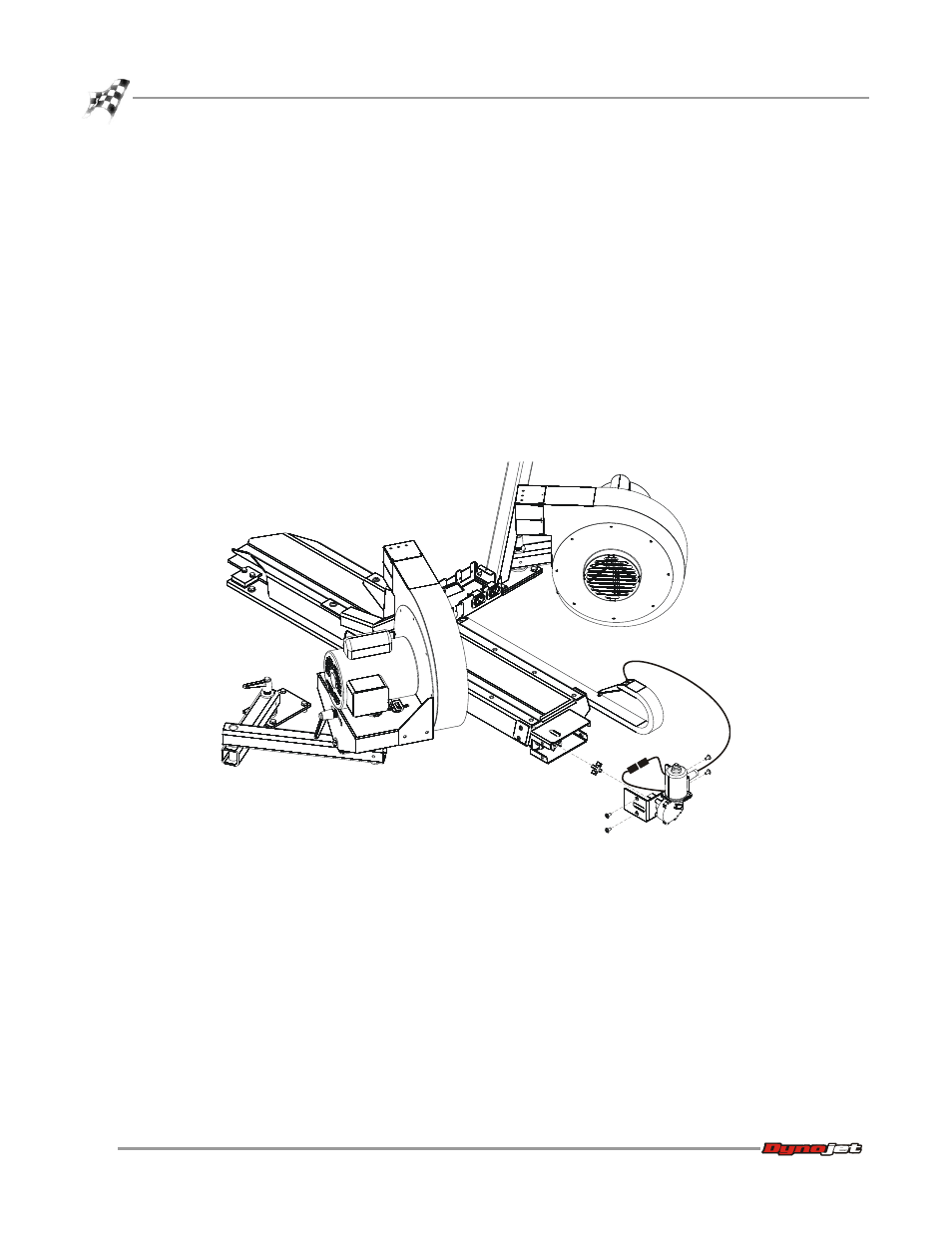

Figure 2-38: Install the Power Carriage
PD172
