In Ground Model 200iP/250iP Motorcycle Dynamometer Installation Guide
C H A P T E R 2
Zip Tube
2-56
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ZIP TUBE
The zip tube encases the multiple cables running to the control panel. You will need
to use the cable wrap tool (P/N 16510001) to insert the cables into the zip tube.
You will need the following part:
• 43400000
Cable Harness Wrap Kit
1
Rotate the cable holder to the open position.
2
Insert the cable(s) into the cable holder.
• Pendant Cable
• Control Panel Cable
• RPM cable(s)
• Additional cables, if desired

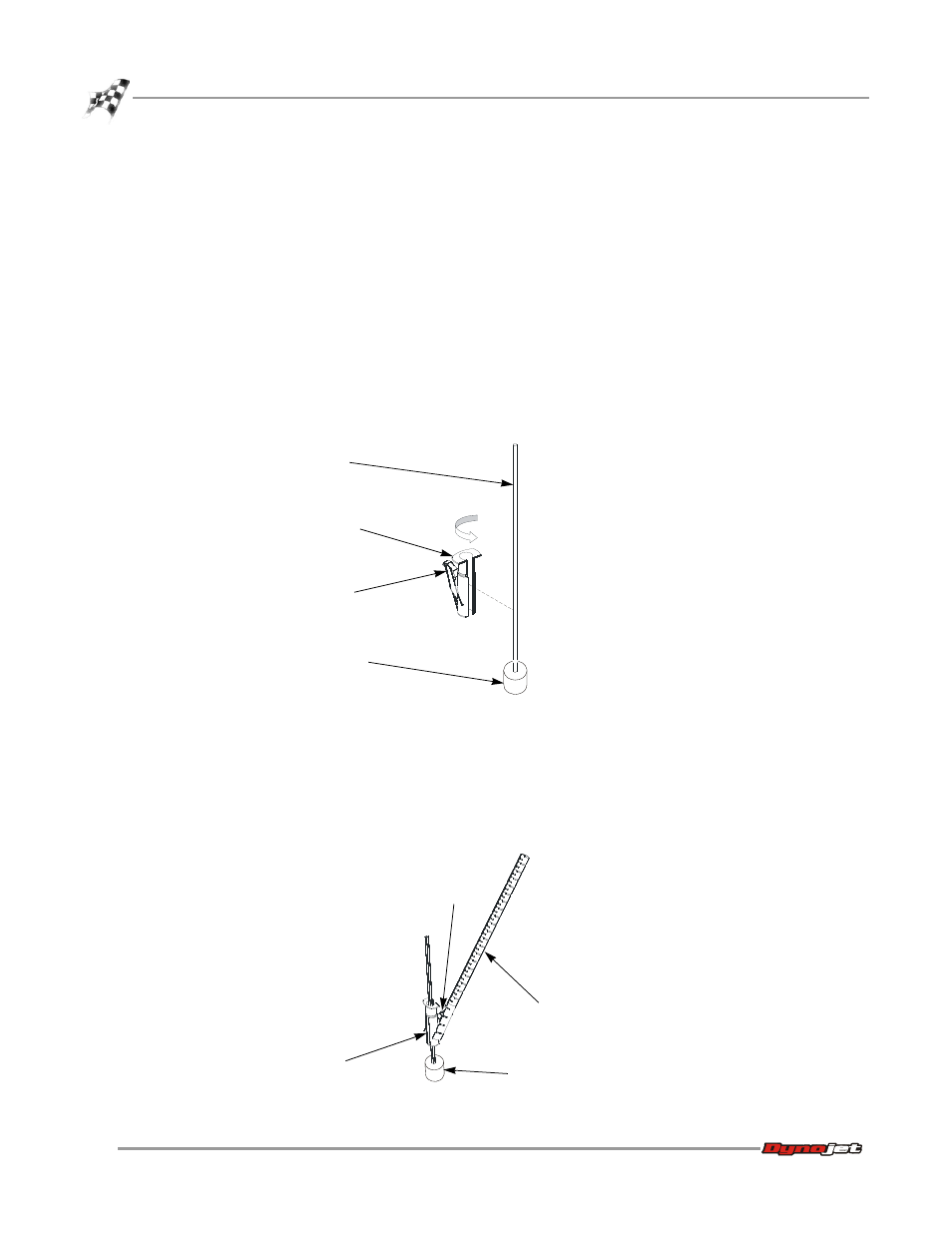

Figure 2-50: Insert Cable(s) Into Cable Holder
3
Rotate the cable holder closed.
4
Insert the guide body into the zip tube.
Note: Make sure you start the cable wrap tool close to the end of the cables. This
will make it easier to pull the tool along the length of the cables.
5
Pull the cable wrap tool through the zip tube along the length of the cables.
Figure 2-51: Securing Cable(s) Into the Zip Tube
cable(s)
cable holder
guide body
end of cables
guide body
zip tube
end of cables
cable wrap tool
