In Ground Model 200iP/250iP Motorcycle Dynamometer Installation Guide
C H A P T E R 1
Dynamometer Specifications and Requirements
1-6

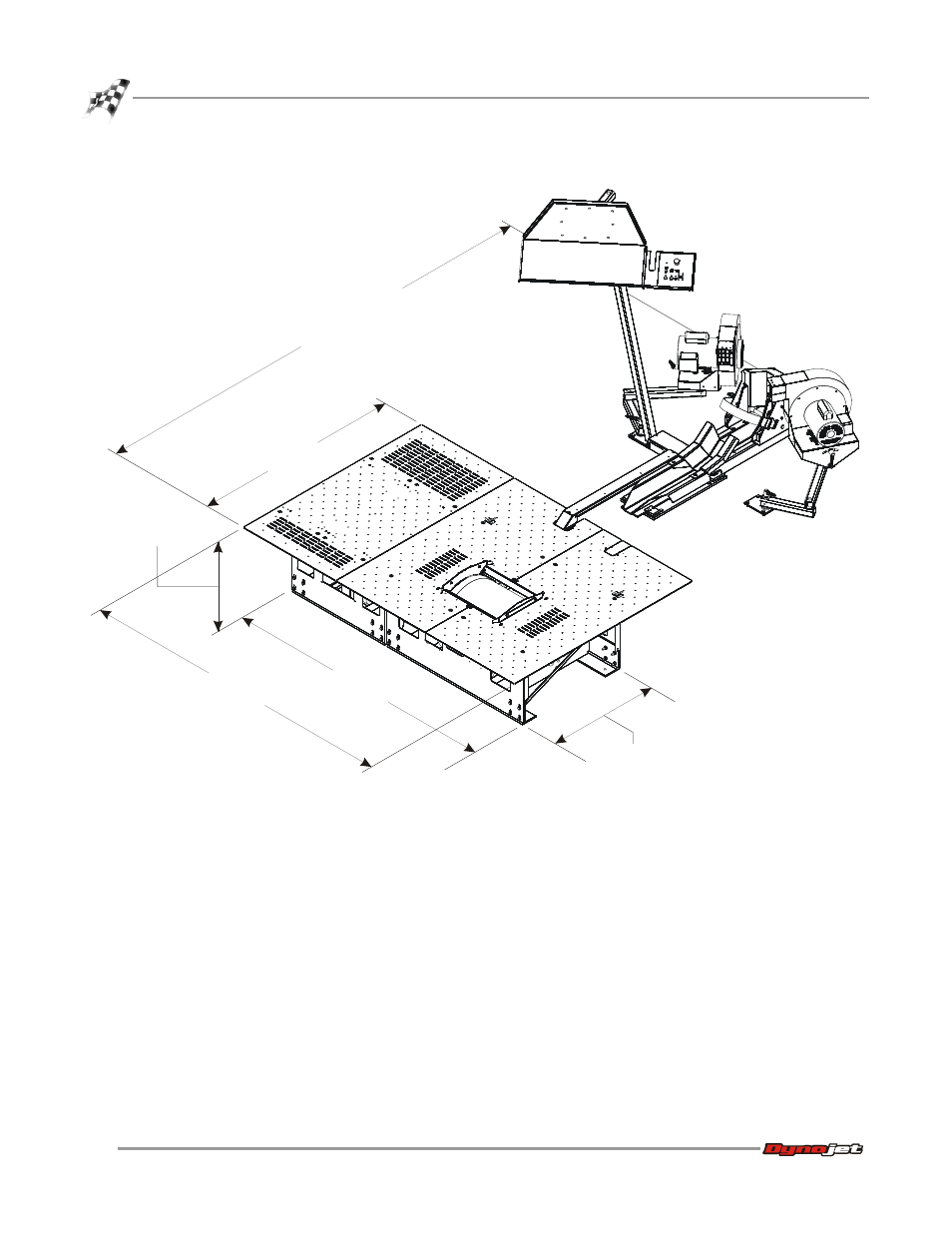

Figure 1-1: Model 250iP Dyno Dimensions
PD153
standard carriage
304.80 cm (120.00 in.)
extended carriage
355.60 cm (140.00 in.)
137.16 cm
(54.00 in.)
45.72 - 46.67 cm
(18.00 - 18.38 in.)
179.07 cm
(70.50 in.)
76.20 cm
(30.00 in.)
208.28 cm
(82.00 in.)
