C H A P T E R 2
Dyno Drum Module Installation
2-8
R EMOVING THE D YNO FROM THE C RATE
This section will walk you through removing the dyno from the crate and installing
the dyno in your pit.
You will need to provide equipment capable of lifting a minimum of 1,089 kg.
(2400 lb.) to lift the dyno (drum module) off the crate and into position in your dyno
room. You will also need a pair of straps capable of supporting 1,089 kg. (2400 lb.) to
attach to the dyno. Dynojet recommends using a single loop style strap.
# RECORD
Be sure you record the dynamometer number on the inside cover of this
manual.
1 Remove the four lag bolts and washers securing the drum module to the crate
base using a 9/16-inch socket, open or box end wrench.
2 Wrap the single loop straps around the drum module shaft.
3 Lift the drum module off the crate and move into position in your pit.

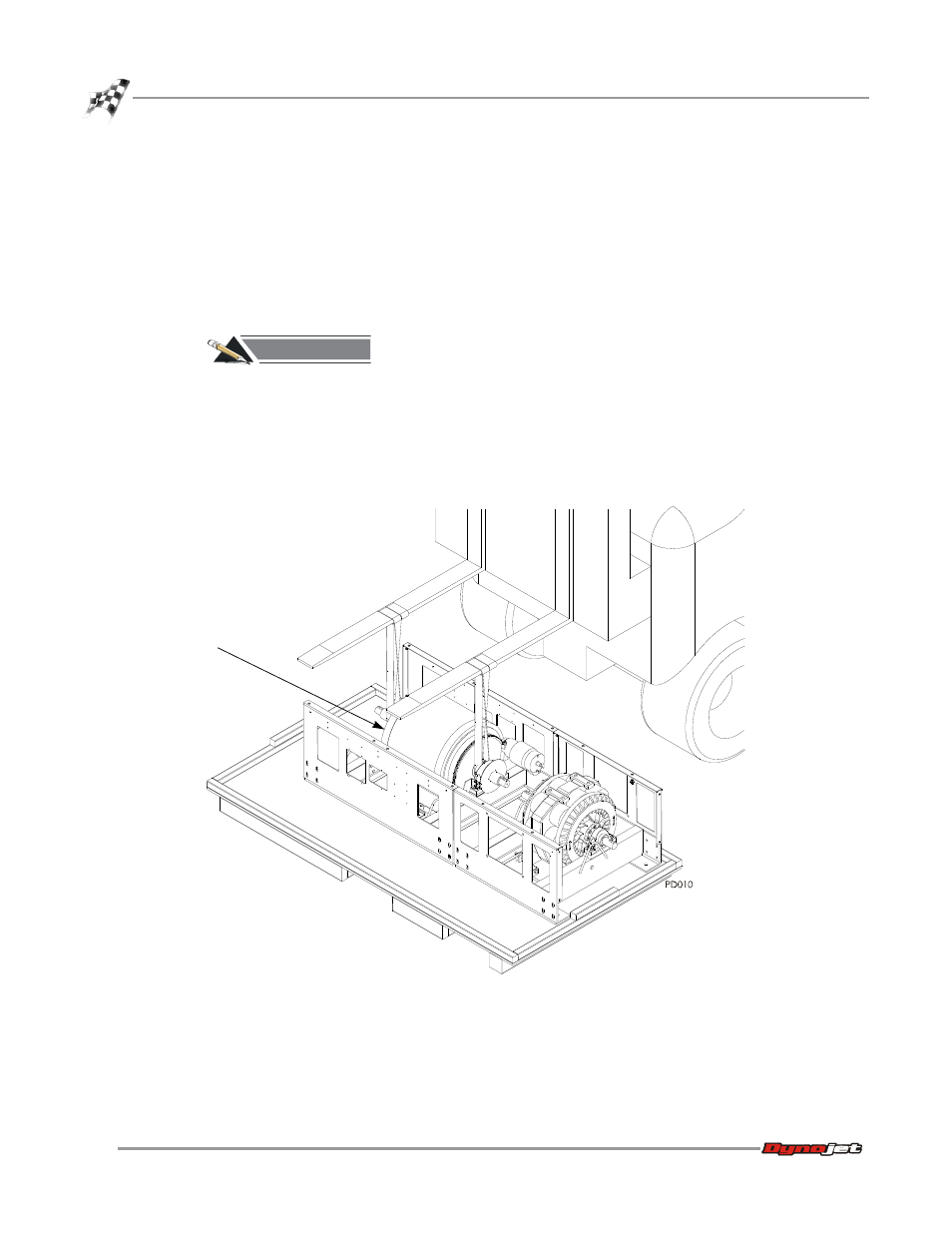

Figure 2-2: Remove the Dyno From the Crate Base
dyno number
stamped on frame
(not visible)
