I N S T A L L A T I O N
Blower and Monitor Support Installation
Version 4 In Ground Model 200iP/250iP Motorcycle Dynamometer Installation Guide
2-23
I NSTALLING THE M ONITOR S UPPORT AND J UNCTION B OX
The high pressure blowers are an optional accessory. If you did not order high
pressure blowers, you will not need to install the blower mounting plates. Refer page
2-21 to for high pressure blower installation instructions.
1
Secure the blower mount, monitor support arm, and junction box to the pit floor
using four 3/8 x 1-inch bolts and four 5/16-inch washers.
Note: The left blower mount is secured under the support arm.
2 Secure the right blower mount to the pit floor using four 3/8 x 1-inch bolts and
four 5/16-inch washers.
The high pressure blowers are an optional accessory. If you did not order high
pressure blowers, you will not need to install the blower mounting plates.
3 Verify the blank plate is secured to the junction box as shown in Figure 2-18.

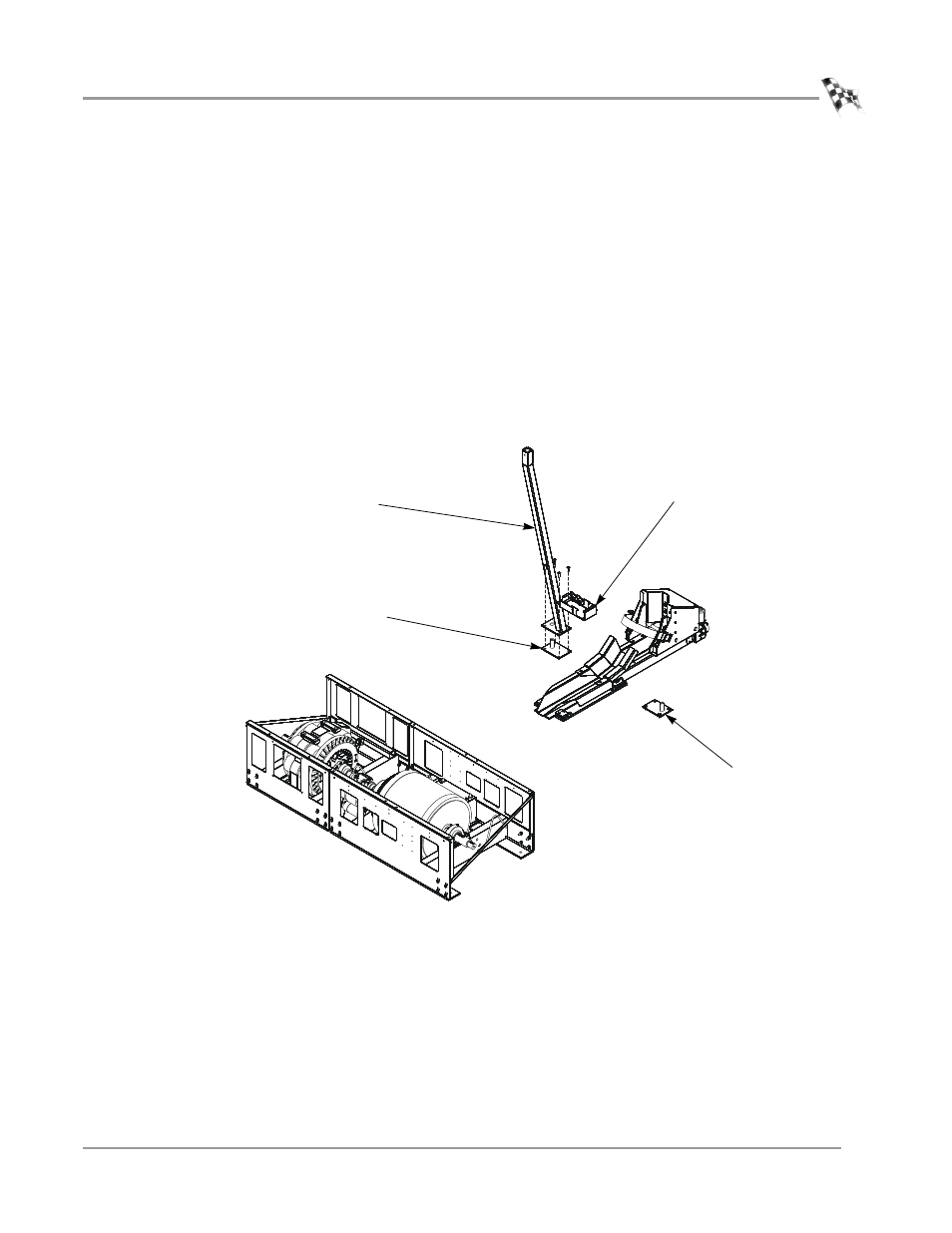

Figure 2-18: Install the Monitor Support Arm and Junction Box
PD159
support arm
blower mount
junction box
blower mount
(under support arm)
