I N S T A L L A T I O N
Routing Cables
Version 4
In Ground Model 200iP/250iP Motorcycle Dynamometer Installation Guide
2-37
R
OUTING
THE
P
OWER
C
ARRIAGE
AND
W
HEEL
C
LAMP
C
ABLES
The wheel clamp is an optional accessory. If you did not order this accessory, it is still
necessary to route the cables to the junction box. After you install the wheel clamp
you can finish routing the cables, refer to “Wheel Clamp” on page 3-17 for installation
instructions.
1
Route the power carriage cable (P/N 76950314) from the CPI through the
designated power pit conduit, through the pit, and out of the pit as shown in
Figure 2-32.
2
Route the wheel clamp cable (P/N 76950313) from the CPI through the same
conduit and along the same path as the power carriage cable.
Note: Be sure to keep the power and communications cables in different pit
conduits.
3
From the pit, route both cables through the junction box.
4
Press each cable into the cable track.

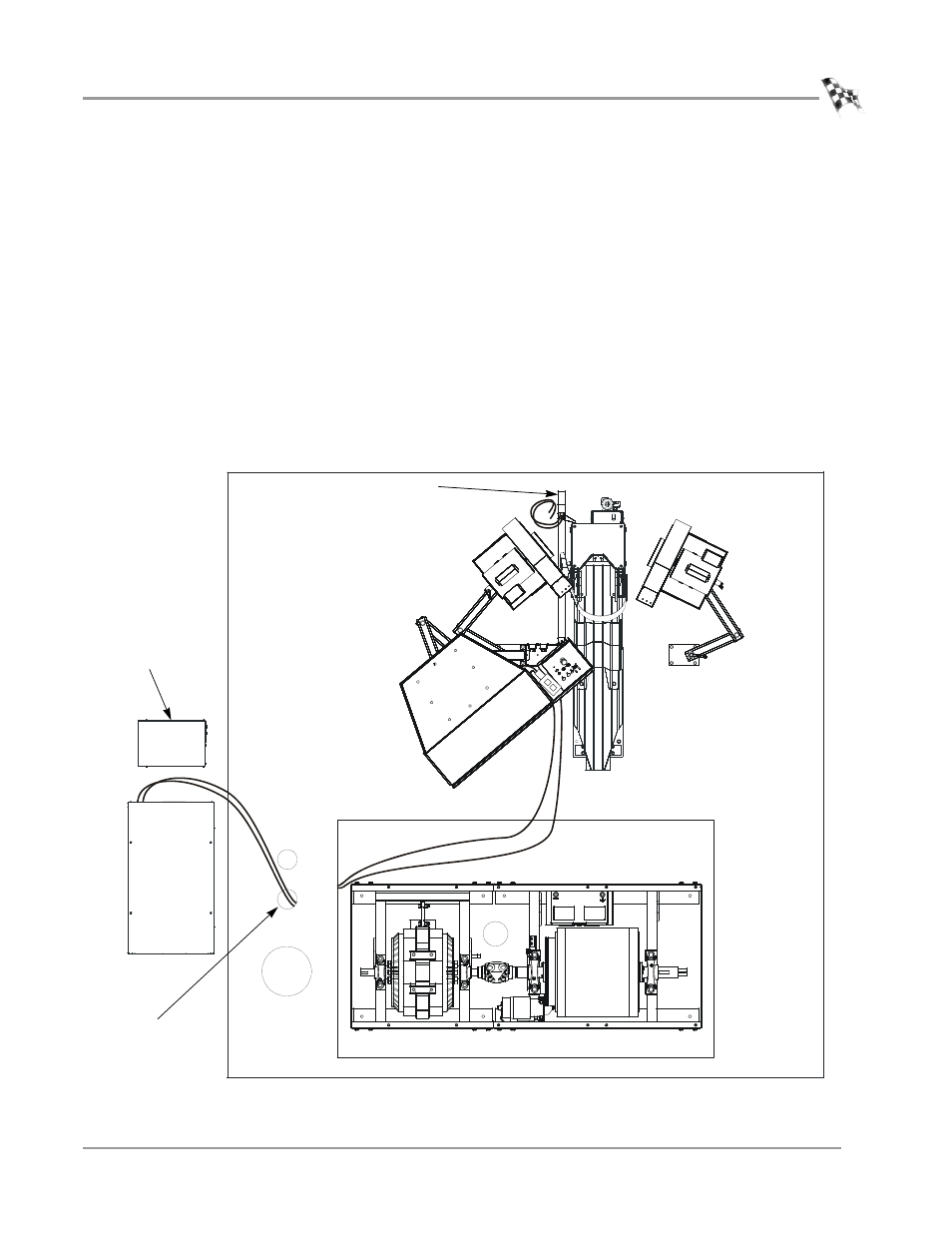

Figure 2-32: Route the Power Carriage and Wheel Clamp Cables
PD168
CPI
dyno
electronics
route power cables
in designated conduit
cable track
