12 Paper and Other Media
242
4

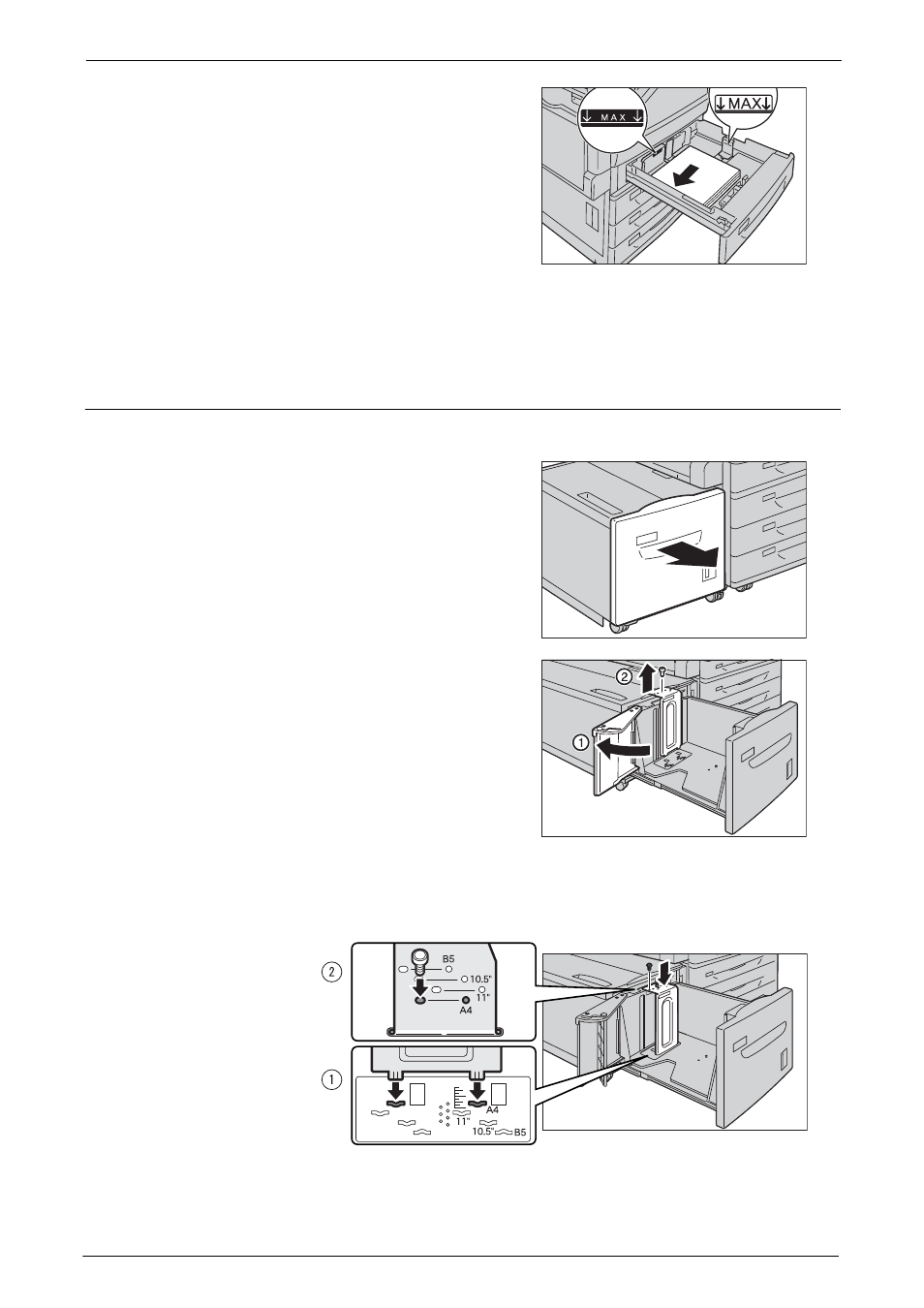

Load and align the edge of the paper against
the left side of the tray, with the side to be
copied or printed on facing up.
Note • Do not load paper above the maximum fill line
("MAX" in the right figure).
5
Push the tray in gently until it stops.
Note • When inserting the tray, push it gently.
Forcibly pushing the tray in may cause
machine malfunction.
• Affix the paper size label to the front of the
paper tray.
For more information on paper type settings, refer to "Changing the Paper Settings" (P.244).
Changing the Paper Size for Tray 6 (HCF B1) (optional)
The following describes how to change paper size in Tray 6 (HCF B1) (optional).
1
Pull out the Tray 6 until it stops.
Note • While the machine is processing a job, do not
pull out the tray that is being used for the job.
• To prevent paper jams or erroneous detection
of loaded paper in a tray by the machine, do
not add paper on top of any remaining paper in
the tray.
2
Remove any paper loaded in the tray.
3
Open the end guide (1) and unscrew the screw
(2). And then remove the guide from the tray.
4
Insert the small protrusions at the bottom of the guide into the holes corresponding to the
paper size (1). Insert the protrusion on the tray into a hole corresponding to the paper size
on the top of the guide, and tighten up the screw (2).
