Paper Jams
685

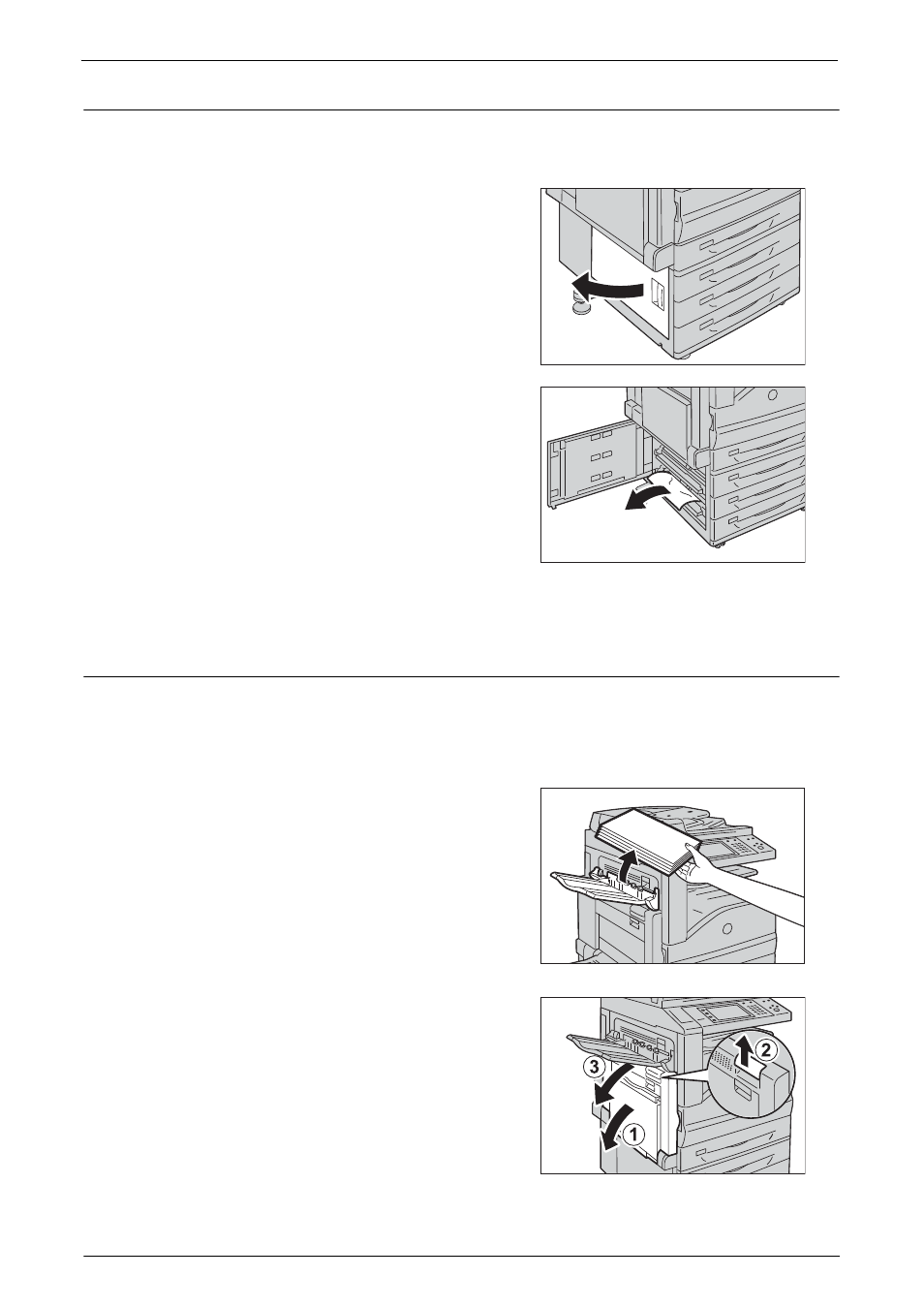

Paper Jams in Bottom Left Cover C
The following describes how to clear paper jams occurring in the bottom left cover.
1
Gently open the bottom left cover while pulling
the release lever.
2
Remove the jammed paper.
Note • Paper may be jammed in the hidden area on
the upper position. Check inside thoroughly.
• If the paper is torn, make sure no piece of
paper remains inside the machine.
3
Close the bottom left cover gently.
Paper Jams in Top Left Cover D
The following describes how to clear paper jams occurring in the top left cover.
Note • Do not touch the black film like Transfer Belt inside the top left cover when you remove the jammed
paper because images might be shifted on the Transfer Belt. If you touch the belt, the image quality
might be deteriorated or the belt may be damaged and need replacement.
1
Remove paper from the Side Tray.
2
Open Tray 5 (1), and then while lifting up the
release lever (2) gently open the upper left
cover (3).
