Bird Technologies

72

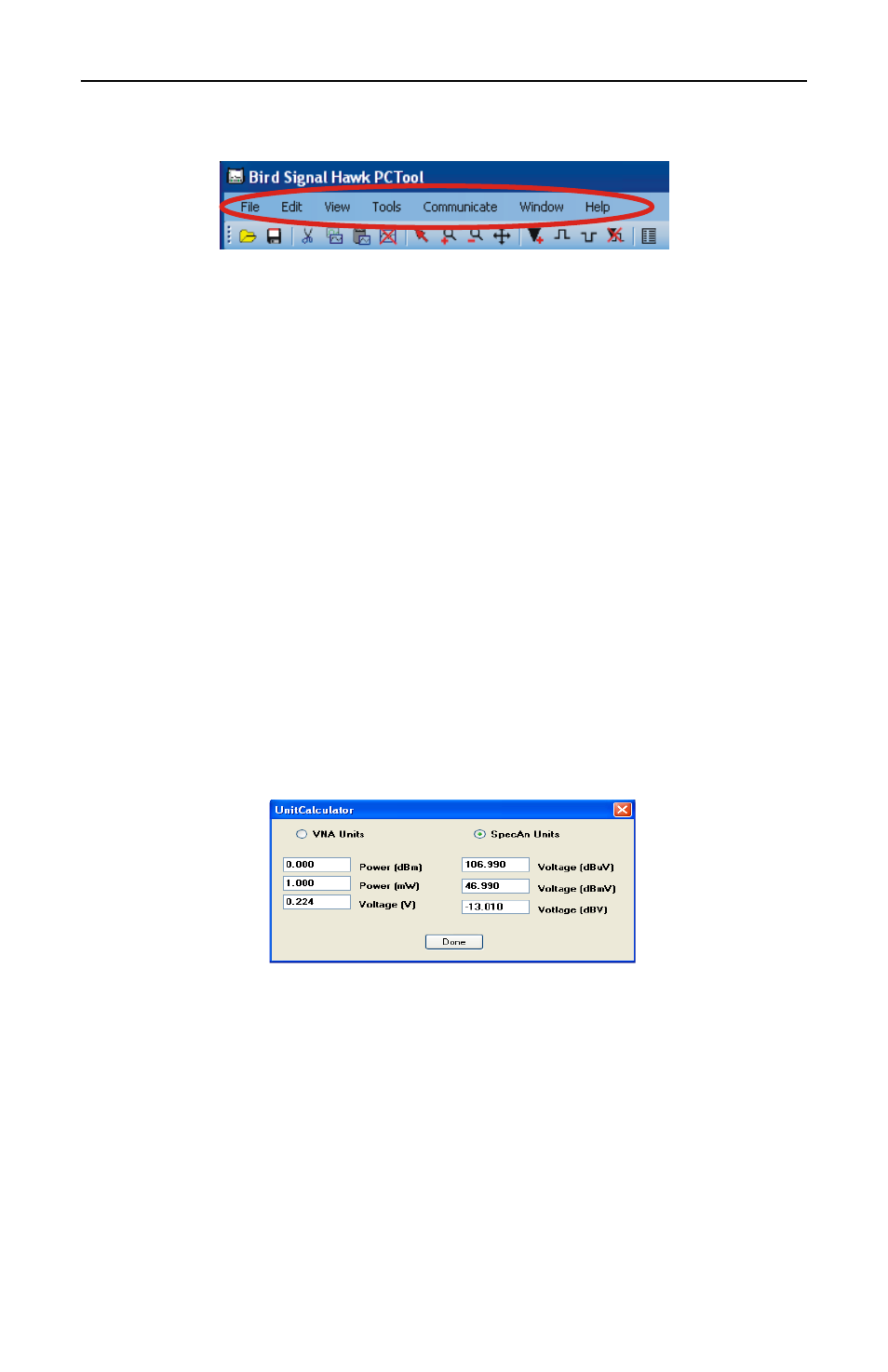

Menu Bar

File
Presents commands to Open, Close, Save, Export, and Print Signal-

Hawk files that are stored on the PC.

Note:

By default, traces will be saved to the “My Traces”, which

is a subfolder under the folder where the PCTool was installed.

Edit
Presents commands to copy the active trace from a graph and paste it

into another graph. Traces can also be deleted from a graph.

Note:

The last trace remaining on a graph cannot be removed.

View
Presents commands to manipulate the trace - Zoom In, Zoom Out, Add,

and Delete Markers or Limit Lines, Autoscale the Trace, Set to Normal

Mode, and Set Options. Normal mode is identified by the standard

Windows “selection” cursor (arrow pointing to the upper left). DTF Set-

tings (Cable Vp & Loss, Start & Stop Distance, etc) can also be viewed.
Tools
Presents access to the units converter.
Figure 52 Units Converter

Measurements

Note:

This option will only appear for VNA traces.

Presents the various measurement types to display the reading. The

types of measurement depend on the type of trace file being read. VNA

files will give Match Measurement, Distance-to-Fault, Cable Loss, and

Smith Chart as options.

Communicate
Presents commands to get files from and/or send files to the SignalHawk. In

addition, use this function to upgrade the SignalHawk software/firmware.
