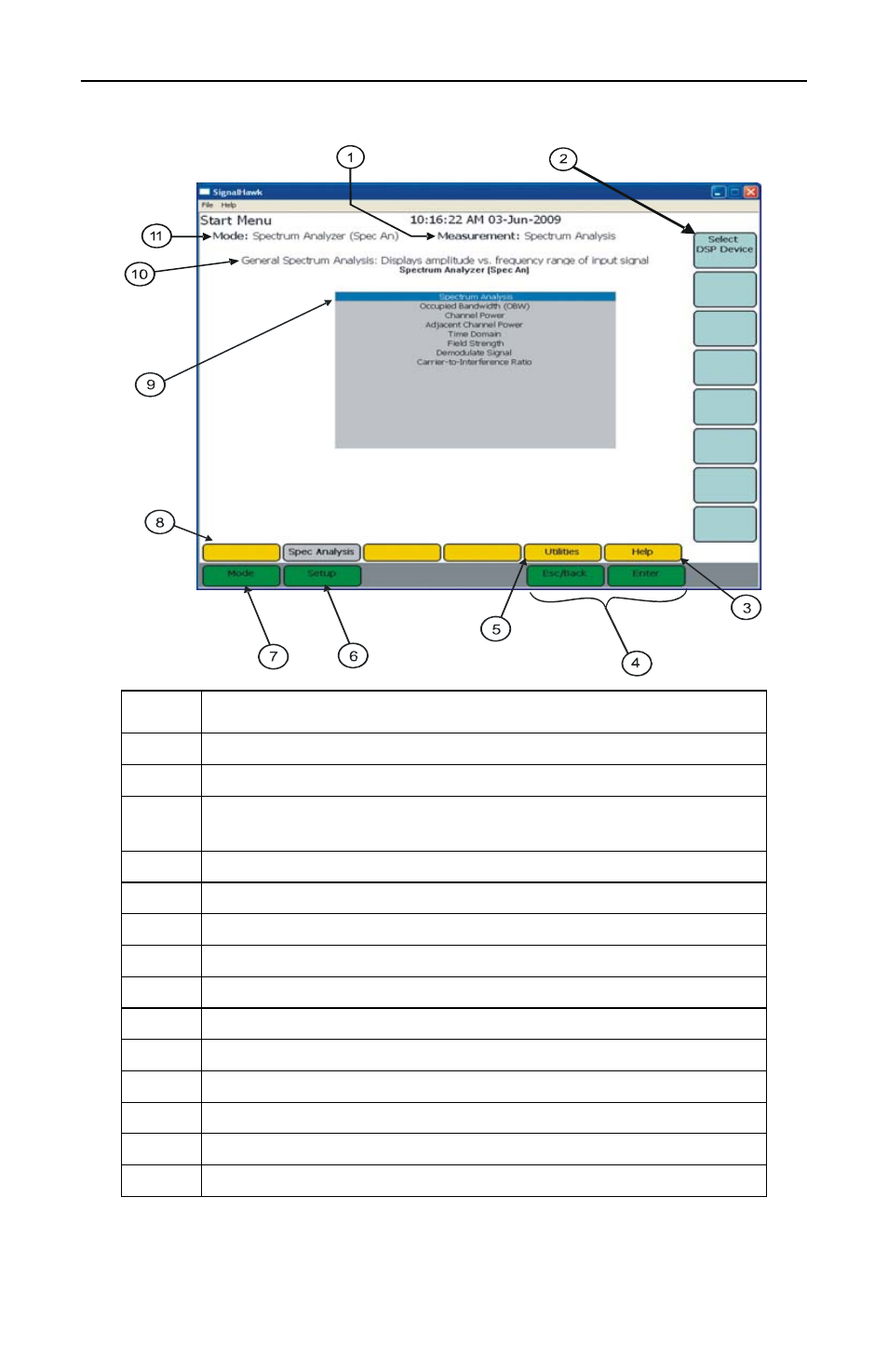

Figure 13 SignalHawk Start Menu - Spectrum Analyzer

Item

Description

1

Name of measurement being used

2

Menu Selection labels

3

Go to the Help menu. Select Esc/Back to return here. There
are two functions in the help menu.

4

Enter goes to a menu. Esc will exit a menu.

5

Go to the Utilities menu. See Chapter 6, page 67.

6

Go to setup screen

7

Go to mode selection screen

8

Menu key labels

9

Selected measurement (highlighted)

10

Name and brief description of highlighted measurement

11

Current active operating mode

--

Mouse scroll wheel will increase values.

--

Keyboard can be used to manually enter values.

--

Function Keys correlate with the selections on side of the display.
