Settings

49

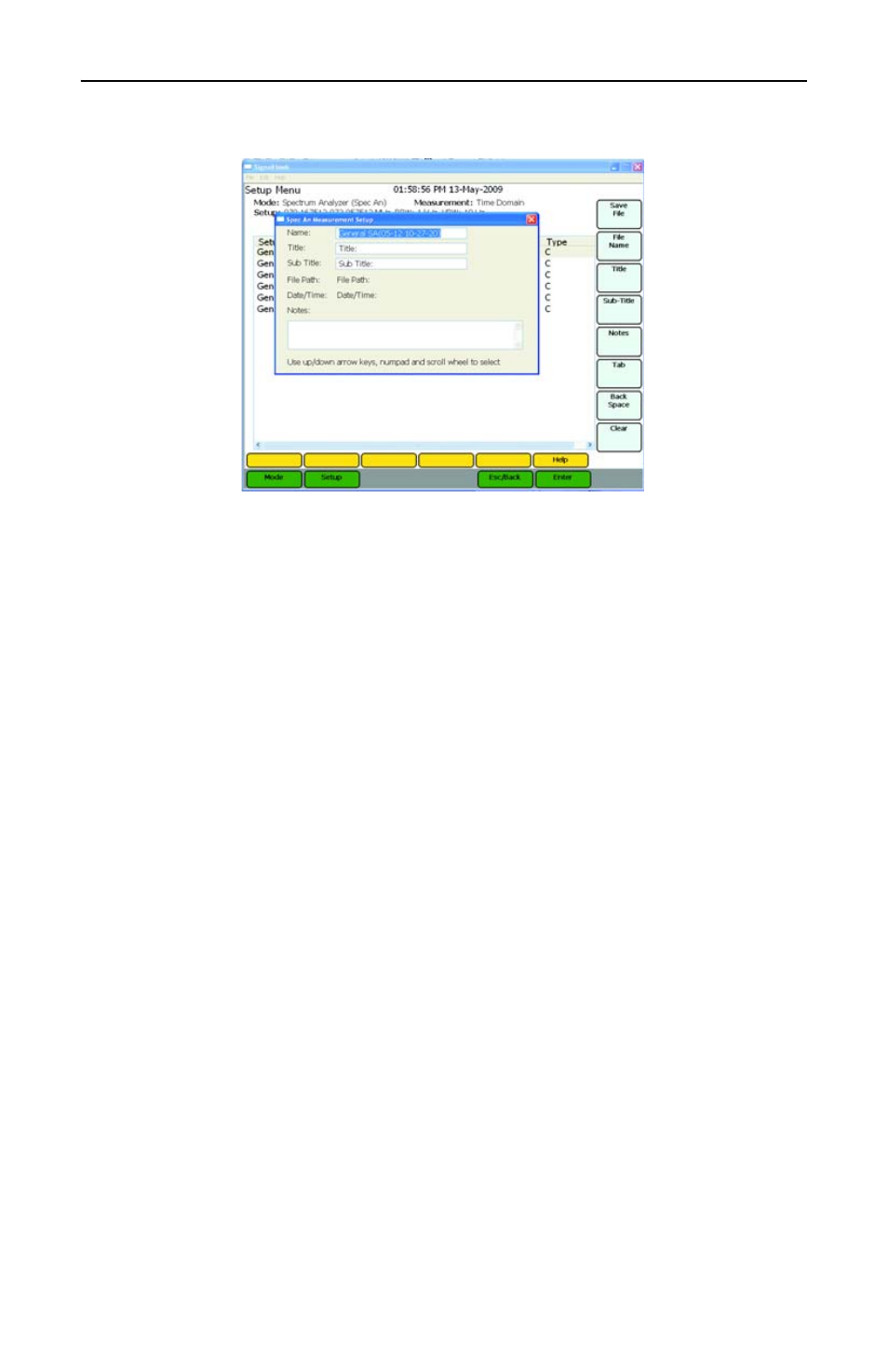

Figure 35 Example, Save Trace

Log Traces
Saves a sweep every 60 seconds and assigns a default name to each save.
Recall Trace
Opens up a submenu with three options:

Recall Trace

Displays a saved trace on the screen.

Recall & Compare

Displays a saved trace overlapping over the current trace on the screen.

Note:

The Saved trace is orange. The current trace is black.

Clear Recalled Trace

Deletes the highlighted trace.

Manage Trace Files
Copy trace files to and from network drives, and delete traces.

Delete Trace

Deletes a selected trace.

Delete All Traces

Deletes all traces in the directory.
Full Screen
Enlarges the graph area to the size of the whole screen. Press escape

to go back to regular screen.

Utility
See “Utility Main Menu” on page 68.
Help
Brings up the menu selections that will enable either the Quick Start

Guide or the User Manual, saved in the unit.
