Settings

41

Ampt & Trace Menu

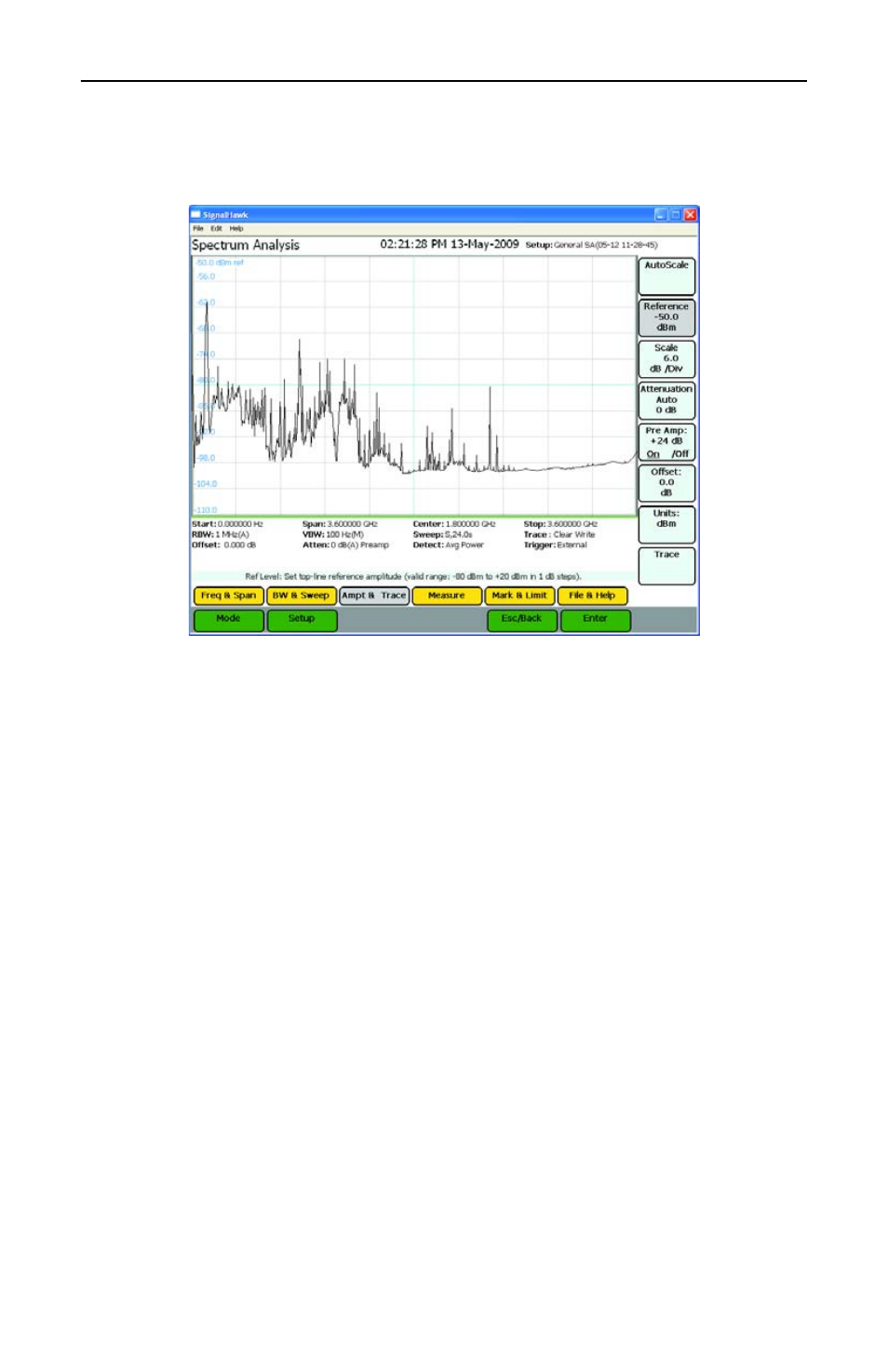

Figure 28 Example, Ampt & Trace Menu

Autoscale

Resizes the graph to fit the whole trace on the screen. This function
will change the reference and scale of a trace.

Reference

Sets the y-axis value at the top of the graph.

Scale

Sets the dB value of each partition of the graph on a scale from 1 to 15.
The graph is partitioned into 10 divisions, giving a set number of dB
per division.

Note:

This soft key is not displayed if the Units of measure

is in Volt or Watt. See “Units” on page 42.

Attenuation

Controls the built-in attenuator on the signal input. This reduces the

amplitude of a high-powered signal. The attenuation can be set to Auto,

or at levels of 0, 10, 20, and 30 dB. The reported value of the signal is

automatically corrected for the selected attenuation.

Note:

When the Reference (see “Reference”) is set to a higher

setting, Attenuation will automatically set itself above this setting.
Example - Reference is set to 25 dBm, Attenuation automati-
cally sets itself to 30 dB and cannot be lowered.
