background image

Bird Technologies

40

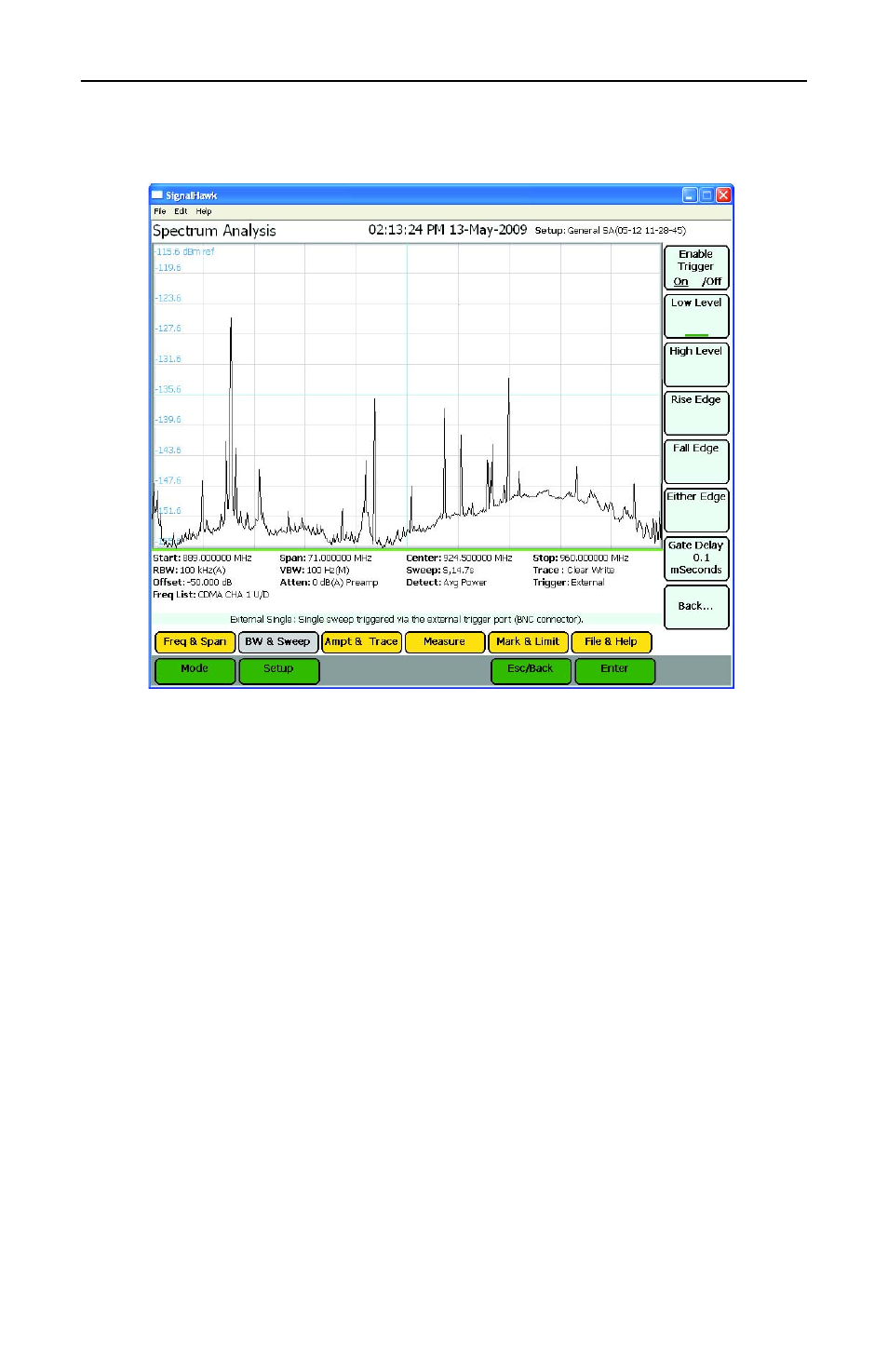

Figure 27 Example, Low Level / High Level /

Rise Edge / Fall Edge / Either Edge

Video

Note:

This can only be used if the Time Domain measure-

ment is enabled. See “Time Domain (Zero Span)” on page 59.

Trigger control and sweeping both happen on the radio frequency
connector. Once a sweep is done, it will be displayed until a trigger
condition occurs again and it performs another sweep. This is used in
zero-span mode.
In order to use this function, the trigger condition needs to be set up:
1. Monitor the RF data to determine the trigger condition.
2. Set the power level at center freq.
3. Set the trigger level:

z

High Level - Trigger if dBm rises ABOVE the power level.

z

Low Level - Trigger if dBm falls BELOW the power level.

z

Pwr Level - Set the power level using the keypad.

4. Enable the trigger.

Gate Delay

Length of wait after the trigger signal and before beginning a sweep
The range is 100 µs to 1 s.
