Measurements

63

Carrier-to-Interference Ratio

Calculates the ratio of the carrier signal power to the power level of

the noise and interference signals.
To determine the ratio, two measurements need be done. First sweep

should be the carrier and interferer. The second sweep should be the

interferer alone.

Note:

Because the transmitted carrier must be turned off

for the second portion of this measurement, access to the trans-

mitter is needed to complete this procedure.

1. Do one of the following:

z

Move marker to the desired frequency.

Note:

The default marker placement assumes the carrier

to be measured is the center of the frequency span. It can be

moved via the arrow keys and/or wheel.

z

Select Marker to Max Peak to quickly identify the signal to be

measured.

2. Measure the carrier signal.
3. Turn off the transmitter.
4. Measure the noise and interference signal levels as follows:

Note:

The carrier power and interferer power will be displayed

in selected power units, and the ratio in dB.

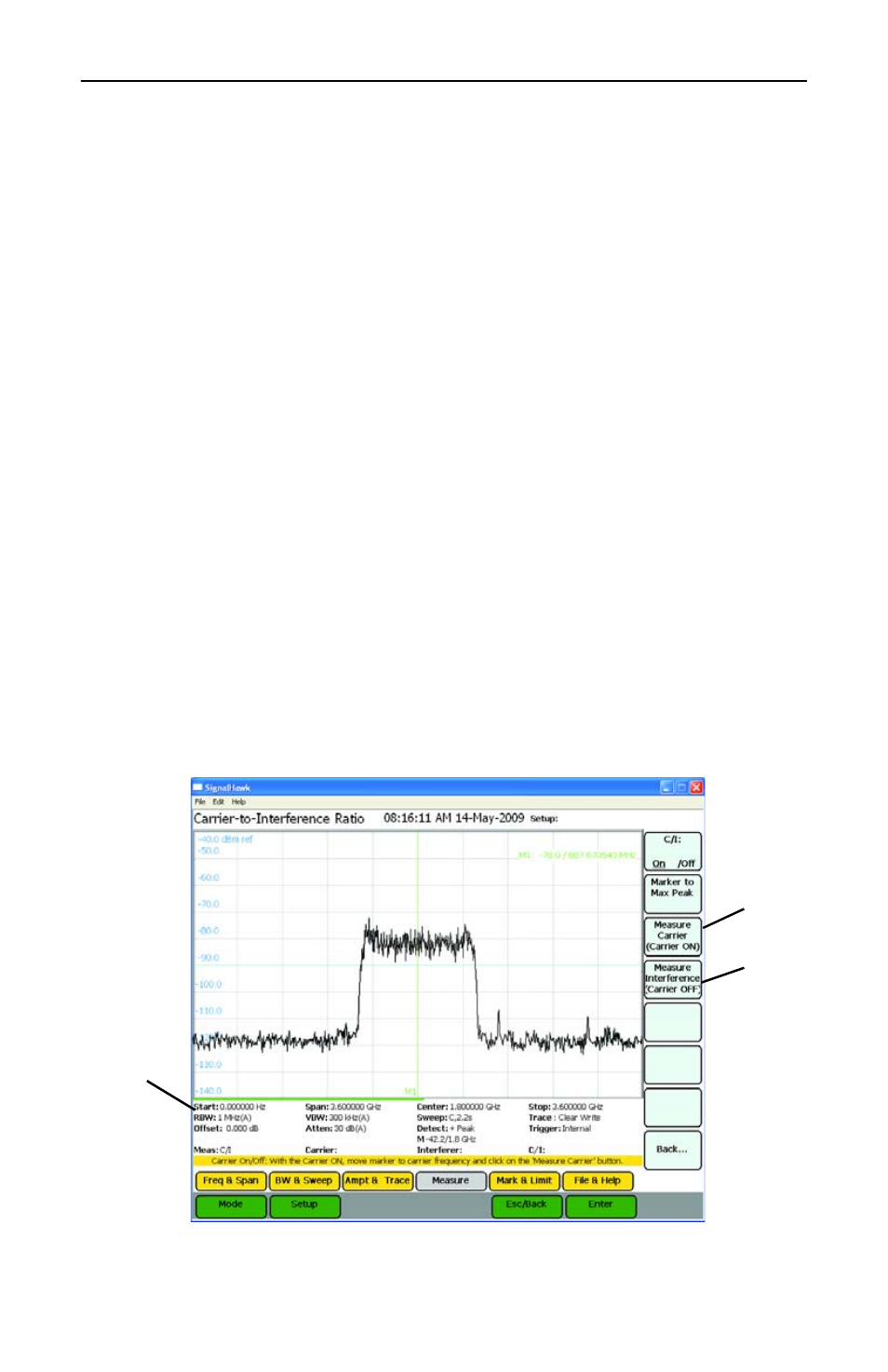

Figure 48 Example, Carrier-to-Interference Ratio - Carrier On

Measurement
Settings

STEP 2

STEP 3

Note:

In the status area, the carrier power, interferer power

will be displayed in selected power units, and the ratio in dB.
