Spectrum Analyzer Quick Start
1. Measure the output power, or signal power, at the system’s test
port using a power meter, service monitor, or equivalent.
Note:
Ensure the output power is less than +20 dBm
(100 mW).
2. Connect the SignalHawk’s “RF Input” connector:
z For low-power connections, connect directly to the output

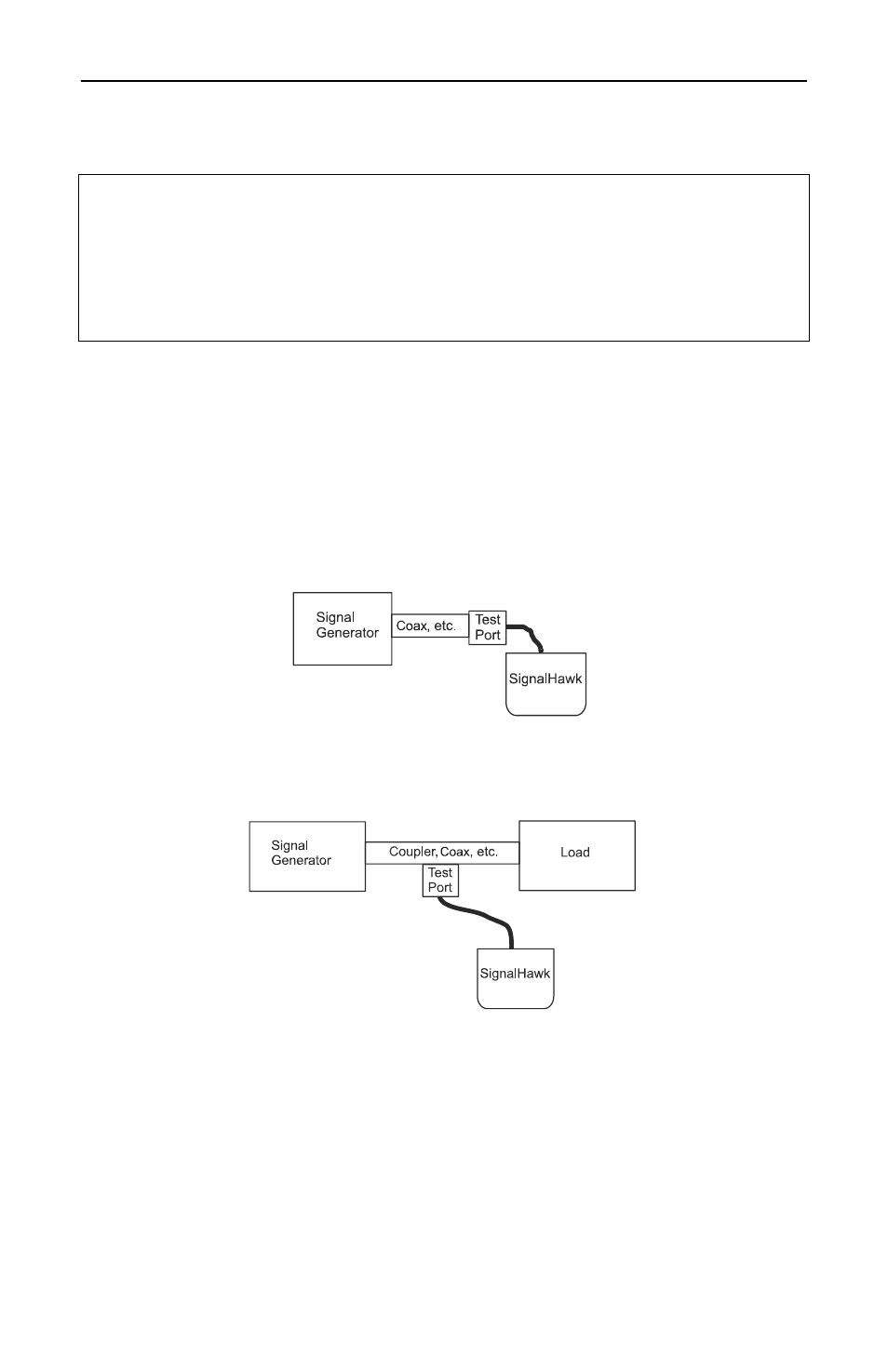

of the signal source. See the below graph:
z For high-power connections, use a directional coupler or
attenuator to reduce the output level of the signal source. See
the below graph:
3. Power up the SignalHawk.
4. In the Start Menu, use the arrow keys to highlight the desired
measurement, and press Enter.
5. In the Freq & Span Menu, set the frequency range (See “Freq &
Span Menu” on page 31).
6. Wait for one sweep, then go into the Amplitude Menu and click on
Autoscale (see “Ampt & Trace Menu” on page 41).
CAUTION
Spectrum Analyzer has a +20 dBm (100 mW) max. RF input.
Exceeding the maximum input will damage the SignalHawk. If
unsure of power levels, measure the test connection with a power
sensor before using the SignalHawk.
