BW & Sweep Menu

The bandwidth menu includes functions that control sweep speed and
accuracy, and has the interface for customizing sweep triggers.
When two signals are separated by a freq distance equal to the Resolu-
tion BW, a 3 dB dip between them will appear on the screen. This is
the minimum resolvable frequency spacing. The menu selections leg-
end displays the current value.

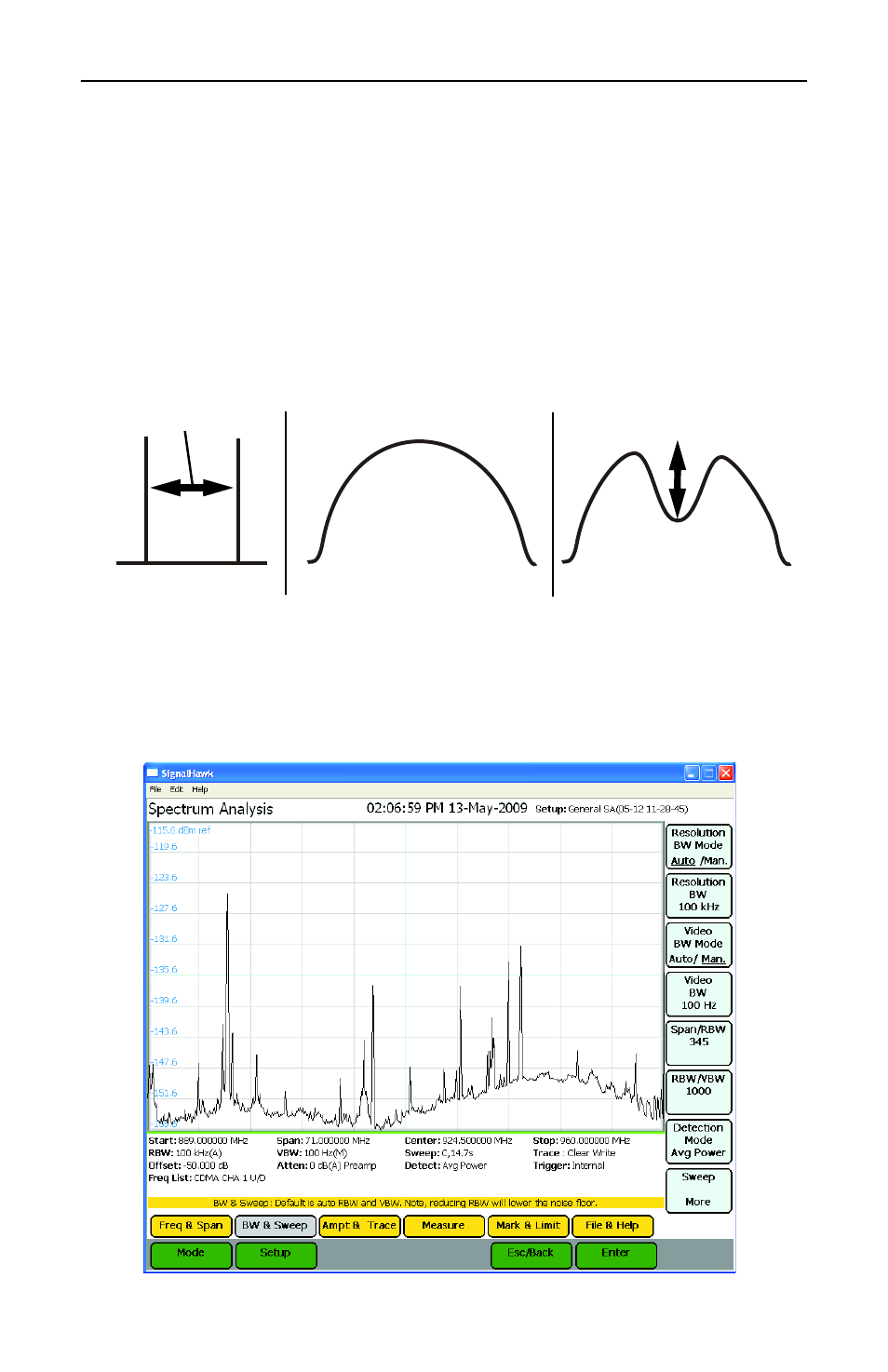

Figure 21 Signal Representation

Lowering the RBW will lower the noise floor, which can make low-
power signals easier to see, and makes readings close to the noise floor
more accurate.

Figure 22 Example, BW & Sweep Menu

Actual Input

RBW > Separation

RBW = Separation

Separation

3 dB
