Bird Technologies

44

Mark & Limit Menu

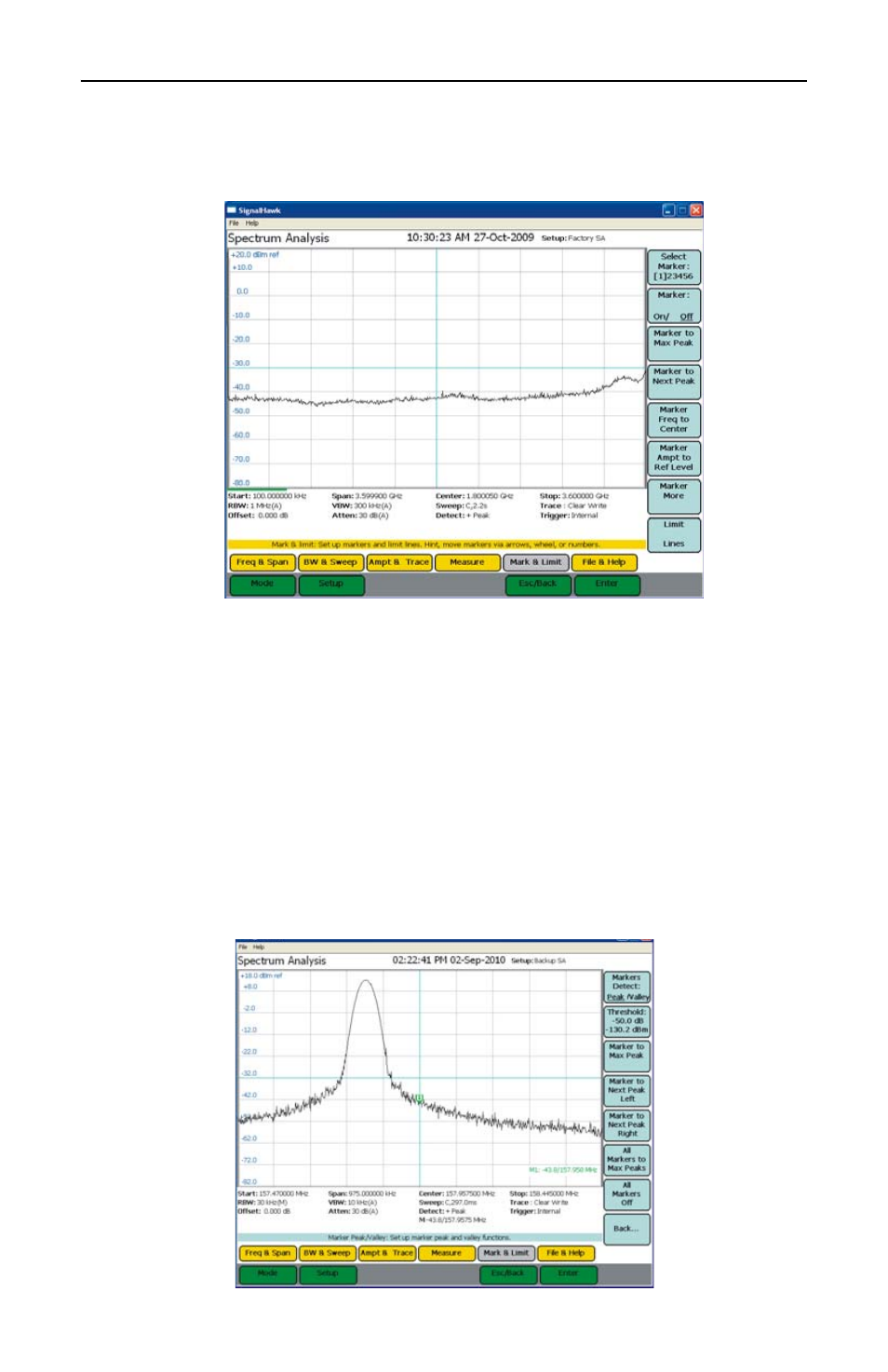

Figure 30 Example, Mark & Limit Menu

Select Marker
Changes the active marker. There are six markers to choose from (measure-

ments that use some of the markers for data display have less selectable

markers). Pressing the soft key will cycle through each of the six markers.

Marker On / Off
Turns a Marker on and off.

Marker to Max Peak
Moves the active marker to the highest point on the trace.

Markers to Peak/Valley

Figure 31 Markers to Peak/Valley
