Settings

43

Min Hold

Holds and displays the lowest point of any given sweep until Min Hold

is turned off.

Average

Displays the running average of multiple readings which is used to

smooth a signal and decrease noise amplitude.

Average Readings

Sets the number of averaged readings. The valid range is from 2 to 1024.

Reset Average

Resets the current running average of multiple readings.

Water Fall Spectrogram

The Water Fall Spectrogram shows how the spectral density of a signal

varies with time and presents it in a visual image. Also known as spec-

tral waterfalls, sonograms, voiceprints, or voicegrams, spectrograms are

used to identify phonetic sounds and specific noise disturbances.
1. Go to the Ampt & Trace menu.
2. Click on the Trace selection.
3. Click on the Water Fall selection.
4. Turn the Water Fall spectrogram on.
5. Select the dual screen display, if desired

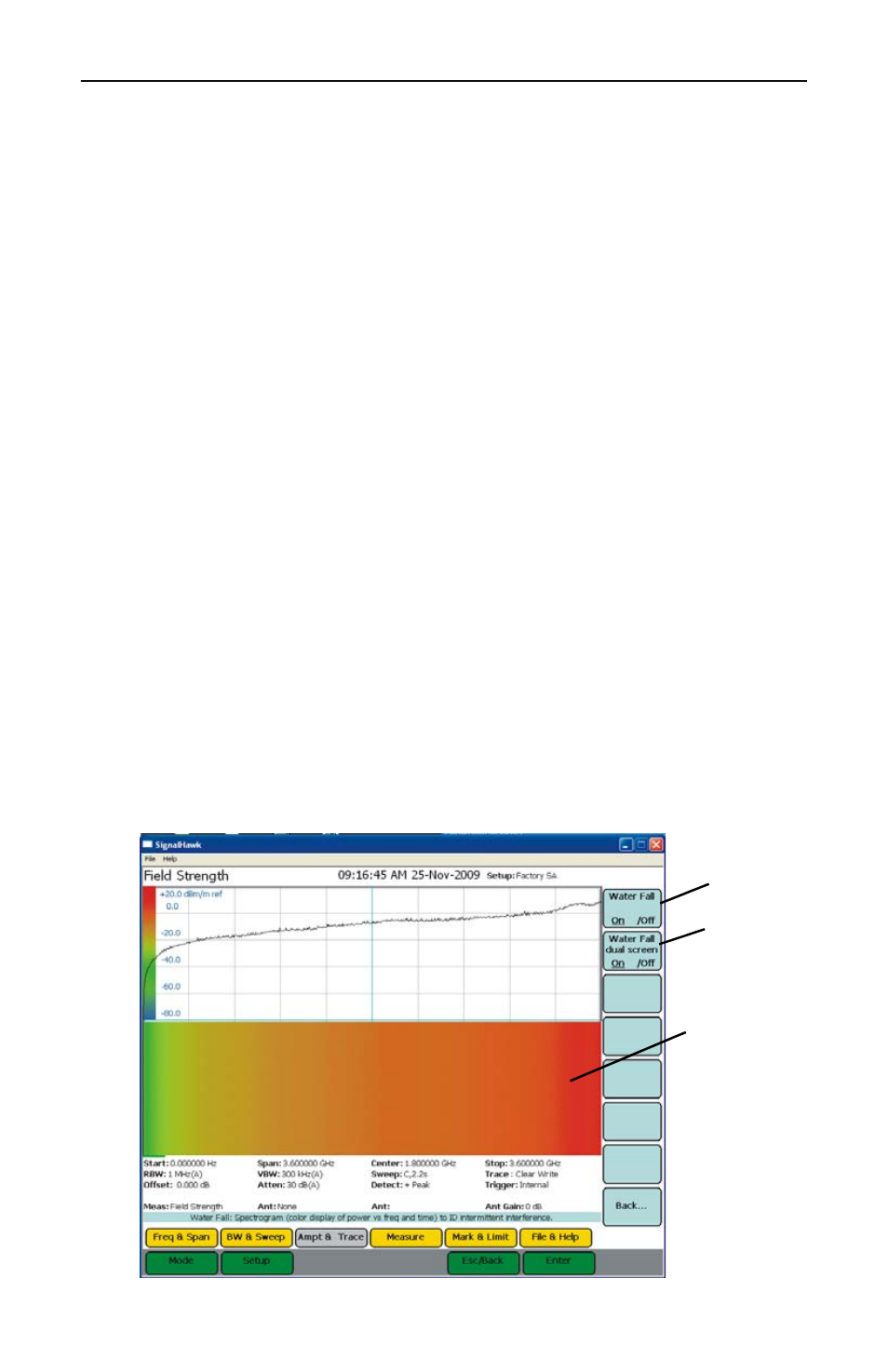

Figure 29 Example, Water Fall Spectrogram

STEP 4

STEP 5

Waterfall
Display
