Introduction

3

Looking at the SignalHawk

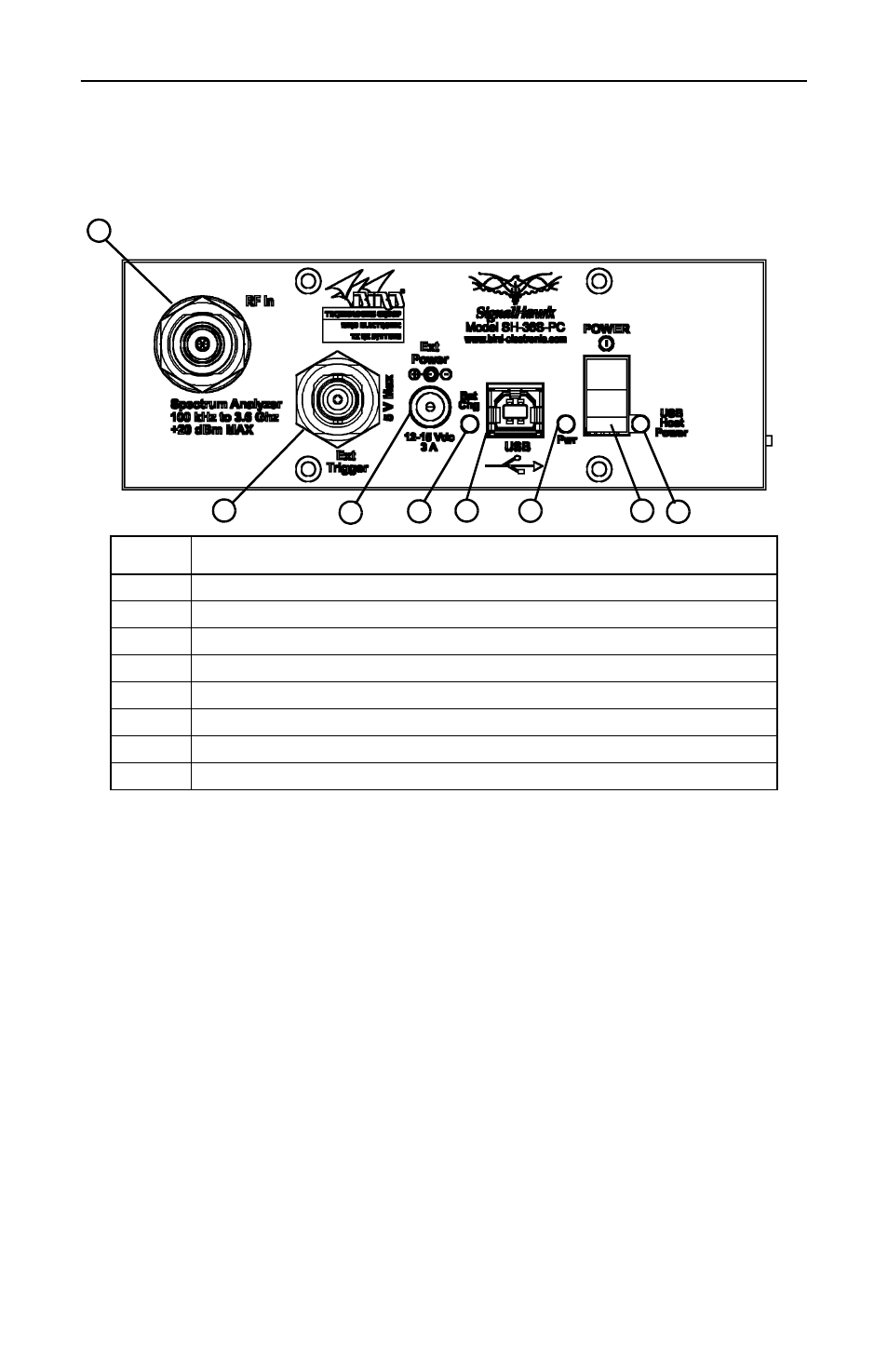

Figure 3 PC SignalHawk Controls and Indicators

Item

Description

1

Spectrum Analyzer Port, N(F) RF input, +20 dBm max.

2

BNC(F) external trigger input, 5V TTL

3

2.1mm DC jack for external power supplies

4

Battery Charge Indicator

5

USB Type B for PC connection

6

Charge Indicator Light

7

Power Switch

8

USB Host Power Indicator

1

2

3

4

5

6

7

8
