FS1-X v1.1 www.aja.com 98
The System screen parameters are identical to those available on the FS1-X front panel.
These include:
• “1 Analog In Format” on page 58
• “2 Component Out Format” on page 58
• “3 Analog Audio Std” on page 58
• “4 SDI1 3G Detect” on page 58
• “5 SDI2 Input Protect” on page 59
• “6 Fiber1 3G Detect” on page 60
• “7 Fiber2 Input Protect” on page 60
• “8 Genlock Source” on page 60
• “9 Output Frame Rates” on page 60
• “10 FRC Enable” on page 60
• “11 NTSC Standard” on page 61
• “12 Composite Downconv” on page 61
• “13 HDMI RGB Range” on page 61
• “14.0 AES/EBU SRC Mode” on page 62
• “15.1 MADI BNC Out” on page 63
• “15.1 MADI Fiber Out” on page 63

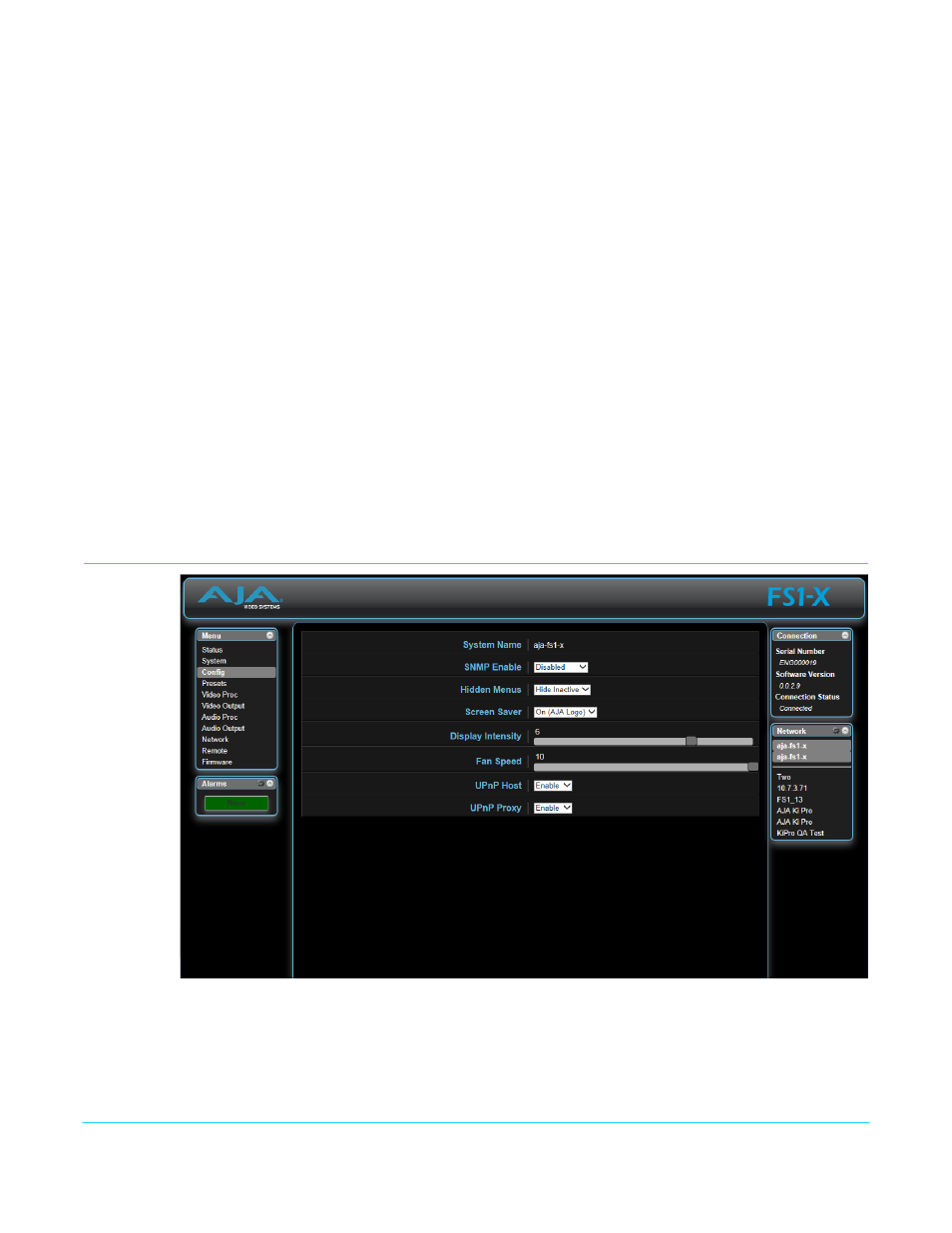

Config Screen
The Config screen includes functions to name the FS1-X, configure SNMP, hide or show
unused menus, change the front panel display brightness and FS1-X fan speed, and
configure UPnP.
