FS1-X v1.1

www.aja.com

37

Stand Alone Tests

The stand alone tests can be performed without a computer, using the FS1-X front panel
controls and rear connections.

The following procedures assume the FS1-X is at factory defaults (taken from a newly
opened box). If not set to defaults, the FS1-X may behave differently.

First Power Up

The following workflow powers up the FS1-X and demonstrates some example alarms.

Setup

• Ensure the FS1-X is completely disconnected (all video, audio, network, and power

connector ports are empty).

Procedure

1. Connect both FS1-X power cords to mains AC and allow time for the unit to boot up.

Observe the front panel LEDs.

• If the FRC PRES LED lights blue, your FS1-X is equipped with the FRC option and is

able to operate in either 1 Channel or 2 Channel Mode. If this LED is off, your unit
can only operate in 2 Channel mode.

• The ALARM LED will light red, indicating an alarm condition, and the REF LED will

be off. By default the F1-X is configured to operate genlocked to an external
reference signal.

2. Press the front panel STATUS button, then turn the SELECT knob to view various

Status menus.

• The Status menus will report No Input for the Video Processor video inputs (the

ports are disconnected), and the GEN (Genlock) parameter will report Ref
(configured for external reference) but will also report No Input or No Ref.

3. Connect a 525i color black reference signal to one of the FS1-X Ref Loop BNCs.

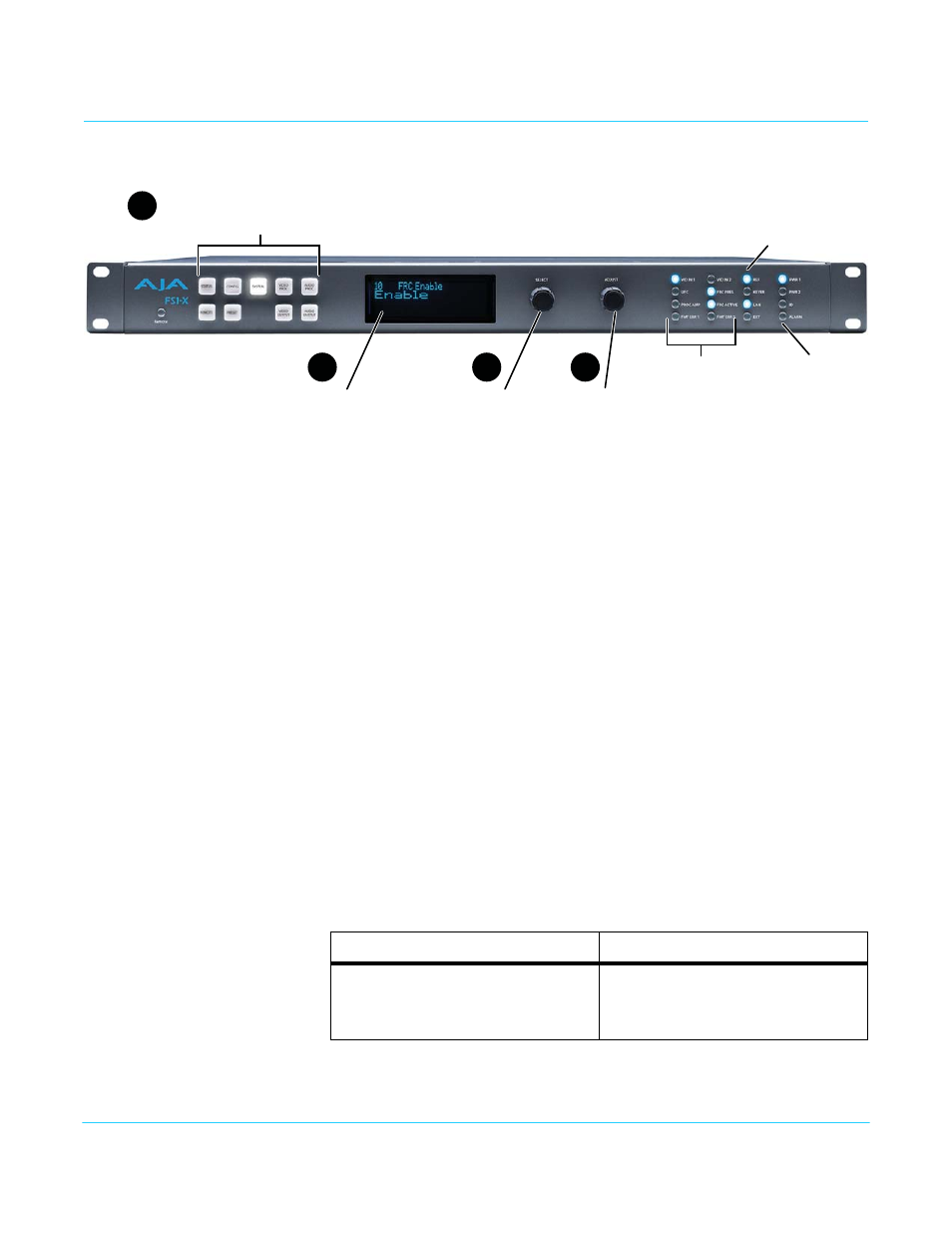

Activity

Indicators:

VID In 1/2

UFC, Proc Amp,

FRC Present,

FRC Active

FMT ERR 1/2

Power and

Status Indicators:

Pwr 1
Pwr 2

ID

Alarm

Alphanumeric Display:
Line 1=Parameter
Line 2=Parameter value
Line 3=Status/Legend
Line 4=Status/Legend

Select knob:

Scrolls and

selects menus;

Push to undo

changes.

Adjust knob:

Changes

selected value;

Hold down for

default value.

Menu Group Selection Buttons:

Press a button to select

a Menu Group in the display

3

4

Status Indicators:

Ref, Keyer, LAN, EXT

1

2

Vid 1 Format Status screen

Vid 1 Format Alarm Status screen

IN1

SDI 1

No Input

BKGD

Black

GEN

Ref

No Input

OUT1

525i59

IN1

SDI 1

OK

BKGD

Black

GEN

Ref

No Ref

OUT1

525i59
