FS1-X v1.1

www.aja.com

105

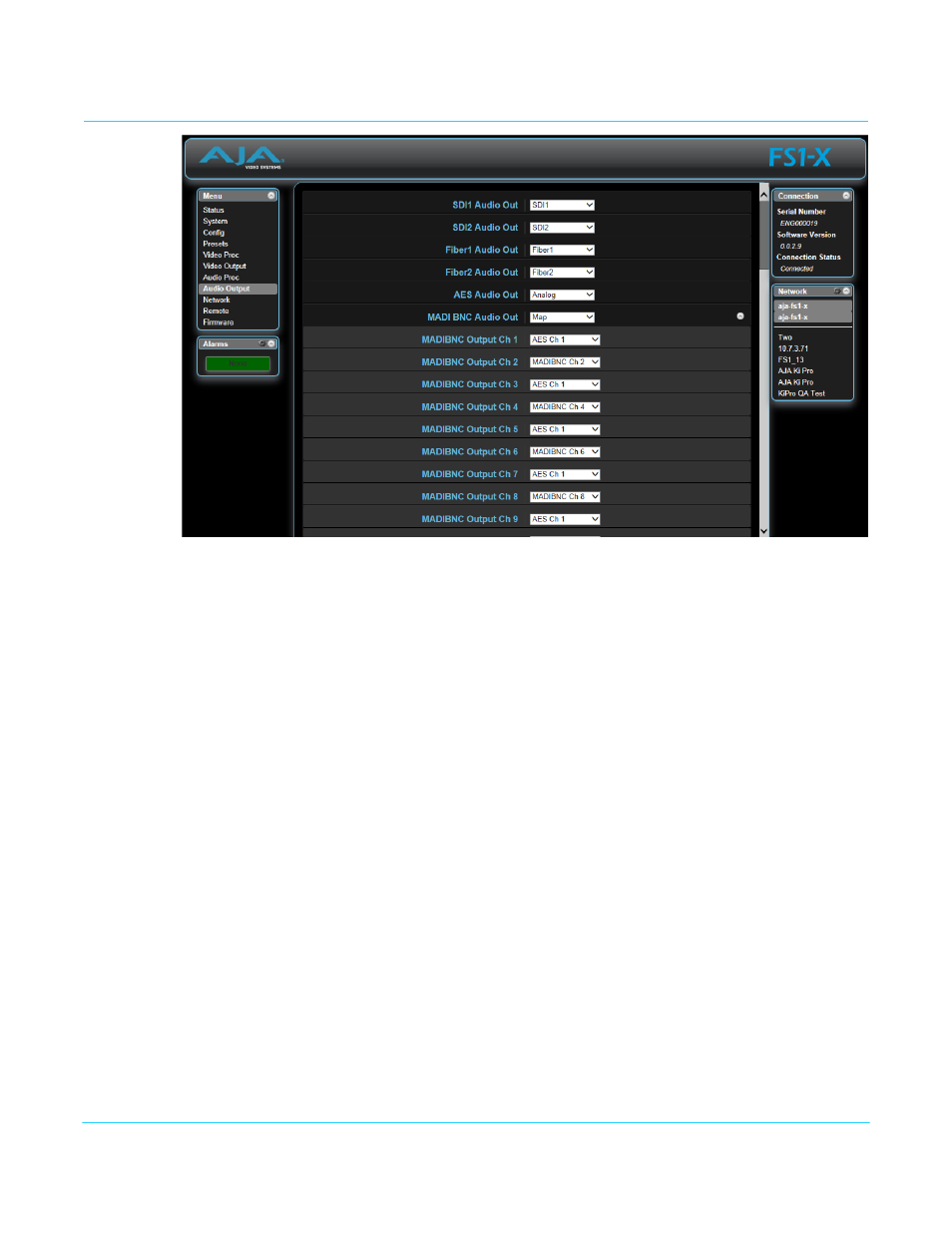

Audio Output Screen

The Audio Output browser screen displays the controls used for audio routing. Any audio
input can be routed to any output, including embedded audio.

The parameters available on the Audio Proc browser screens are essentially identical to
the front panel display menus. The only difference is parameters are set using webpage
controls (drop down menus) instead of control knobs.

NOTE:

On the web browser, Selecting Map for any Output will apply whatever individual mappings
were previously set for that item, and brings up individual sub-menu controls, to allow
making changes to those settings. The sub-menus are a lighter gray color and have a
collapse/expand button on the parent selection. This lets you collapse the sub-menus to make
it easier to navigate the menu while configuring the system. The collapsed setting only stays
in effect until the user reconnects or refreshes the browser.

Descriptions of these parameters are accessible using the following cross references:

“1.0 SDI1 Audio Out” on page 87

NOTE:

The same basic adjustment procedures for SDI Audio Out are also used for Fiber, AES, MADI,
and HDMI audio routing.

“11 Global Output” on page 89

“12 Reset Mapped Output” on page 89
